4PCS Human Scale Load Cell Weight Sensors + HX711 AD Module Weight Sensor Electronic Scale Weighing Pressure Sensor DIY Kit

Sensors>>>Electronic Components & Supplies

Brand Name Eiechip

Origin CN(Origin)

Usage Pressure Sensor

Material Metal

Type Acceleration Sensor

Output Digital Sensor

Theory Resistance Sensor

Model Number Load Cell 50KG + HX711 AD Module

is_customized Yes

1 50KG Human Scale

2 Weight Sensor HX711

3 Body Load Cell Weighing Sensor

4 zhiting digital weighing sensor hx711

5 hx711

6 Tension sensor

7 load cell body

8 hx711 metal

9 hx711 200kg

Ships From

China

SPAIN

Russian Federation

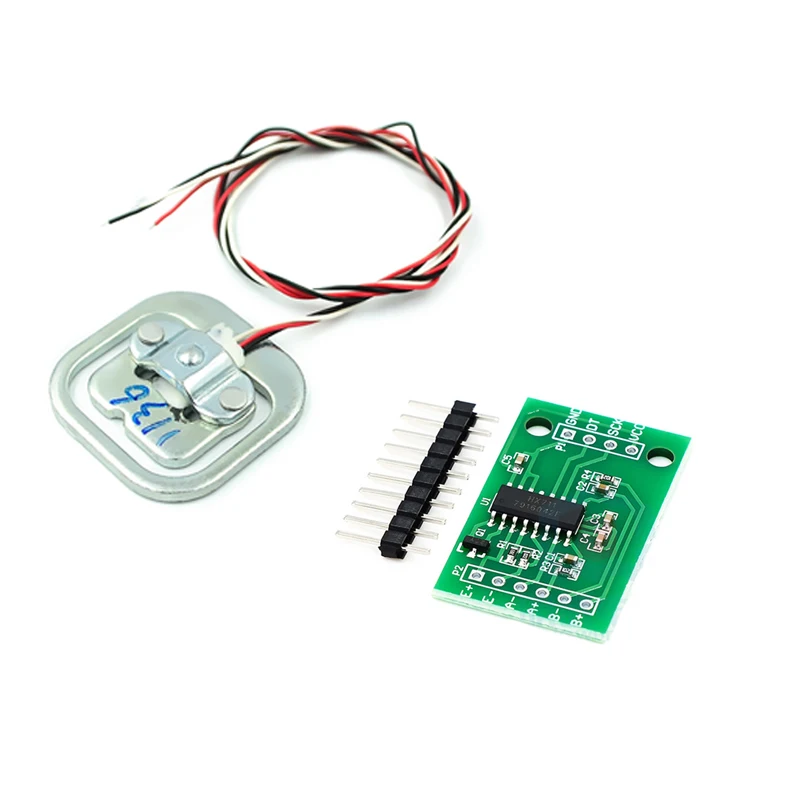

4pcs 50KG Human Scale Body Load Cell Resistance Strain Weight Sensor + HX711 Module Pressure Sensors Measurement Load Cell

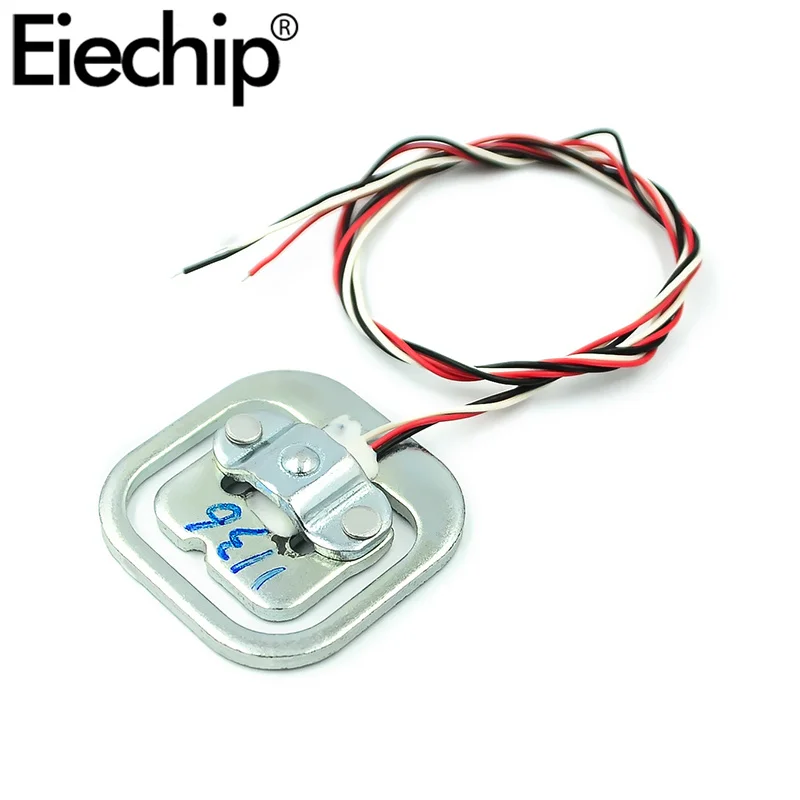

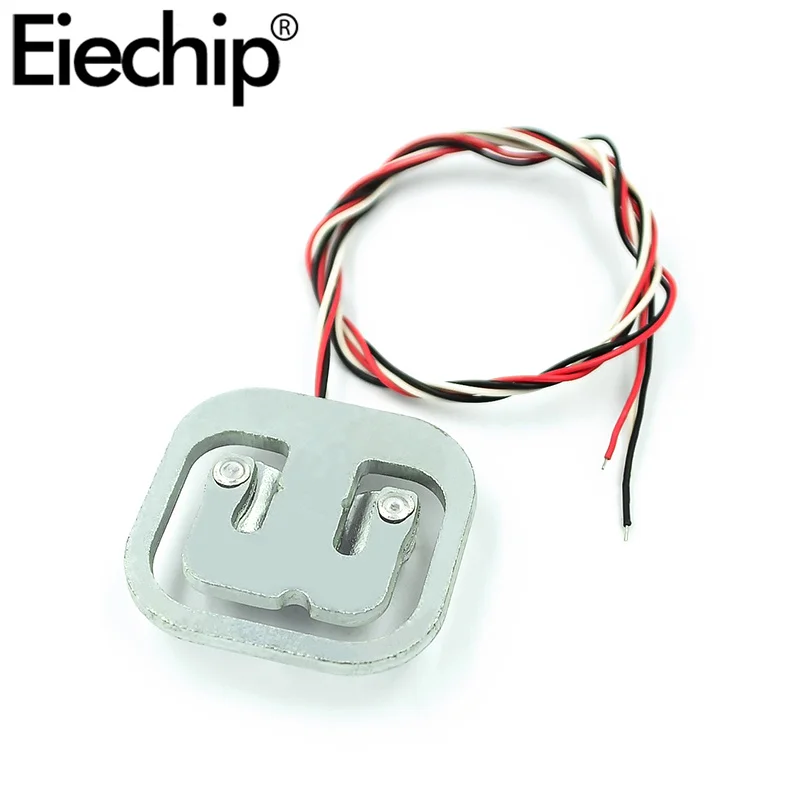

Features:This Load Sensor, Sometimes Called A Strain Gauge, Is The Same One Found In Digital Bathroom Scales.The Sensor Is A Group Of Half-bridge Strain Gauge.Fine Workmanship And Good Performance.Easy To Use. Long Service Life.3 Ways To Use It:1. Use One Sensor With An External Resistor To Form A Full-bridge Measurement, The Range Of A Sensor Range: 50kg. External Resistance On The Higher Requirements.2. Use Two Sensors To Form A Full-bridge Measurement, Measuring Range For The Sum Of The Two Sensors: 50kgx2=100kg.3. Use Four Sensors To Form A Full-bridge Measurement, Measuring Range For The Sum Of Four Sensors: 50kgx4=200kg.

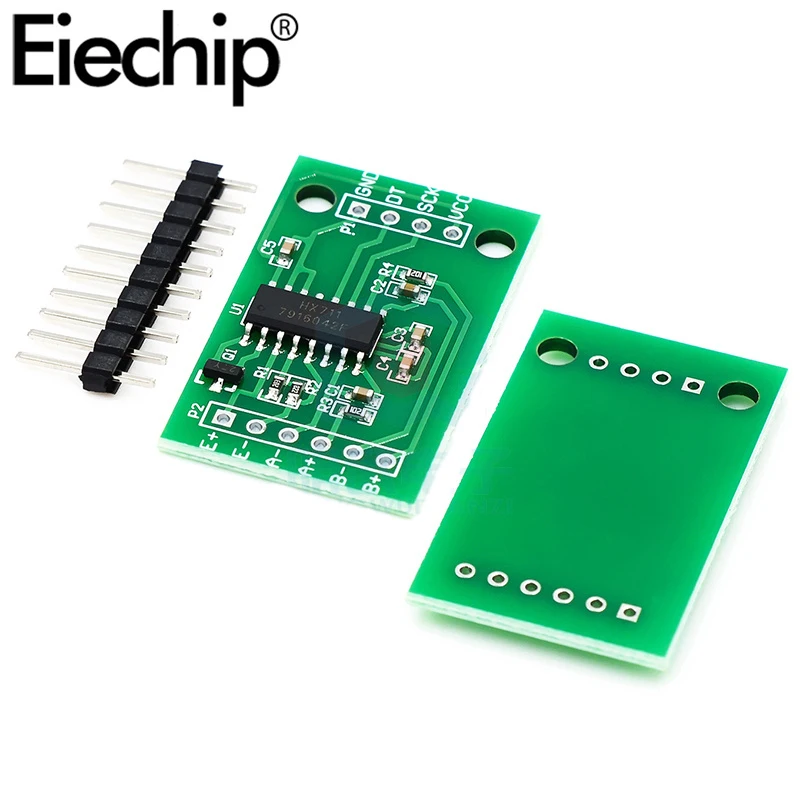

HX711 AD Module

The 24-bit high-precision A/D converter chip HX711 is designed for high-precision electronic scales. It has two analog channel inputs and an internal integrated 128 times gain programmable amplifier. The input circuit can be configured to provide bridge voltage (such as pressure, weighing) sensor mode, is an ideal high-precision, low-cost sampling front-end module.

Specification:Material: Plastic & Metal & Pcb BoardDimensions: 3.4x3.4cm/1.34x1.34inchPackage Includes:4 X 50kg Human Scale Load Cell1 X Hx711 Ad Module1 X 10pin Needle
