Dimmers>>>Lights & Lighting
Brand Name MOES
Origin CN(Origin)
Material Plastic
Warranty 2 Years
Model Number Smart Switch Module
Max. Load Power 200W
Certification CCC
Certification ce
Certification FCC
Certification ROHS
Voltage 90-250V AC 50-60Hz
Wiring Live wire and Neutral wire
App Name Tuya Smart/Smart Life
Voice control Amazon Alexa/Echo/Google home
Work Life 100,000 times for operation
Operation temp -10 Celsius - +40 Celsius
Operation range less than or equal to 200 m
IP rating IP20
Color
Ships From
China
United States
SPAIN
Russian Federation
Belgium

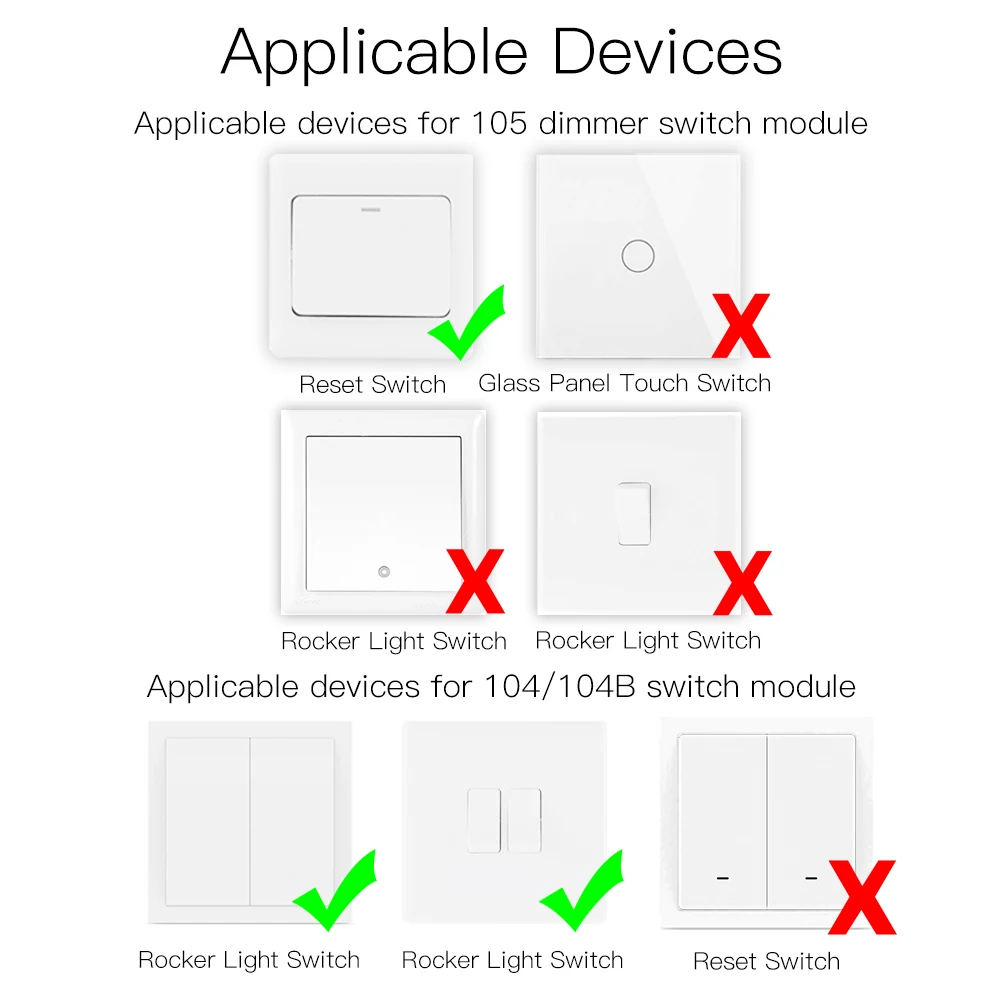

DIY WiFi Smart 1/2 Way 1/2 Gang Light Relay Module Dimmer Breaker Switch /Switch Module Smart Life/Tuya APP Wireless Remote Control Work with Alexa Google HomeBy MoesProsuct Features:1.Easy replace your traditional light switch or dimmer switch to make it smart,can make your exist 1/2 way switch smart also,just install 1 DIY smart switch module,or dimmer switch module,suit for EU/UK switch box,please confirm the size before order.
2.0%-100% Dimmable for the dimmer switch module: Adjust the Brightness Via Your Voice Assistant like Amazon Alexa Google Home or your mobile phone
3.Wi-Fi control via your mobile phone 2.4G Networks provides the needed connection to the DIY Switch Switch Module without the need of a separate HUB.
5.Use popular"Smart life/Tuya"Android / IOs app Versatile APP Allows for Full Control of Your Lights or Compatible Appliances. Multiple Program Options Allow You to Plan the Exact Time to Turn Lights On/Off Automatically.
6.Give your devices the ultimate power on/off smart makeover,Simply Wire this Do-It-Yourself Module between your Device and Power Source to convert most Compatible Products to a Smart one.

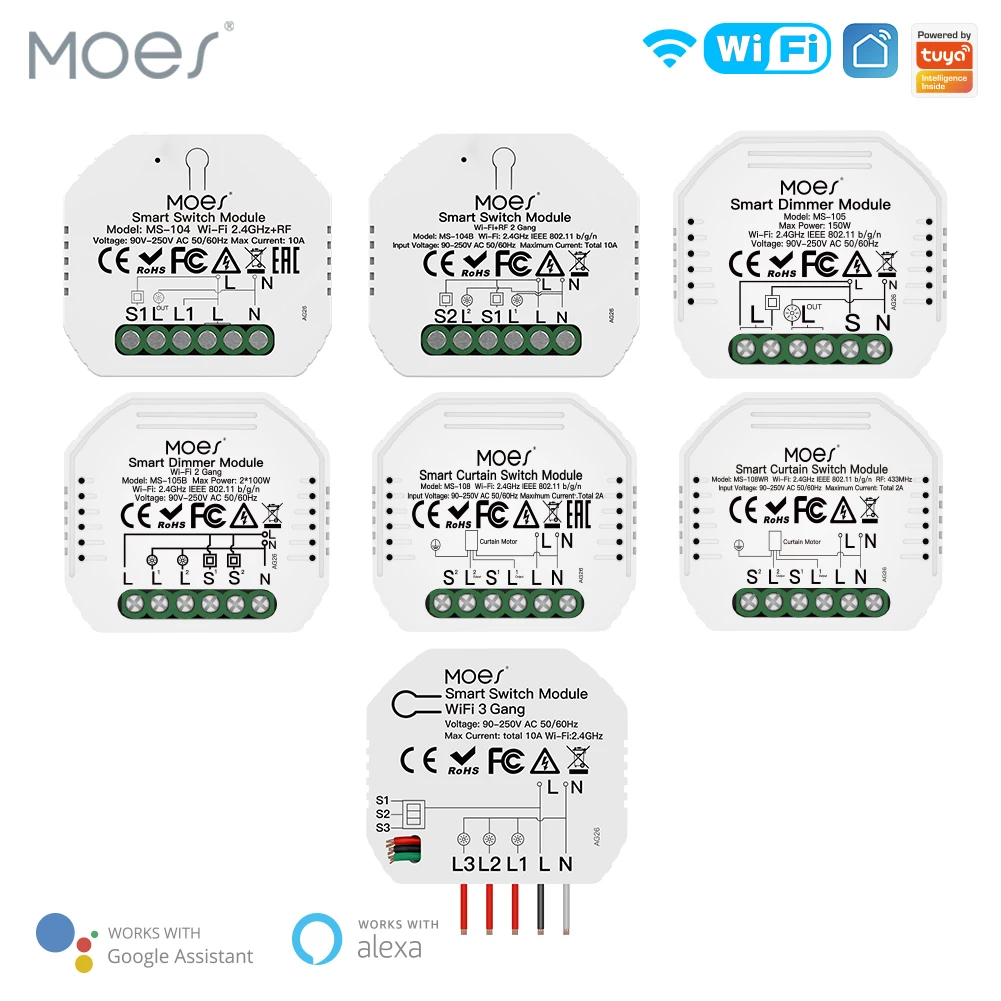

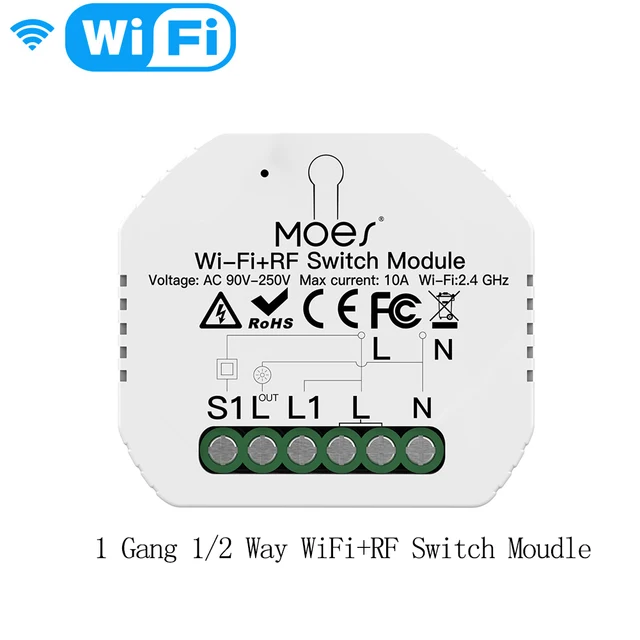

Main Specificaton:MS-104:1 Gang 1/2 Way Switch Module
Input Voltage : 90V~250V / 50Hz
Wiring : Live wire and Neutral wire
Max. Load Power : 2300W
WiFi Standard : 2.4GHz 802.11 b/g/n
App Name : Tuya Smart/Smart Life
Work Life : 100,000 times for operation

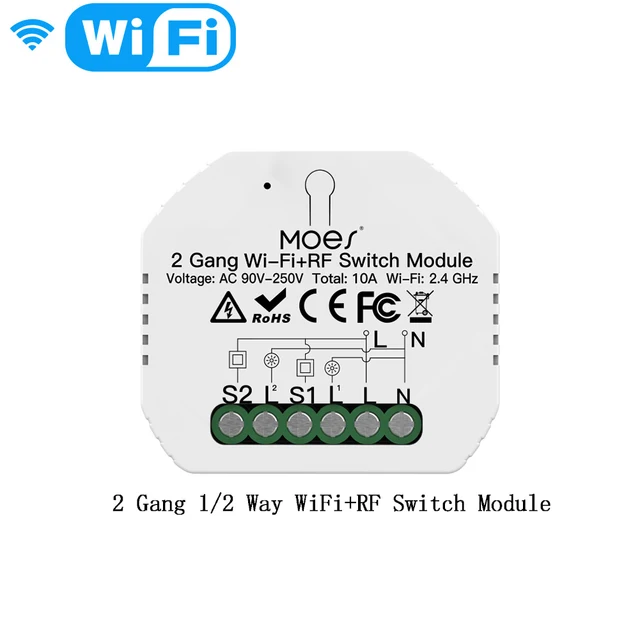

MS-104B:2 Gang 1/2 Way Switch ModuleProduct type:2 Gang Wi-Fi Switch Module
Voltage:90-250V AC 50-60Hz
Current:2*5A
Max. Load:2*1150W / 2*150W for LED lamp
WiFi frequency:2.4GHz - 2.4835GHz WIFI
Operation temp.:-10 Celsius - +40 Celsius
Case temp.:Tc: +80 Celsius (Max.)
Operation range:less than or equal to 200 m

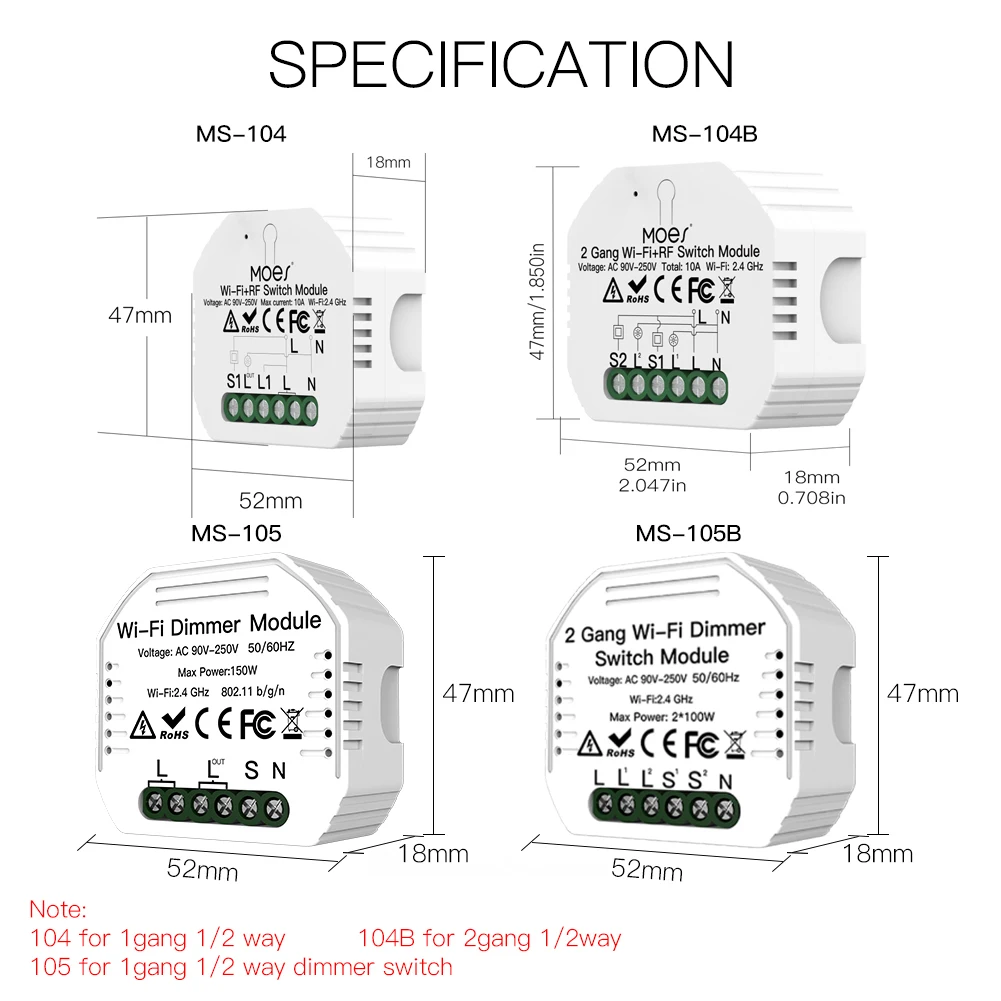

Dims (WxDxH):46x46x18mm(without clip)
IP rating:IP20
Warranty:3 years
App:Smart life/Tuya

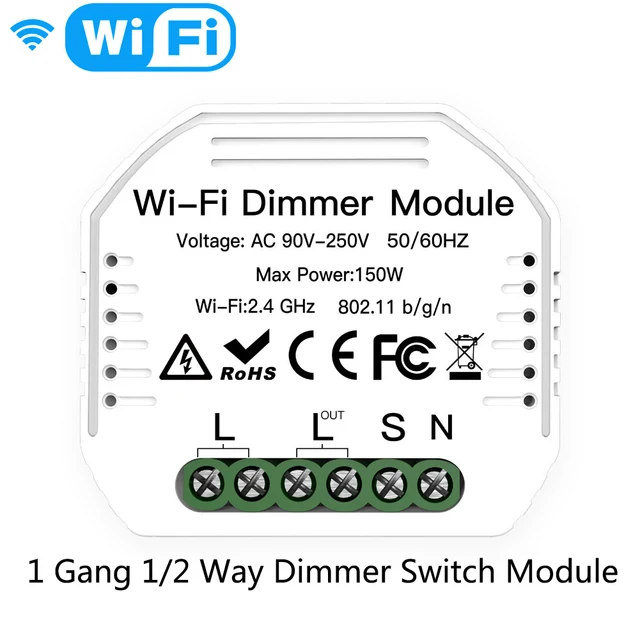

Voice control:Amazon Alexa/Echo/Google homeMS-105: 1 Gang 1/2 Way Dimmer Switch ModuleInput Voltage : 90V~250V
Wiring : Live wire and Neutral wire
Max. Load Power : 150W(LED)
WiFi Standard : 2.4GHz 802.11 b/g/n
App Name : Tuya Smart/Smart Life
Work Life : 100,000 times for operation

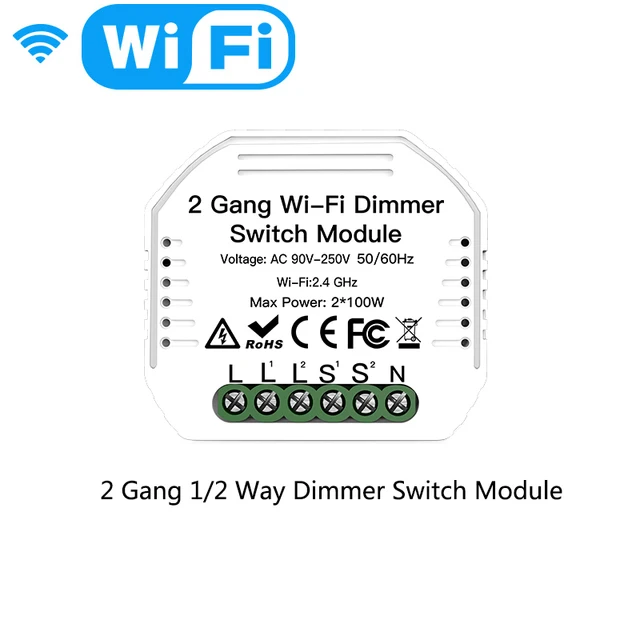

MS-105B: 2 Gang 1/2 Way Dimmer Switch ModuleInput Voltage:90V~250V AC 50Hz/60HzMax. Load Power:2*100WWiFi Frequency:2.4GHz-2.4835GHzOperation Range:Less than or equal to 200mIP Rating:IP20Case temp.:Tc: +80 Celsius (Max.)Warranty:3 years
Q&A:
Q1:What should I do if I can't configure this switch module?
a:Please check whether device is powered on.
b:Make sure your mobile and switch module are under the same 2.4Ghz WIFI network.
c:Whether it's in good internet conditions.
d:Make sure the password entered in App is correct.
e:Make sure the wiring is correct.
Q2:Which products can I control with the device?
A.You can control all type of lights,and electrical products in accordance with the device specifications.
Q3:What happens if the WIFI goes off?
A.You can still control the device connected the switch module with your traditional switch and once WIFI is active again the device connected to module will connect automatically to your WIFI network.
