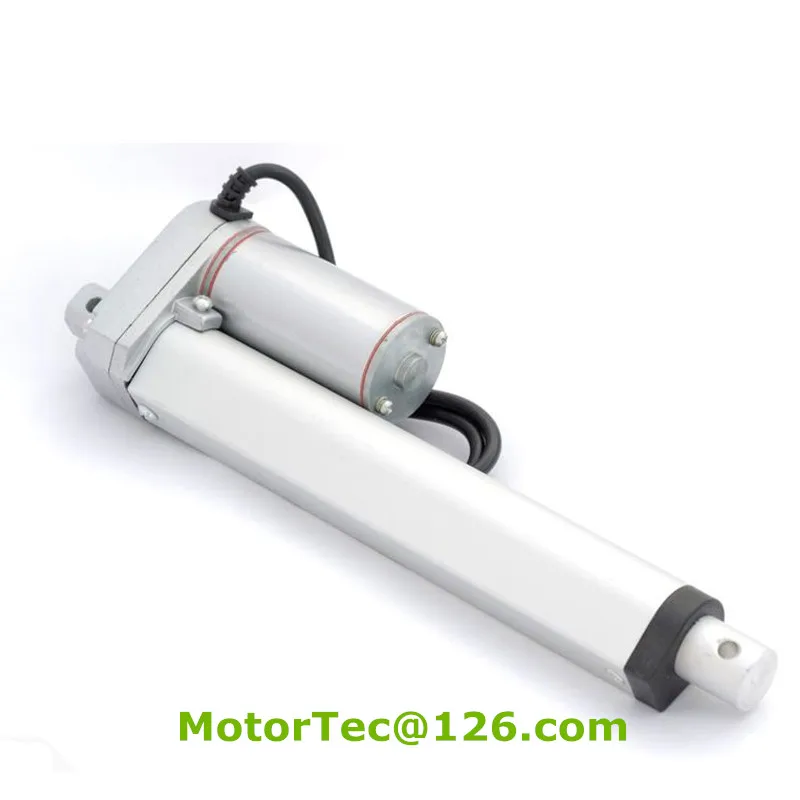

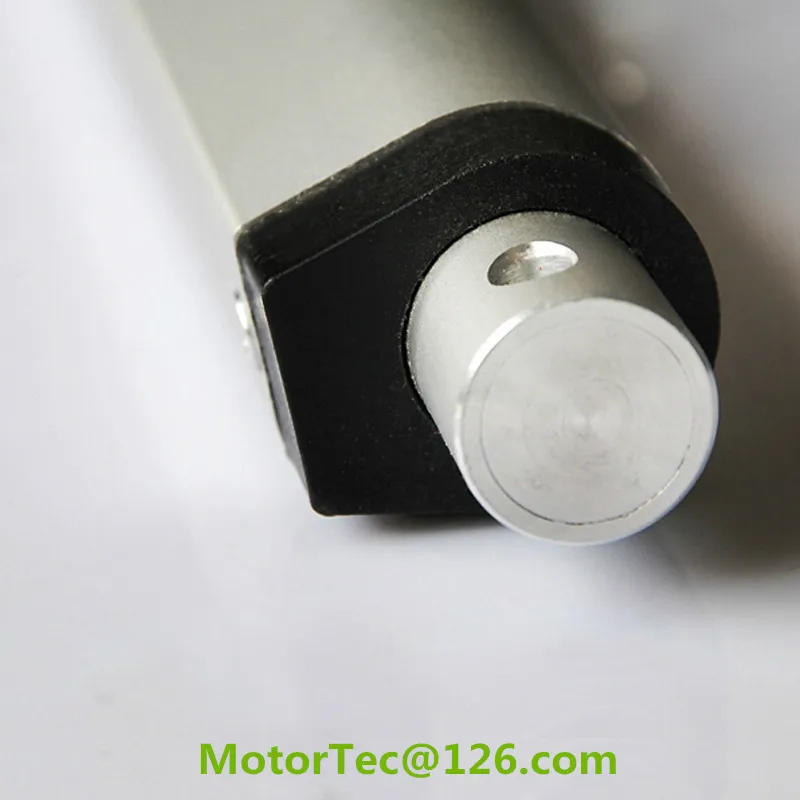

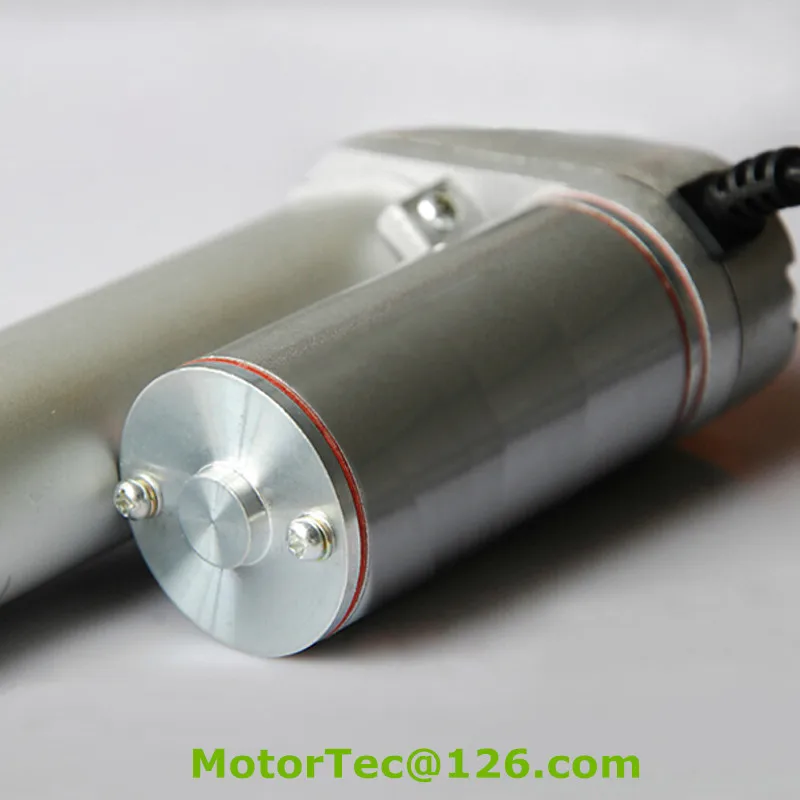

1000mm stroke 100mm/s speed 1600N 160KG load capacity high speed 12V 24V DC electric linear actuator,actuator linear

Motors & Parts>>>Home Improvement

Certification UL

Certification ROHS

Certification ce

Continuous Current(A) 4.5

Commutation Brush

Model Number LV-1

Type Tubular Motor

Protect Feature waterproof

Output Power 50

Construction Permanent Magnet

Torque 1600N

Usage BoAt

Usage Home Appliance

Usage Electric Bicycle

Usage Industry

Efficiency IE 4

Name Linear actuator,actuator linear

Load 1600N 160KG 352lbs

Stroke 1000mm

Speed Max 100mm per second

Certificate CE UL

Color silver

Duty cycle 25%

Original China

Customized Yes

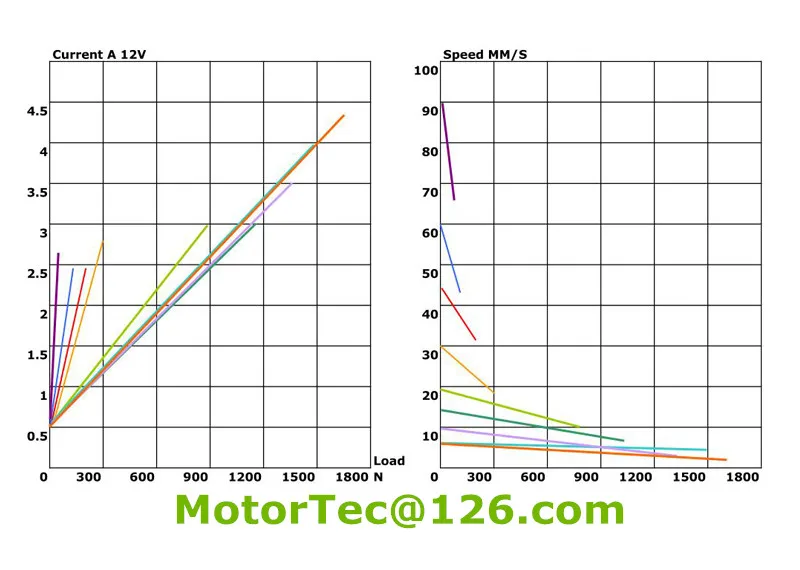

Speed(RPM)

90mm s 100N

60mm s 150N

45mm s 200N

30mm s 300N

20mm 500N

10mm 750N

6mm s 900N

20mm s 800N

15mm s 1100N

10mm s 1300N

6mm s 1500N

5mm s 1600N

Voltage(V)

12V

24V



Spec:



Type                                    LV-1

Input                                   12|24VDC

Load                                    Max 1600N/160KG/352LBS

Limited switch                       With

Duty cycle                            25%,heavy duty motor

Poduct Material                      Advanced metal,stronger

Worm Gear                           Metal gear

Color                                   Silver

Operation temperature         -26 ~ +65 degree

IP                                         IP55



Drawing



Lmin=105+Stroke=105+1000=1105mm

Lmin means the length when linear actuator 100% fully retracts, meanwhile,it will touch the tail limited switch,stop automatically.

Stroke means the movement length of linear actuator.

Lmax=Lmin+Stroke=1105+1000=2105mm

Lmax means the length when linear actuator 100% fully extends, meanwhile,it will touch the head limited switch,stop automatically.

Fast order link



About US

About US

With over 8 years experience in the linear motion technology,working together with different customers, from automation industry,hobbyists,healthy care,medical,automated furniture,We keep working hard to provide powerful,quiet,reliable,smooth actuation solutions that improve people's quality of life and working environment.

As the global provider,our product range has grown significantly. Our family products includes DC and AC linear actuators,dual actuators,tv lift,electric desk,lifting column,control box and accessory.

We are loyal to our values,we are loyal to our customers and we are loyal to our spare parts supplier. we are open and honest in all matters pertaining our daily work. MotorTec is the nameyou can trust for openness,honesty,high quality,innovation,controlled costs and professional service.

We love what we are doing



Warranty

1. If you did not receive product, we will full refund you.

2. If the product had quality problem, we will full refund you.

3. If the product was damaged by shipping company, we will full refund you.



Payment

Paypal,Alipay,Western union or bank transfer.



Shipping

1. Order will be delivered soon

2. Please make sure your address and phone is correct.

3. We will try our best to save your total cost.



Want to work with us? Contact us now!

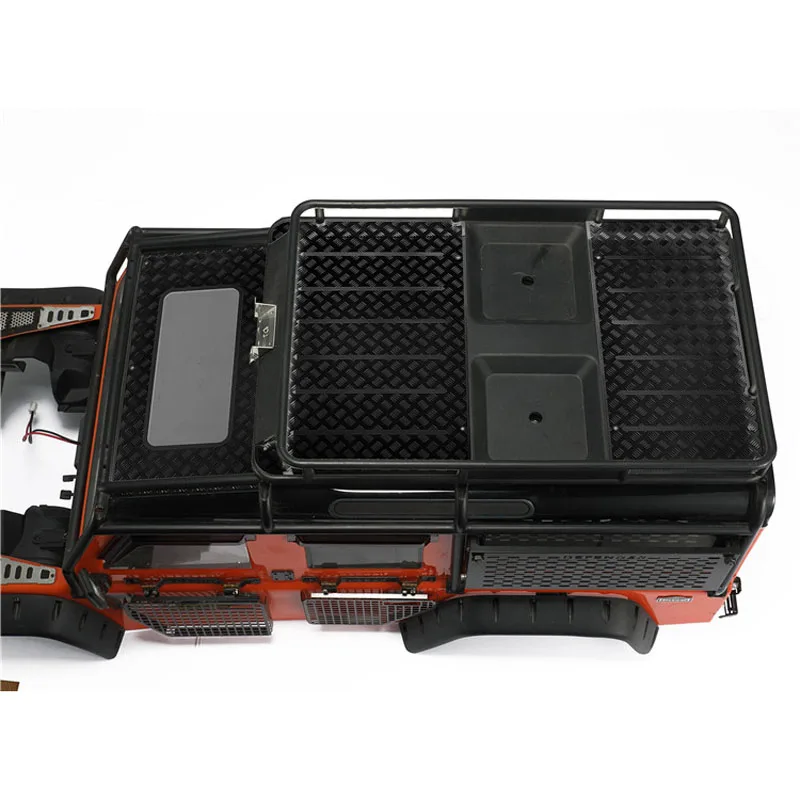

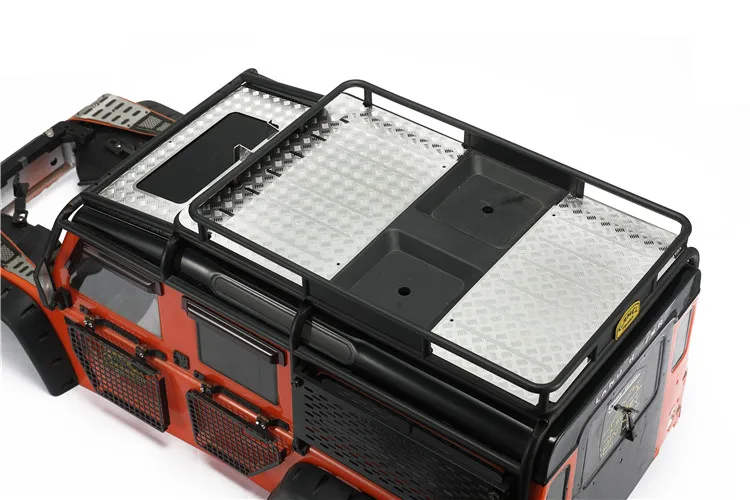

DJ TRAXXAS TRX4 Defender Skylight Anti-Skid T4 Case Skylight Trim Modified Silver Black Optional RC Car Upgrade Accessories

Parts & Accessories>>>Toys & Hobbies

Brand Name DC

Origin CN(Origin)

Material Metal

Recommend Age 7-12y

Recommend Age 12+y

Recommend Age 18+

Tool Supplies Assembly Category

Upgrade Parts/Accessories Car Shell

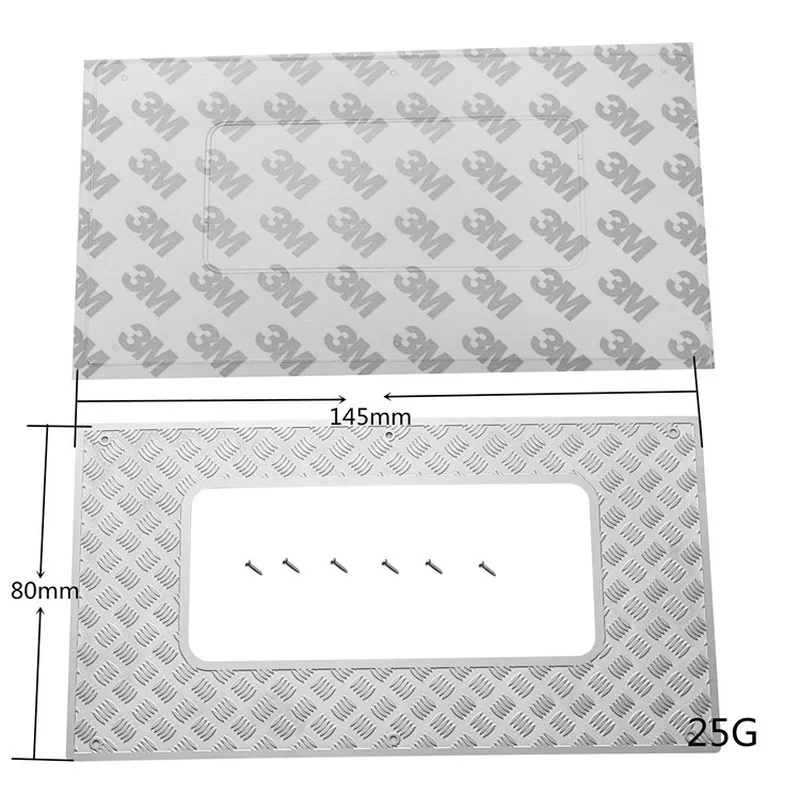

Size 145*80mm

Use Vehicles & Remote Control Toys

Quantity 1

Model Number DJ-0764

Remote Control Peripherals/Devices 1

For Vehicle Type Cars

Four-wheel Drive Attributes Assemblage

Wheelbase Upper Shell

Color

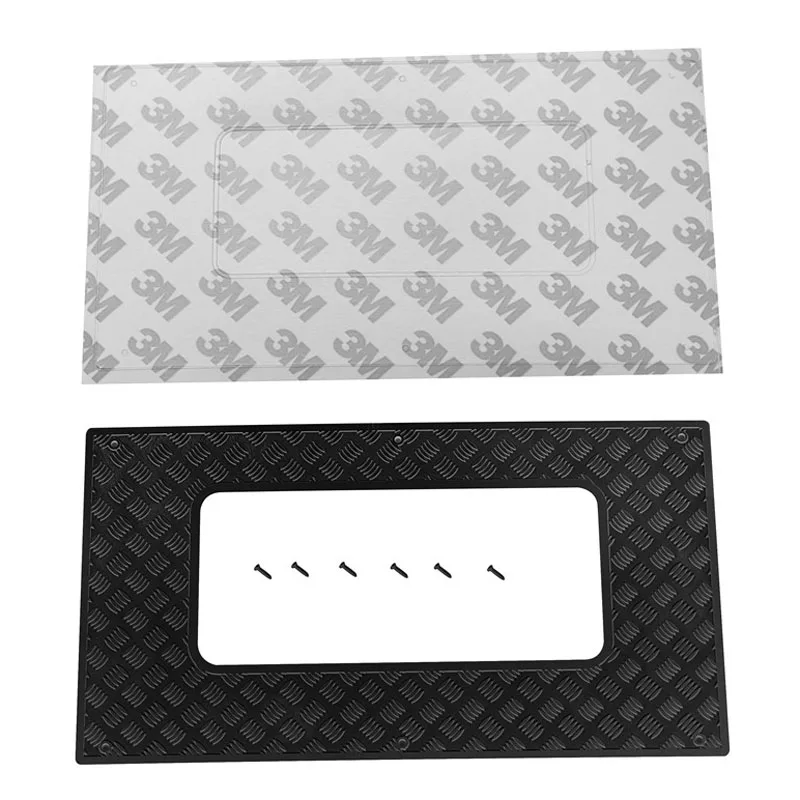

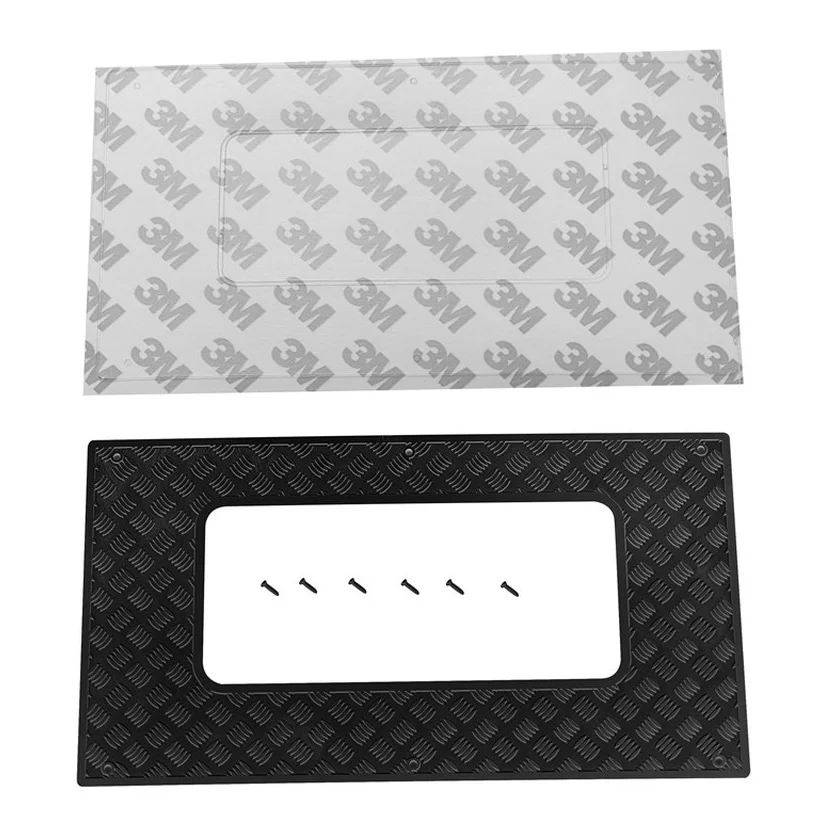

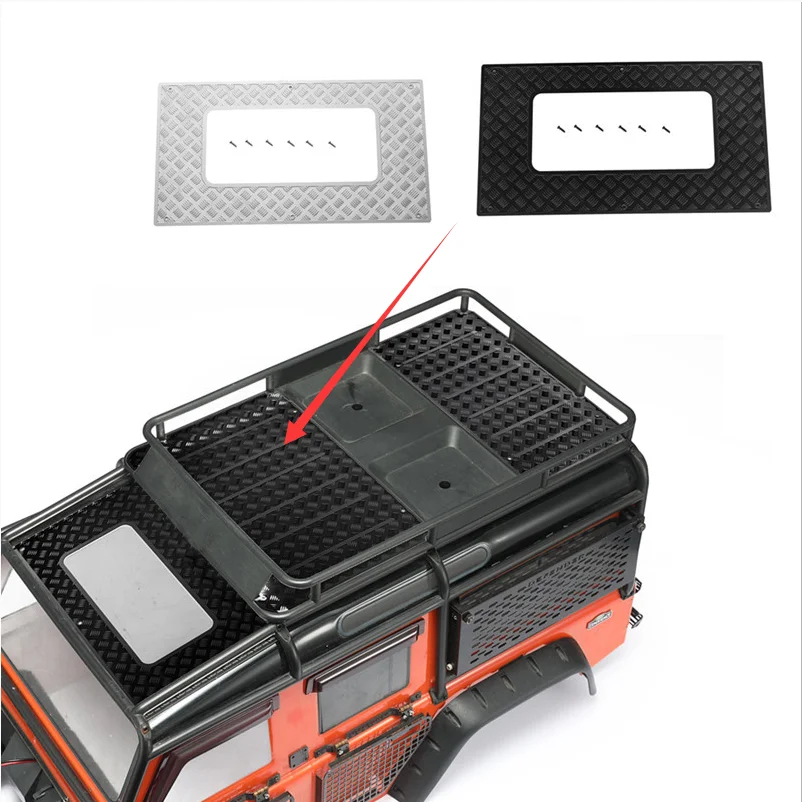

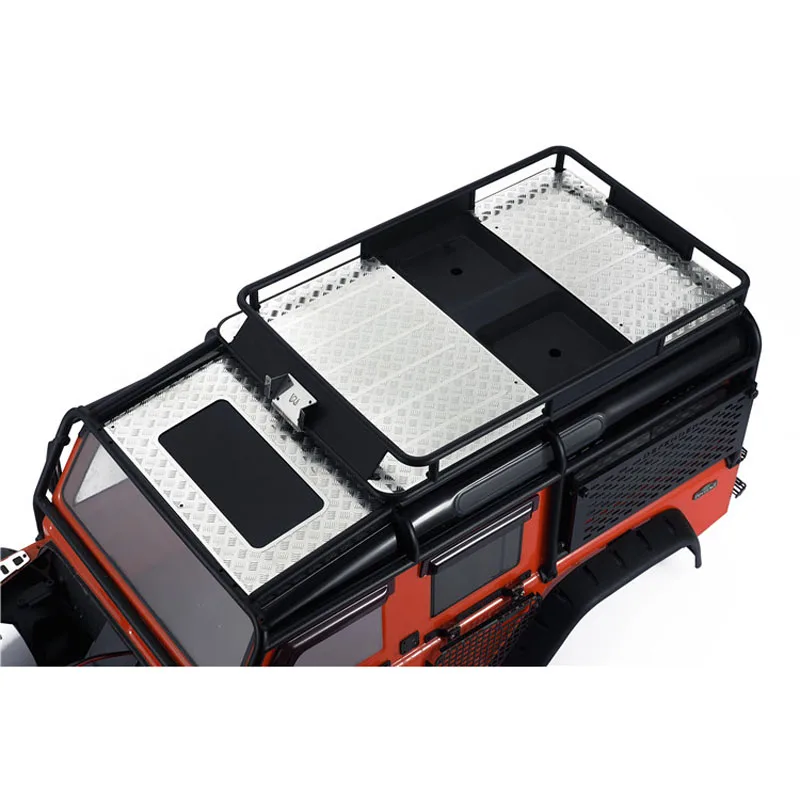

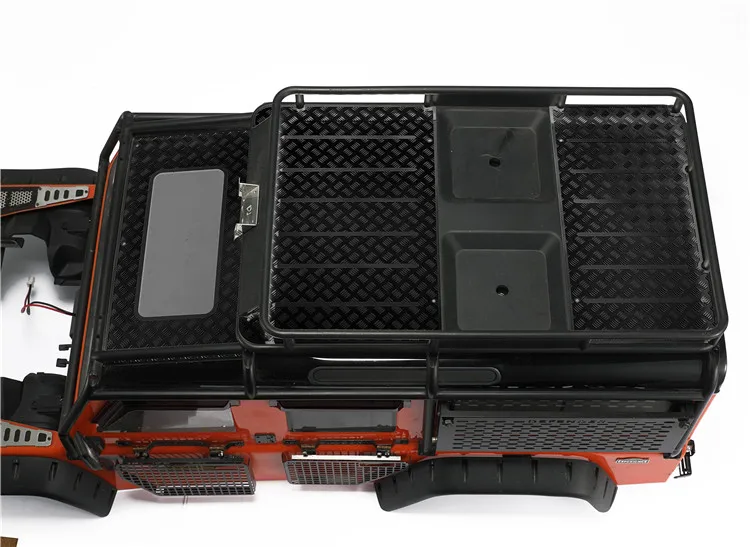

1. The sunroof skateboard material is a stainless steel.2. It is equipped with a screw, and the opening is fixed, which is more secure, not easy to fall off. 3M double-sided adhesive, need to paste itself.3. Suitable for the TRX4  sunroof installation.4. 9-Year Brand Manufacturer Accessories, High Quality.

Silver

Black
