Brand Name YIDAMA-TONGLE
Type Serial Cable
Products Status STOCK
Package No
Model Number YM-758
Color Skyblue
Chip FTDI
Material PVC jacket+Bare copper wires
Connector Type C to RJ45
Feature 01 usb c to rj45
Feature 02 blue console cable
Feature 03 usb rs232 to rj45
Feature 04 usb c to rj45 for cisco
Feature 05 usb console router cable
Feature 06 usb to rs232 serial cable
Application For cisco/Huawei/Hp Routers
Feature 07 type c cable for macbook
System Support Win10/8/7/XP/Android/Mac/Linux/Wince
Quality Warranty One Year , All life maintaince

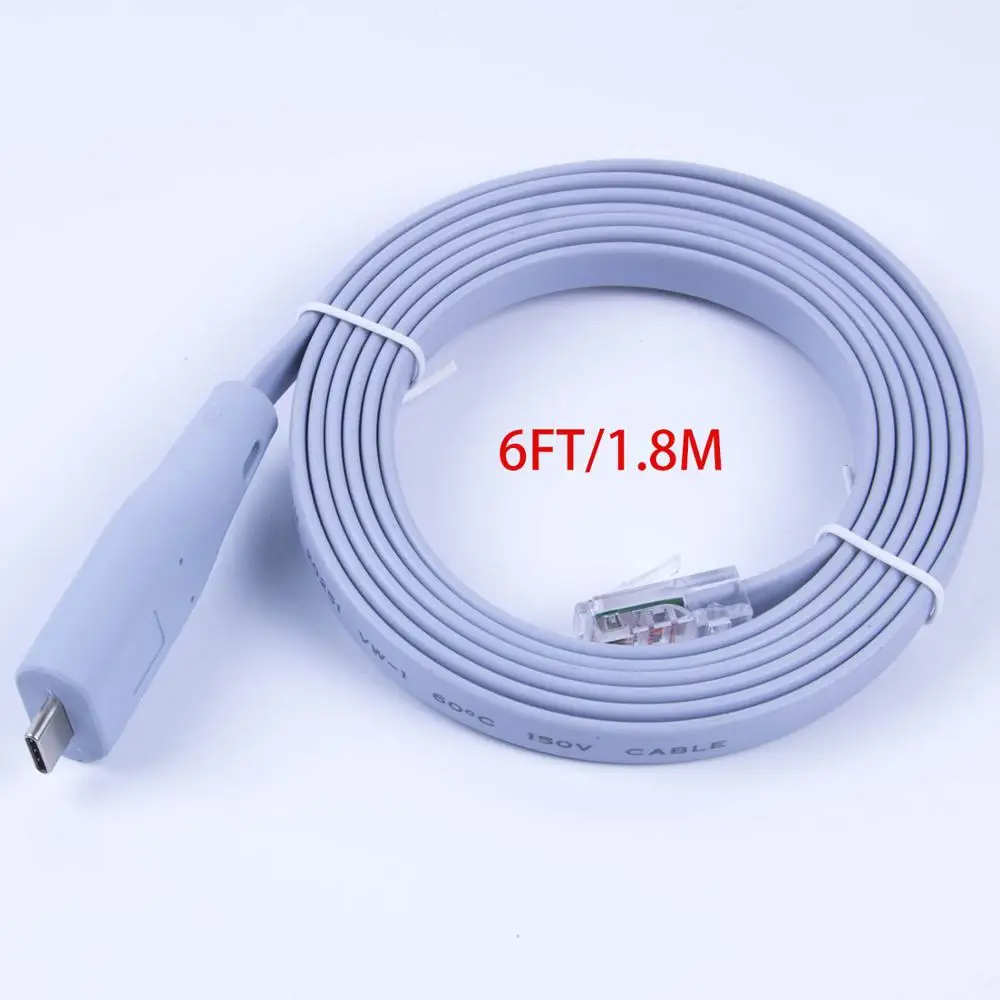

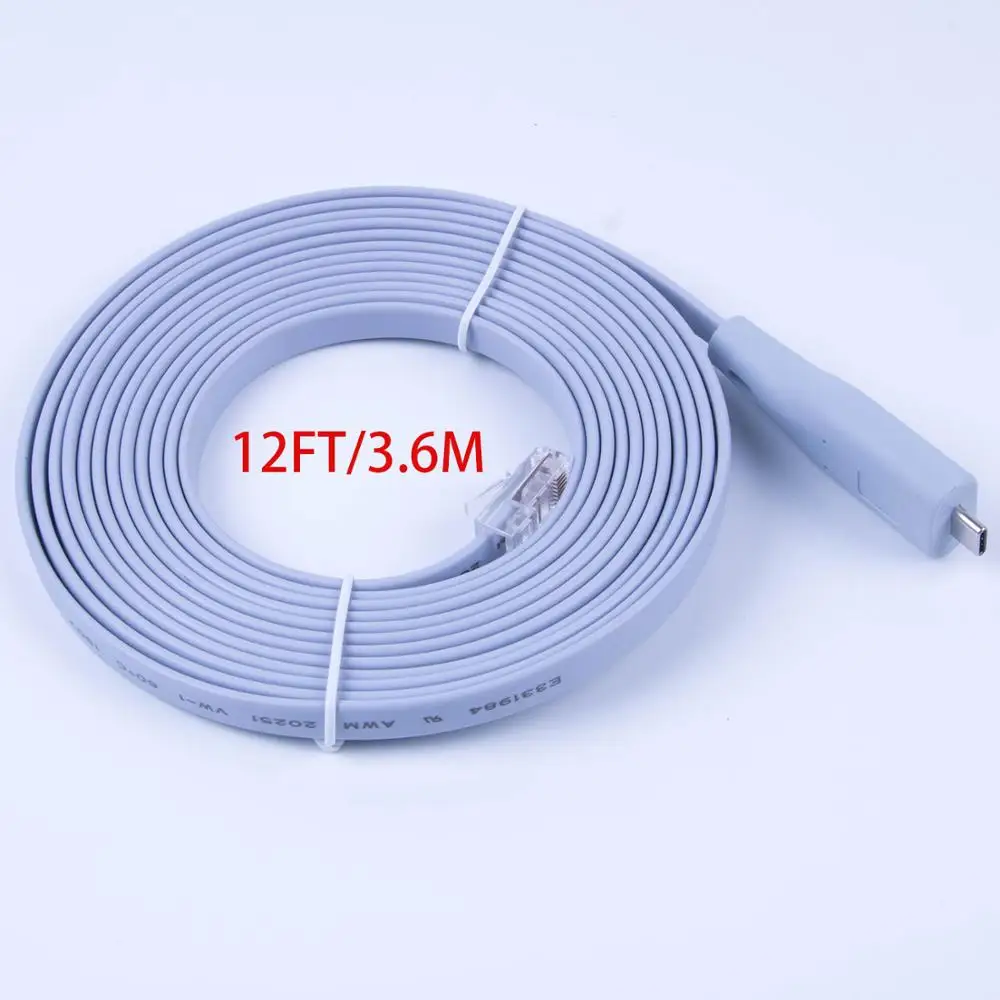

Cable length
6ft
12ft
Color
Blue

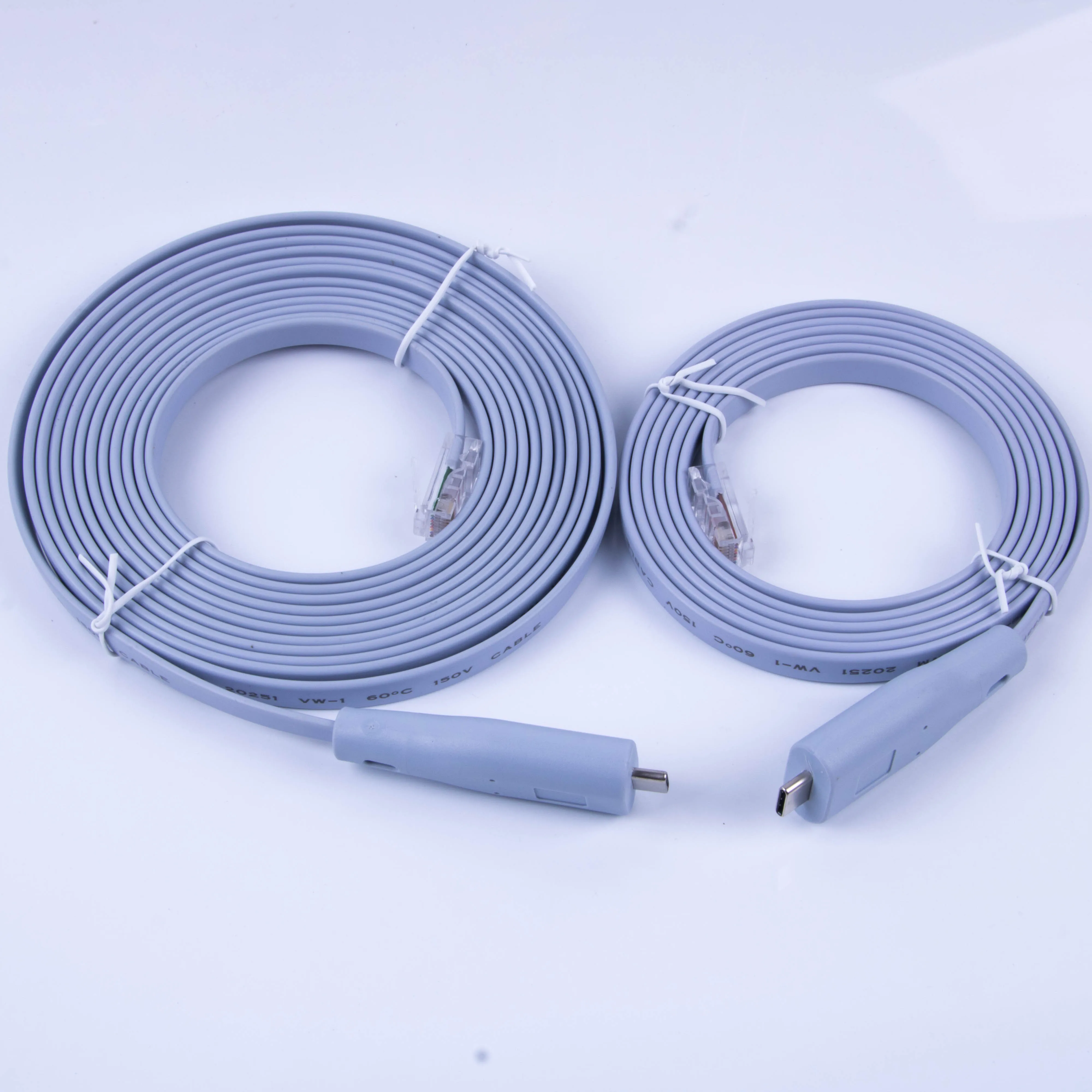

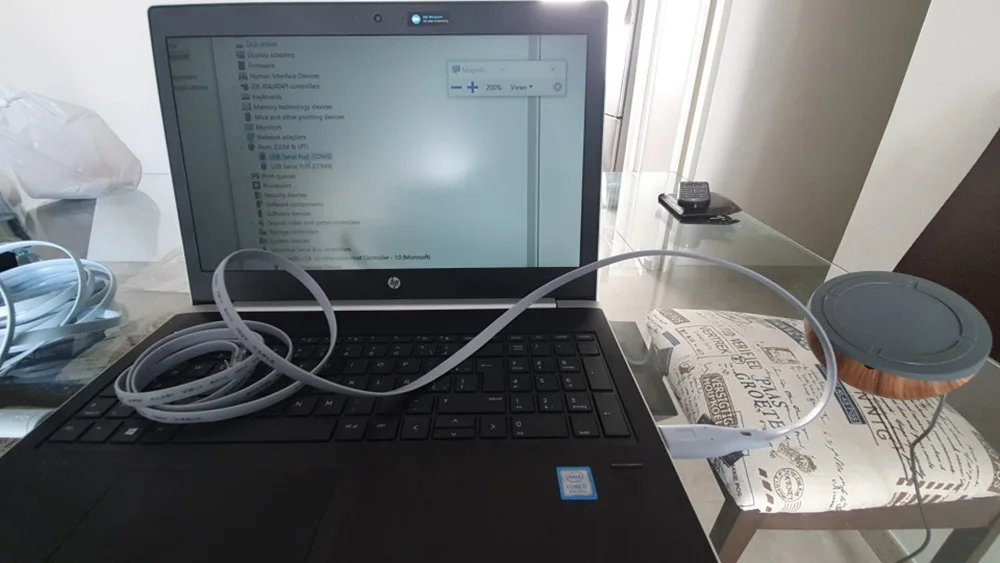

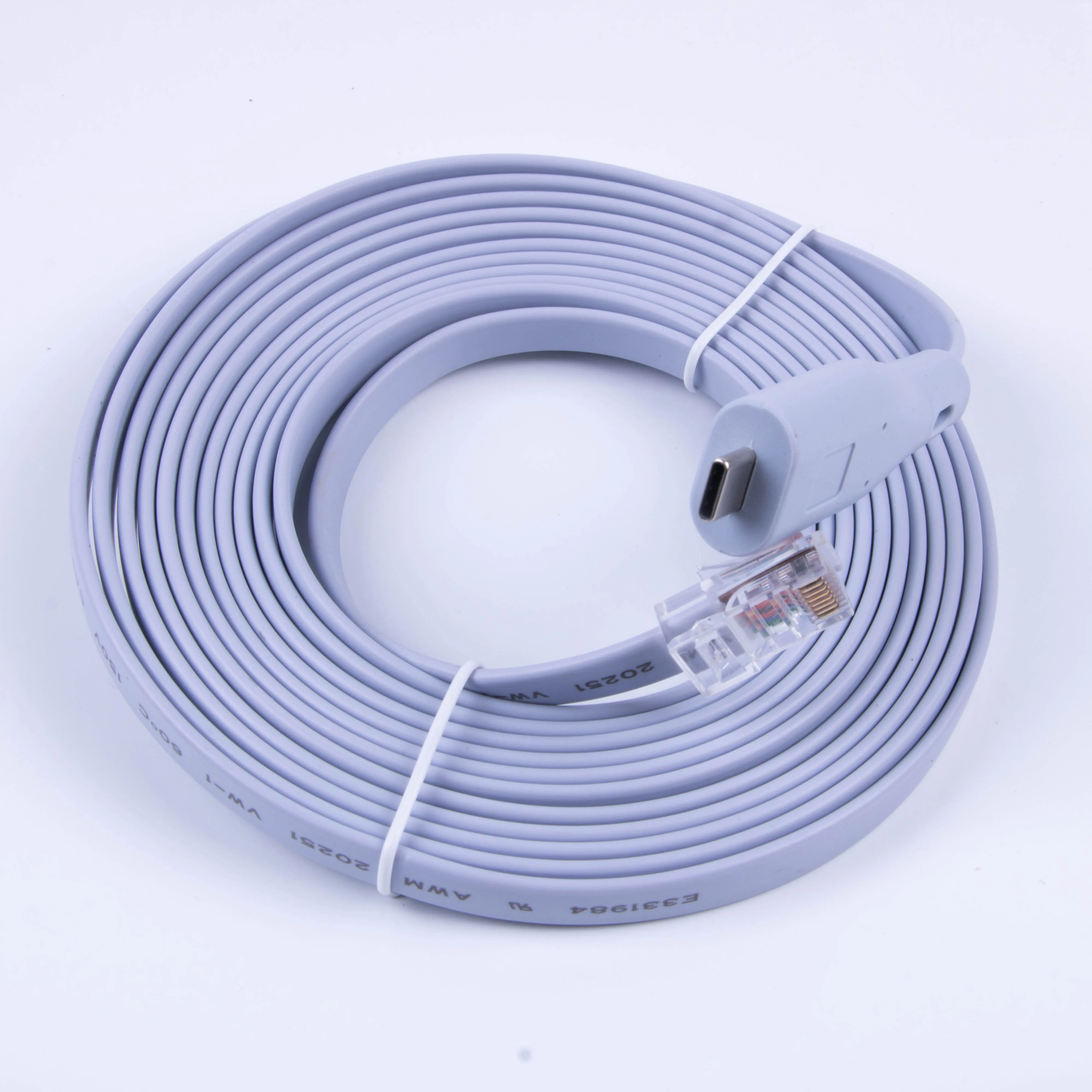

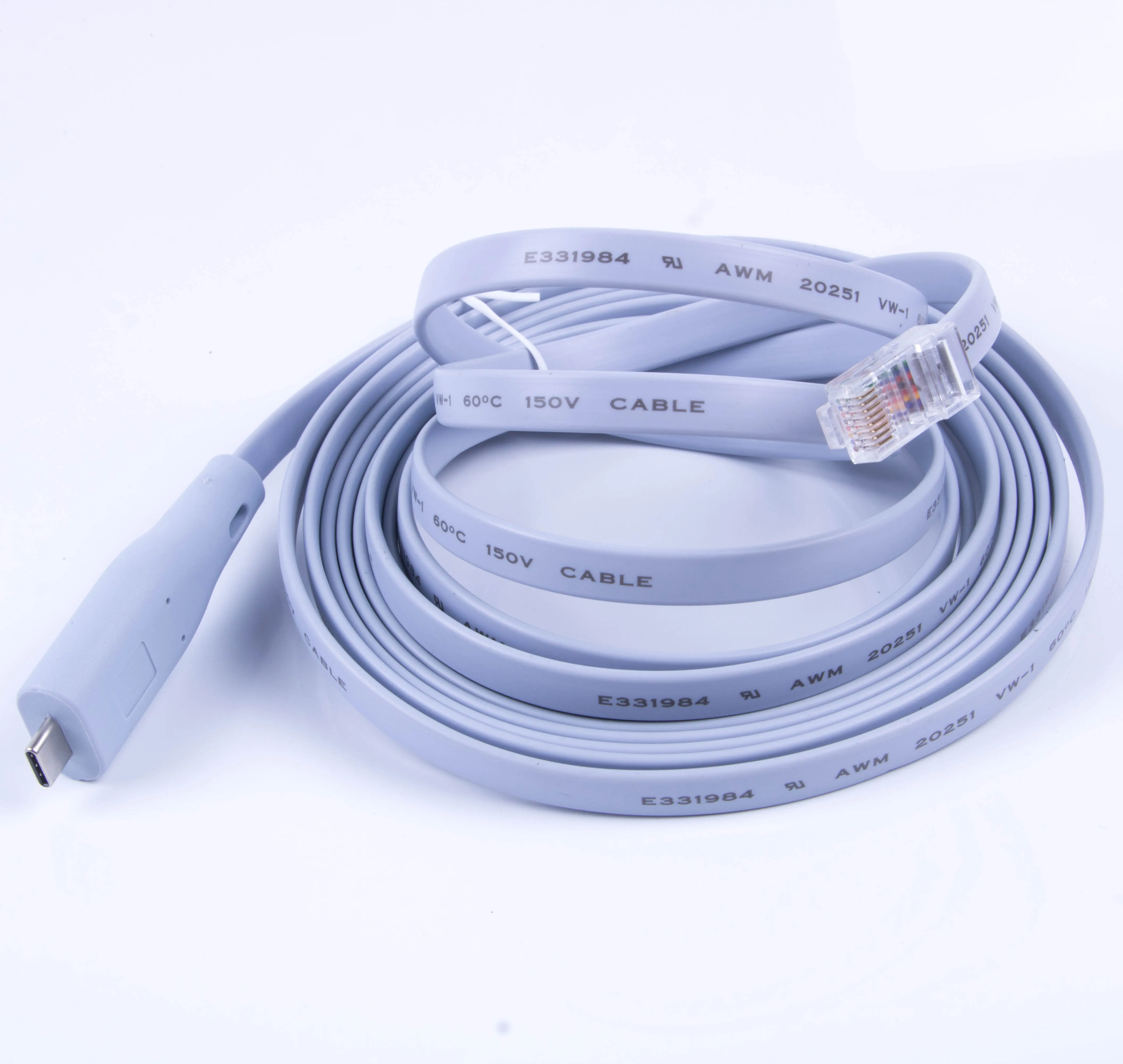

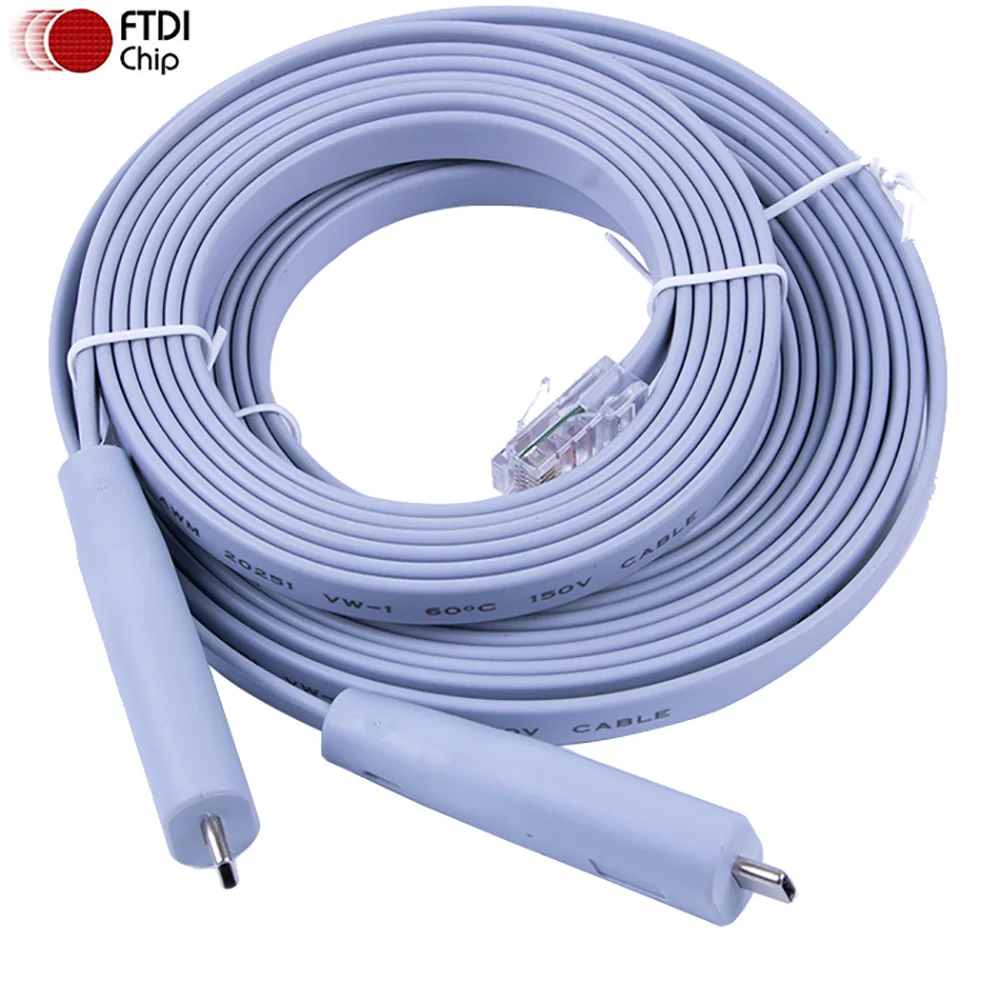

Product description Size:USB-C to RJ45 RS232 Serial Cable 6Ft 12FT Features: Full support for Windows, MAC and Linux Compatible with any laptop with a USB Type C Port(USB 2.0), such as Apple Macbook and more other Type-C supported devices. Microsoft (HCL) certified to be compatible with Windows, no CD needed because the drivers are part of the OS distribution Supports hardware flow control used to implement the CISCO break sequence FTDI FT232R chip + RS232 Level Shifter RJ-45 DTE Pinouts RTS(1), DTR(2), TXD (3), GND(4), GND(5), RXD (6), DSR(7), CTS(8) UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity Cable length is 1.80m (6 Feet) Please ensure it's compatible before purchasing Work for any laptop with a USB Type C Port(USB 2.0) Supported Operating System · Windows 8 x32 · Windows 8 x64 · Windows Server 2008 R2 x64 · Windows 7 x32 · Windows 7 x64 · Windows Server 2008 · Windows Server 2008 x64 · Windows Vista x32 · Windows Vista x64 · Windows Server 2003 x32 · Windows Server 2003 x64 · Windows XP x32 · Windows XP x64 · Windows ME · Windows 98 · Linux · Mac OS X · Mac OS 9 · Mac OS 8 · MacBook · Windows CE.NET (Version 4.2 and greater) Packing List: 1 X FTDI USB Type-C to RJ45 Cisco Console Cable 6FT/12FT
For Android panel PC application, please download APK from websites:
It support FT_prog
About FT231X Single chip USB to asynchronous serial data transfer interface. Entire USB protocol handled on the chip. No USB specific firmware programming required. Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration. Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA. Data transfer rates from 300 baud to 3 Mbaud. 512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput. FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases. Configurable CBUS I/O pins. Transmit and receive LED drive signals. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity Synchronous and asynchronous bit bang interface options with RD# and WR# strobes. Battery Charger Detection. May be used by mobile devices to detect the presence of a charger on the USB port to enable higher current / faster charging of batteries. Device supplied pre-programmed with unique USB serial number. Supports bus powered, self powered and high-power bus powered USB configurations. Integrated +3.3V level converter for USB I/O. True 3.3V CMOS drive output and TTL input. (operates down to 1V8 with external pull ups and is also 5V tolerant) Configurable I/O pin output drive strength. Integrated power-on-reset circuit. UART signal inversion option. Internal 3.3V/1.8V LDO regulators Low operating current of 8mA (typical) and USB suspend current of 125uA (typical) current. Low USB bandwidth consumption. UHCI/OHCI/EHCI host controller compatible. USB 2.0 Full Speed compatible. Extended operating temperature range: -40°C to 85°C Available in compact Pb-free 20 Pin SSOP and QFN packages (both RoHS compliant). Typical application USB to RS232/RS422/RS485 Converters Upgrading Legacy Peripherals to USB Cellular and Cordless Phone USB data transfer cables and interfaces Interfacing MCU/PLD/FPGA based designs to USB USB Audio and Low Bandwidth Video data transfer PDA to USB data transfer USB Smart Card Readers USB Instrumentation USB Industrial Control USB MP3 Player Interface USB FLASH Card Reader and Writers Set Top Box PC - USB interface USB Digital Camera Interface USB Hardware Modems USB Wireless Modems USB Bar Code Readers Dedicated Charger Port (DCP) detection enabling battery charging at higher current for faster charge times.
This cable is for updating DB9 to RJ45 cable, you can reference the following DB9-RJ45 cable information:
The standard formerly known as RS-232 or RS232 became EIA-232 then TIA-232. Most of the world still calls it RS232 but many names are used.RS-232D or EIA-561 defines the pin assignments for using RS-232 with RJ45 connectors. For an RJ45 male connector, the one you'll find at both ends of a Cat6 cable, pin 1 is the left most pin when you look at the connector with the tab up and the cable going away from you. It's easier to buzz out a cable with the tab down, in which case pin 1 is on the right, thus leading to a lot of potential confusion.For the DB9 female connector pin 1 is the top right and pin 6 is the bottom right when you look at the connector with the cable going away from you and the side with five pins on top.At this point it's probably good to mention that you only need three lines to have a functional cable. You'll need RD, TD and ground. All the other lines are used by software to control data. The three critical lines are handled by hardware. But most of us don't write the software at both ends, so it may wait forever for a signal transition that will never happen.
Cisco RJ45 to DB9 Serial Console Pinout
If you're familiar with Cisco routers then you've seen the RJ45 serial console connector they use, and the light blue RJ45 to DB9 cable. This does NOT follow the EIA-561 standard.
Cisco RJ45 to DB9 Serial Console Cable
RJ45 DB9 Abbreviation Description 1 8 CTS Clear To Send 2 6 DSR Data Set Ready 3 2 RD Received Data 4 5 GND Ground 5 5 GND Ground 6 3 TD Transmit Data 7 4 DTR Data Terminal Ready 8 7 RTS Request To Send This cable works fine with minicom or HyperTerm because the Cisco hardware and software handles it. It's certainly possible to wire your RJ45/DB9 connectors following this pinout. If you do, please mark the connector clearly so the rest of us won't assume it's an RS-232D or EIA/TIA-561 pinout.
The only potential problem with this is that DB9 pin 1 for Carrier Detect (CD) is missing. Normally we would see pin 1 and pin 6 (CD and DSR) connected to the DTR output from the far end. But as I can attest, the cable works. And I've buzzed out the cable to confirm that pin 1 and pin 9 are not connected to anything.
Cisco uses two lines for ground to reduce crosstalk, which could be a benefit on especially long runs of cable.
Drivers are available which allow FTDI devices to work with the following operating systems:
Windows 10 x64, x32
Windows 8.1
Windows 8.1 x64
Windows 8
Windows 8 x64
Windows Server2012
Windows Server 2008 R2
Windows 7
Windows 7 x64
Windows Server 2008
Windows Server 2008 x64
Windows Vista
Windows Vista x64
Windows Server 2003
Windows Server 2003 x64
Windows XP
Windows XP x64
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android
Windows RT
Support for WinCE7.0 Initial functional testing conducted by FTDI has shown that the FTDI drivers function as expected on Windows CE 7.0
Support for older versions of Windows Desktop
NOTE: Microsoft have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not Microsoft certified.
Differences in Driver API
For most of these operating systems two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct access to a USB device via a DLL interface.
To locate the drivers you want to install for a device, select which of the driver types you wish to use (VCP or D2XX) and then locate the appropriate operating systems. With the exception of Windows 98 and Windows ME, all devices are supported in each driver package.
If a VCP driver is required for Android please refer to the following application note: TN 132 Adding FTDI Devices VCP Driver Support to Android.
