Motors & Parts>>>Home Improvement
Usage Other
Certification Other
Output Shaft Diameter 3mm
Rated Voltage DC 6V/12V
Usage BoAt
Certification CCC
Origin CN(Origin)
Construction Permanent Magnet
Type Gear Motor
Output Power 0.1W
Model Number GW12GA Turbo Worm Gear Motor
Commutation Brush
Protect Feature Explosion-proof
Efficiency IE 1

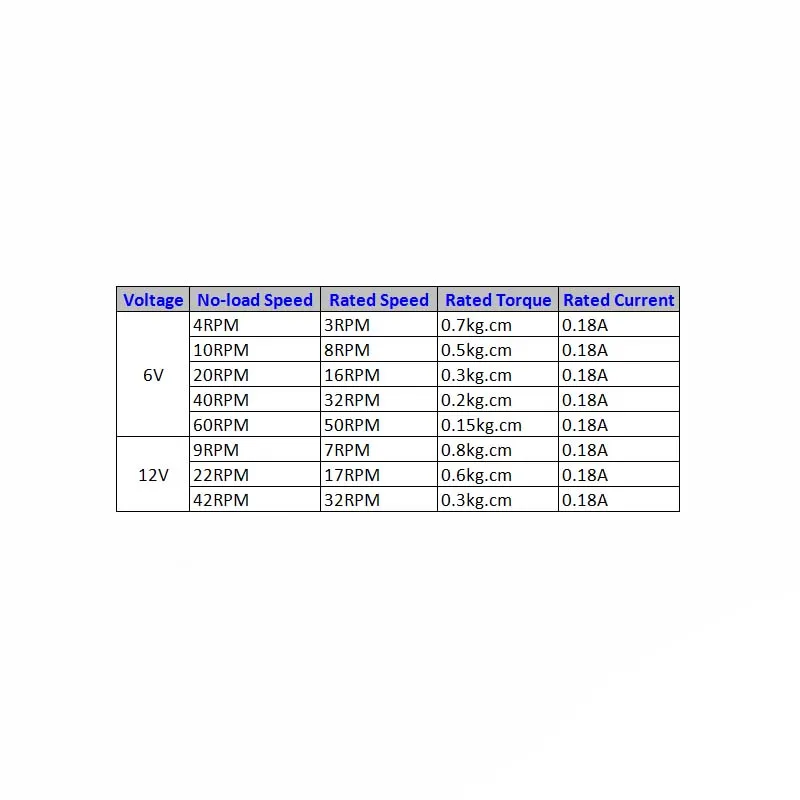

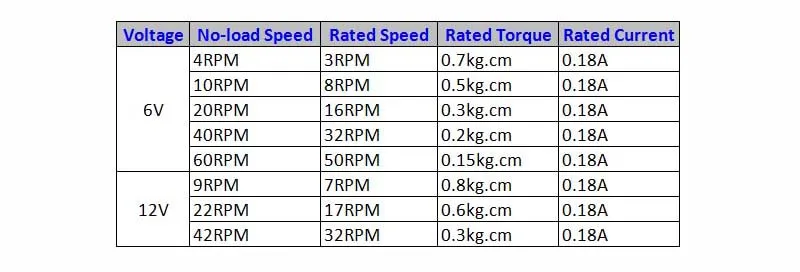

Speed(RPM)
6V 4RPM
6V 10RPM
6V 20RPM
6V 40RPM
6V 65RPM
12V 9RPM
12V 22RPM
12V 42RPM

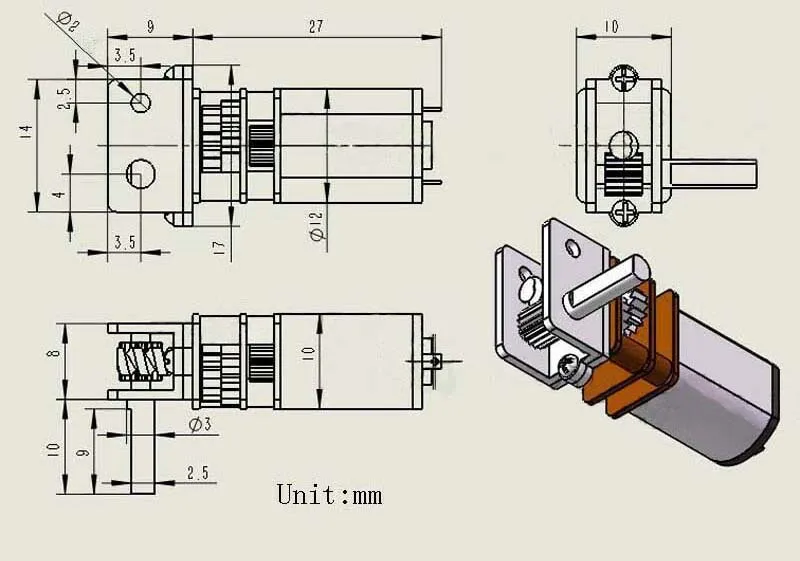

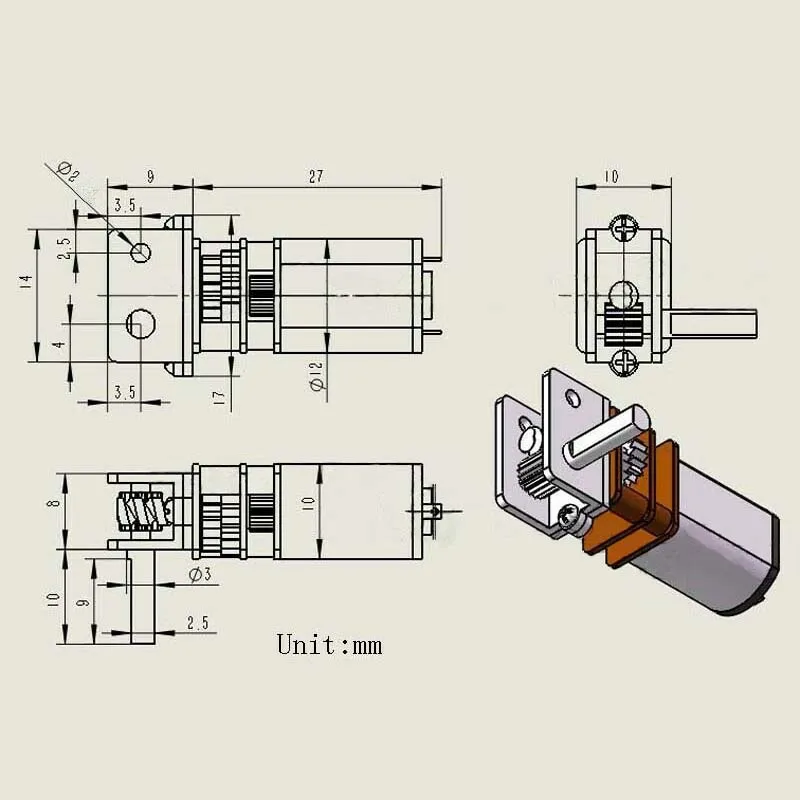

Specifications:1. The worm gear motor with self-locking, ie, in the case in the absence of electric motors,The output shaft is not to move, that is self-locking.2. The gearbox output shaft direction of the motor shaft is arranged vertically,The entire body of the motor output shaft relative to the general direction of gear motor short,Widely adapted to some of the installation dimensions of this aspect is required. Suitable for: used in windows, a door opener, miniature winch and other occasions. Model: GW12GA Turbo Worm Gear MotorRated Voltage: DC 6V/12VNo-load Speed: 4/9/10/20/22/40/42/65RPMOutput Shaft Diameter: 3mmOutput Shaft Length: 10mmPackage included:Motor x1Size & parameter:
