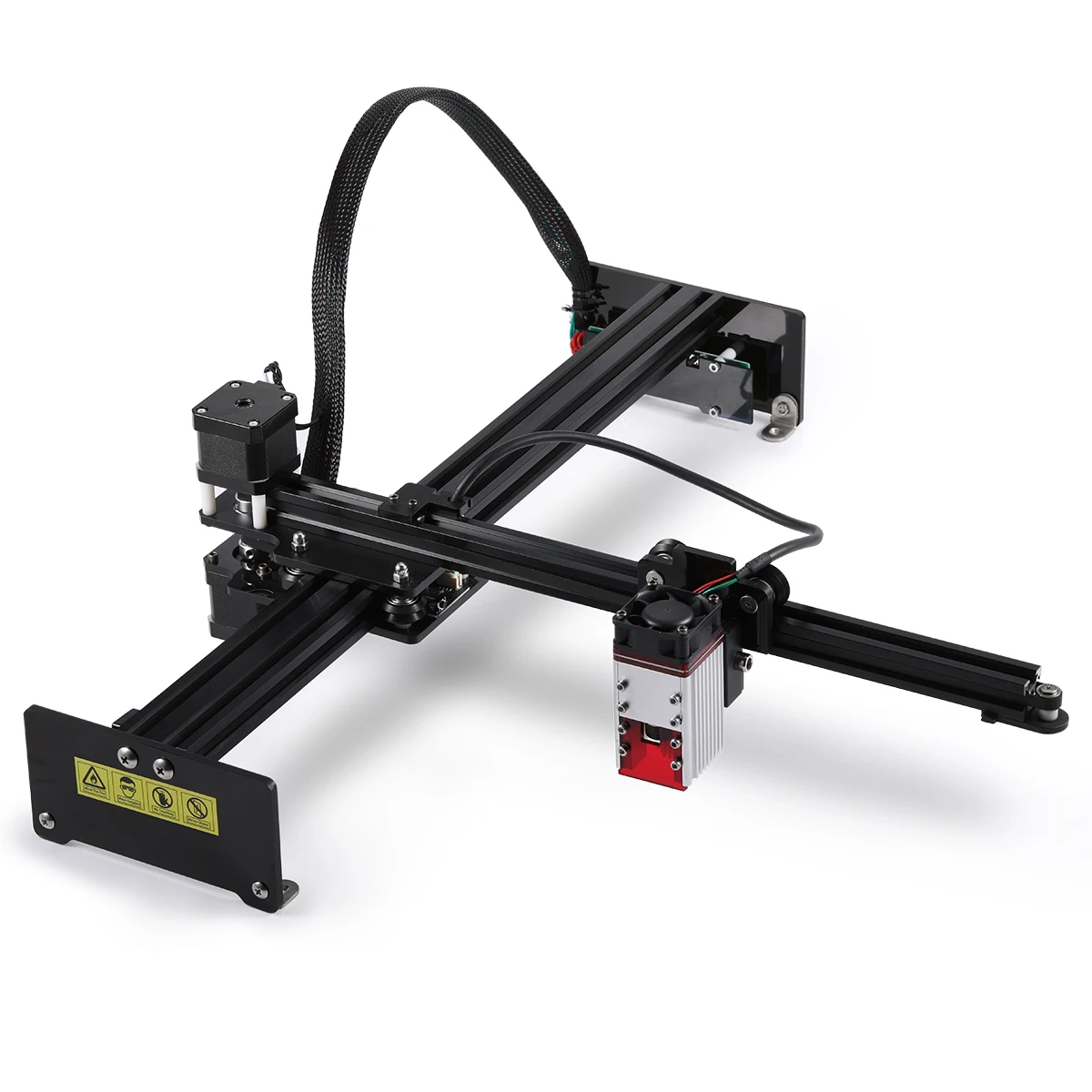

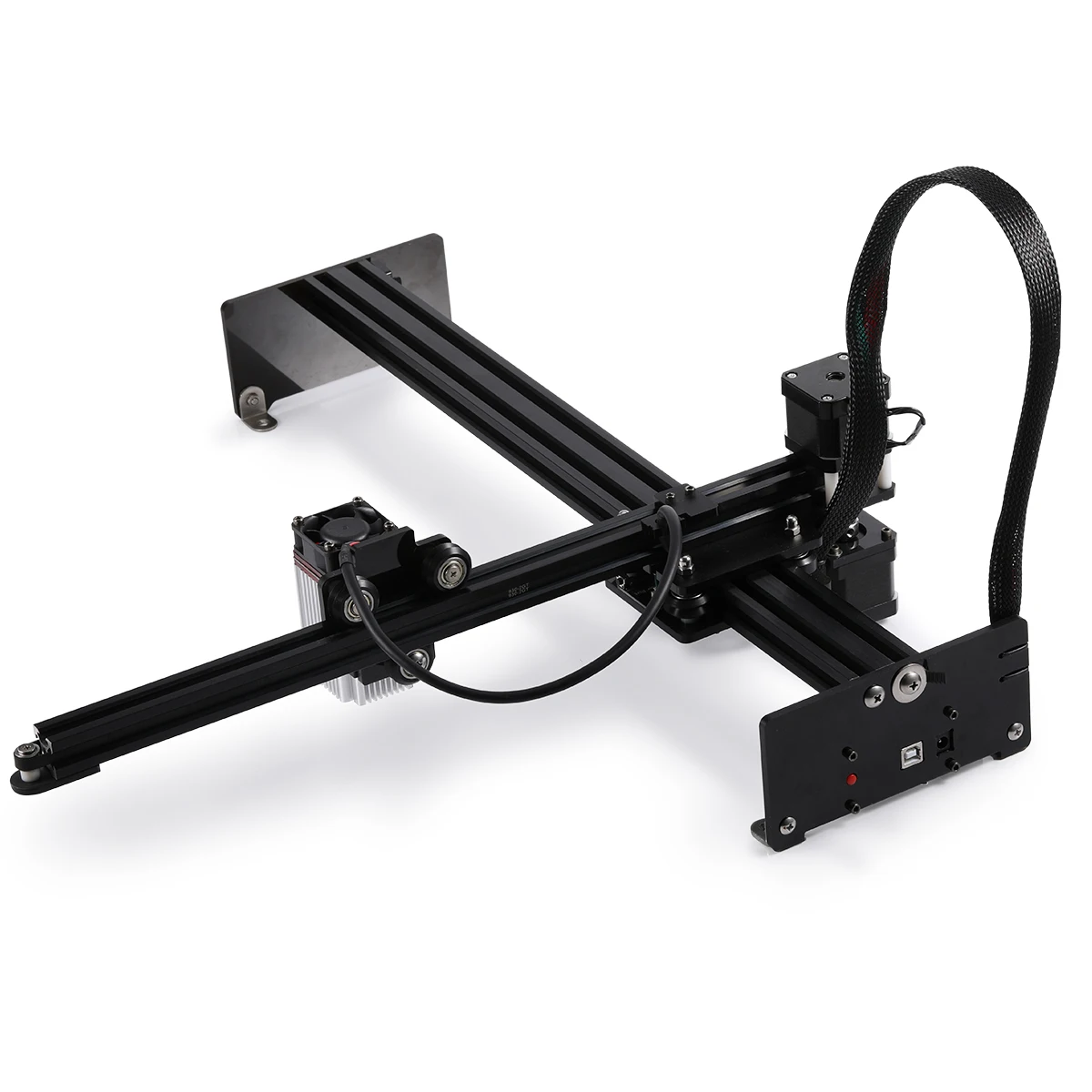

NEJE Master 2s Plus A40640/N40630 CNC Laser Engraver Cutter Printer Cutting Machine Router Lightburn Bluetooth Metal Mark Tool

Wood Routers>>>Tools

Brand Name NEJE

Origin CN(Origin)

Certification CE

Certification FCC

Certification RoHS

Certification UL

Condition New

Model Number Master 2s Plus

CNC or Not CNC

Is Smart Device YES

Brand NEJE

Laser Model A40640/N40630

Ships From

China

Poland

United Kingdom

GERMANY

SPAIN

Australia

Russian Federation

France

Italy

Brazil

Color

PLUS 80W A40640

PLUS 30W N40630

\NOTE:

Caros compradores brasileiros, pagamos tarifas elevadas pelos produtos no armazém brasileiro. Se você optar por enviá-lo para o armazém brasileiro, ele será entregue em 1-5 dias úteis, obrigado!

(Como os óculos são produtos anti-epidêmicos, a alfândega brasileira não permite produtos com óculos. Os produtos no armazém do Brasil não incluem óculos, obrigado pela compreensão).

Master 2S Plus Product Specifications

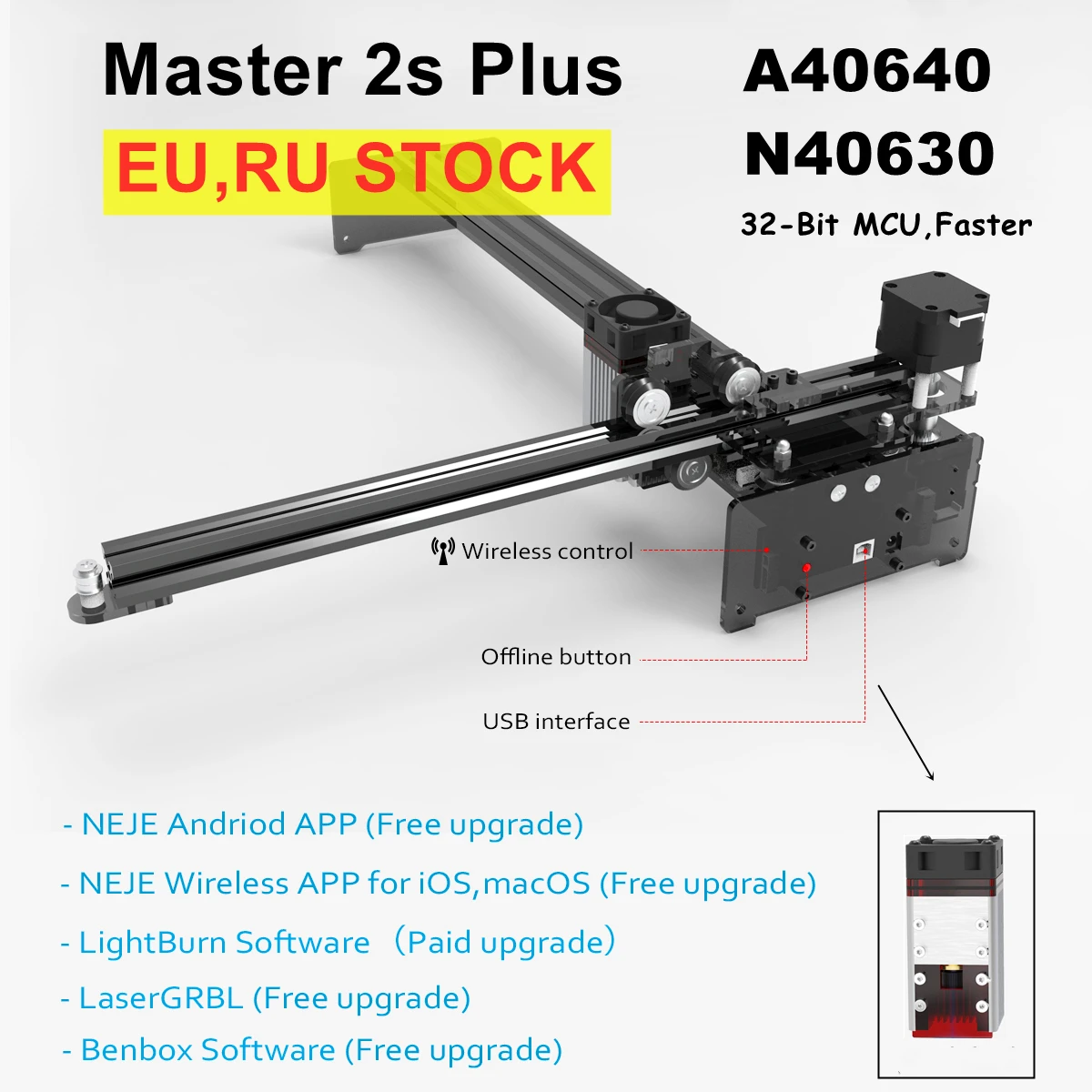

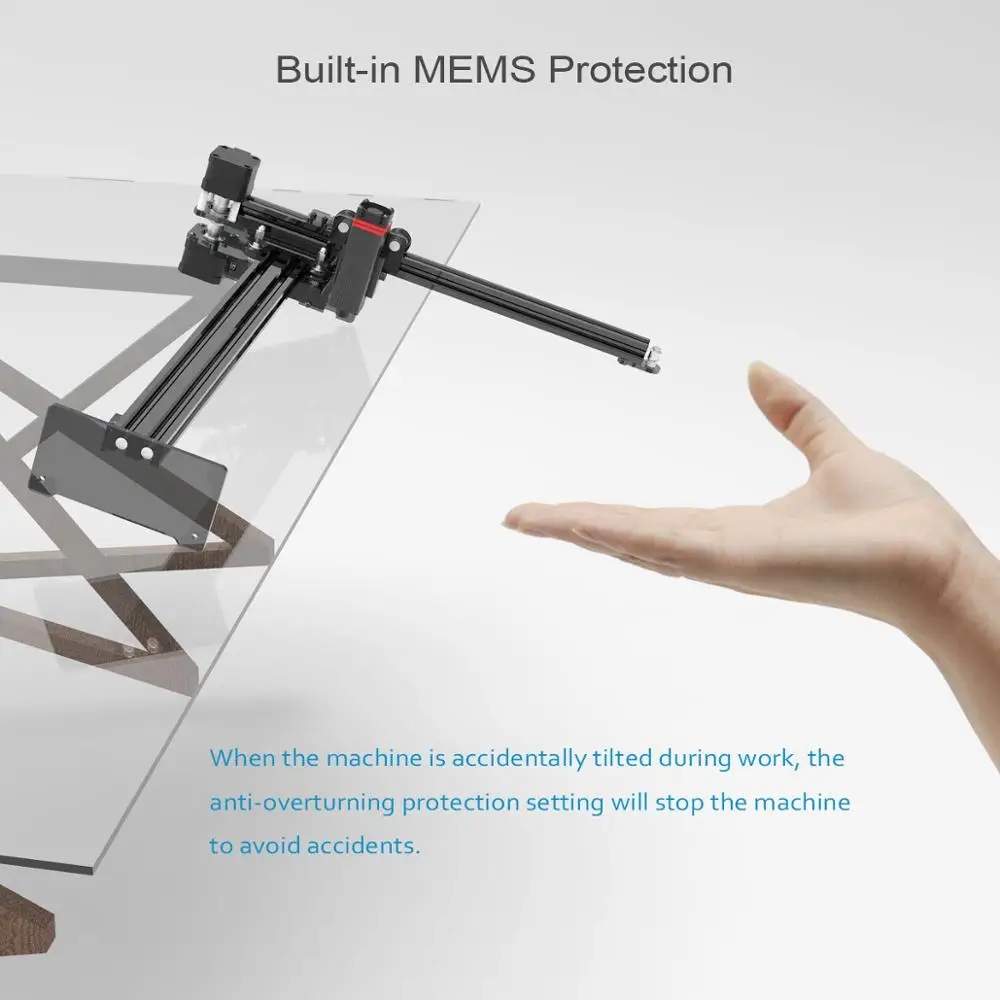

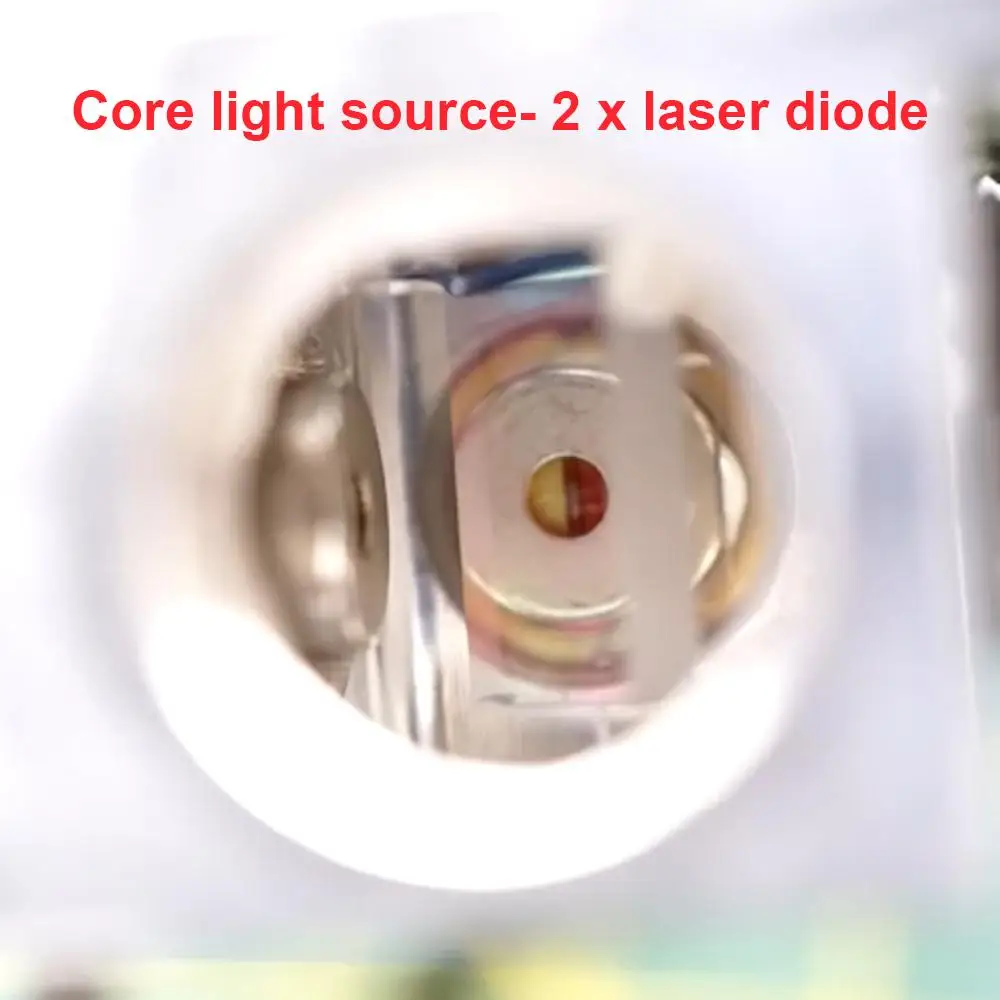

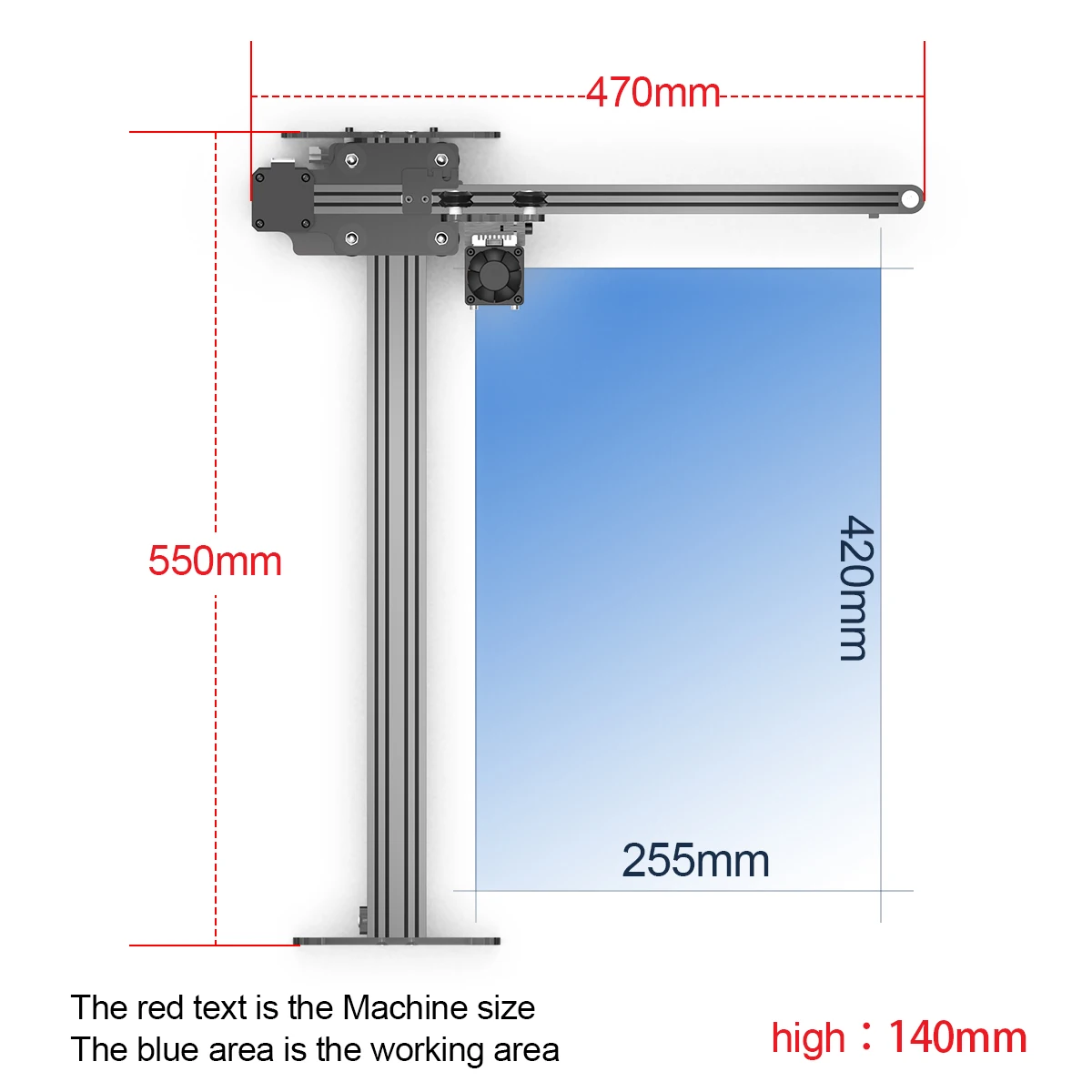

1. Larger area, 255 x 440 mm engraving and cutting area2. Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.3. The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.4. Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.5. Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.6. Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.7. Support NEJE 4pin interface series modules, including 15W, 20W, 30W, 40W, 50W, etc.8. The product has passed the quality control of NEJE factory, if it is a product quality problem, 2 years free warranty! A40640 Laser Moudle Feature 1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.2.10W Optical power output, 4mm plywood from 1 pass(speed 200), 3mm black acrylic board from 1 pass, Able to engrave stainless steel, but it needs good focus adjustment.3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.4..More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.6.slidable mounting fixture is provided for easy adjustment of focus. A40640 Product Specification Model：NEJE Module A40640Heatsink Material：Aircraft Aluminum + Brass ShellLuminous Color：BlueSection Size：40mm x 40mmCooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fanDimension：60 * 40 * 40mmAdapter Plug：5.5 2.1 portCan Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized AluminumCan Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent MaterialTechnical Parameters：Optical power output：10WWavelength：445-450nmBeam Shape：Dot (Focusable)Working Voltage：DC 12VTTL&PWM Modulation：YES, Compatible with Both TTL & PWM ModulationInput Voltage：DC12V 3-4APWM/TTL Input：DC3.3V-12VInput Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.Drive Mode：External ACCSafe temperature range：<60 ℃Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )Life Time：10000-20000 hours N40630 Laser Moudle Feature 1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.2.5.5W Optical power output, 4mm plywood from 1 pass(speed 100)3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.4.More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.6.Slidable mounting fixture is provided for easy adjustment of focus. N40630 Product Specification Model：NEJE Module N40630Heatsink Material：Aircraft Aluminum + Brass ShellLuminous Color：BlueSection Size：40mm x 40mmCooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fanDimension：60 * 40 * 40mmAdapter Plug：5.5 2.1 portCan Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized AluminumCan Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent MaterialTechnical Parameters：Optical power output：5.5W (5500mW)Wavelength：445-450nmBeam Shape：Dot (Focusable)Working Voltage：DC 12VTTL&PWM Modulation：YES, Compatible with Both TTL & PWM ModulationInput Voltage：DC12V 3APWM/TTL Input：DC3.3V-12VInput Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.Drive Mode：External ACCSafe temperature range：<60 ℃Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )Life Time：10000-20,000 hours

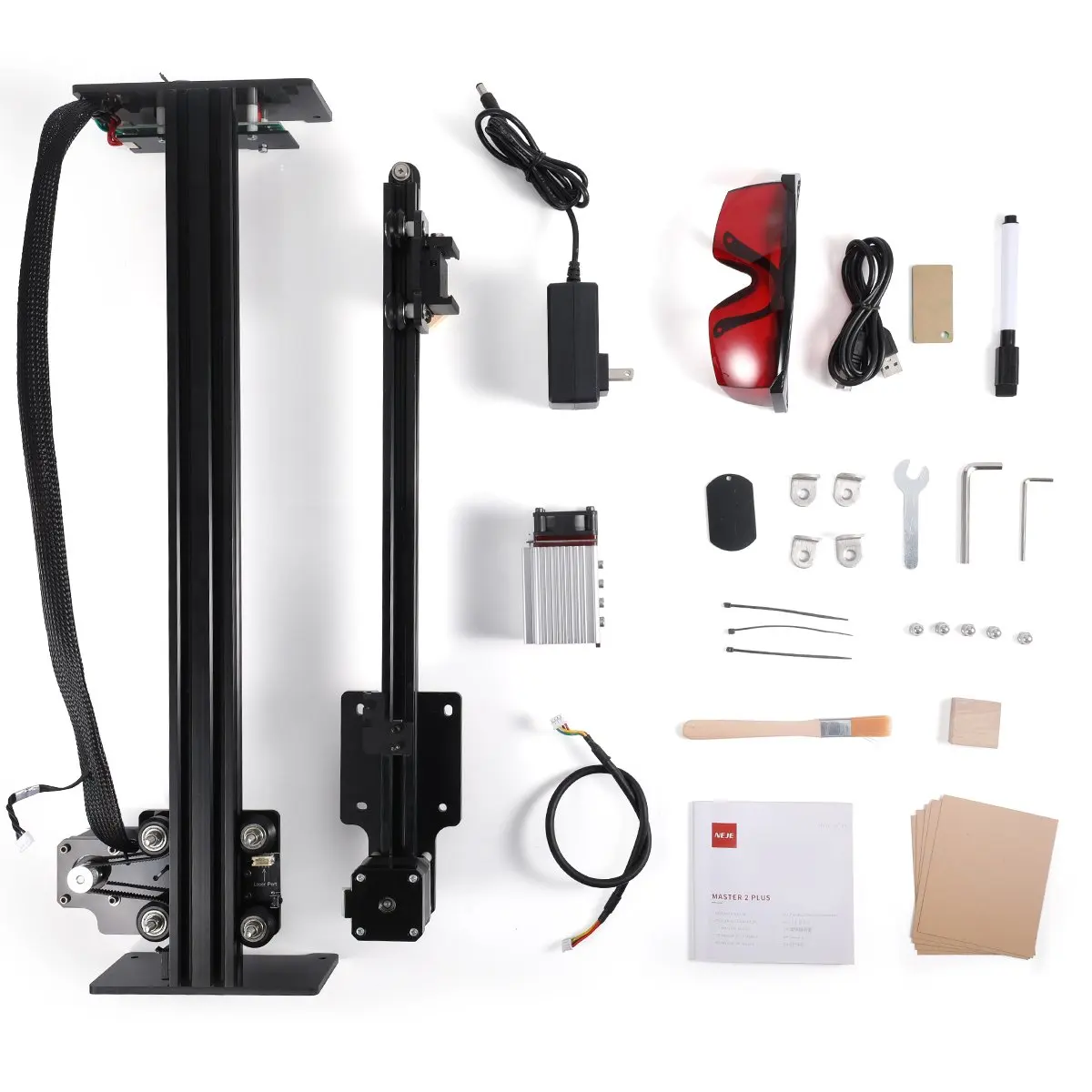

 Package List1* Laser engraving machine1* A40640/N40630 laser module1* 12V 4/3A power supply (A40640 with 12V4A,N40630 with 12V3A)1* European standard adapter1* Manual1* Red glasses1* Data cable1* wooden board5* paper1* pen1* brush1* focusing film4* angle iron1* alumina film3* cable tie5* nut1* large hexagon wrench1* small hexagon wrench1* Open wrench Please NoteIf there is a customs spot check, the customs duty is borne by the customer,hope you can understand.Do not accept bad reviews and disputes due to tariffs.
