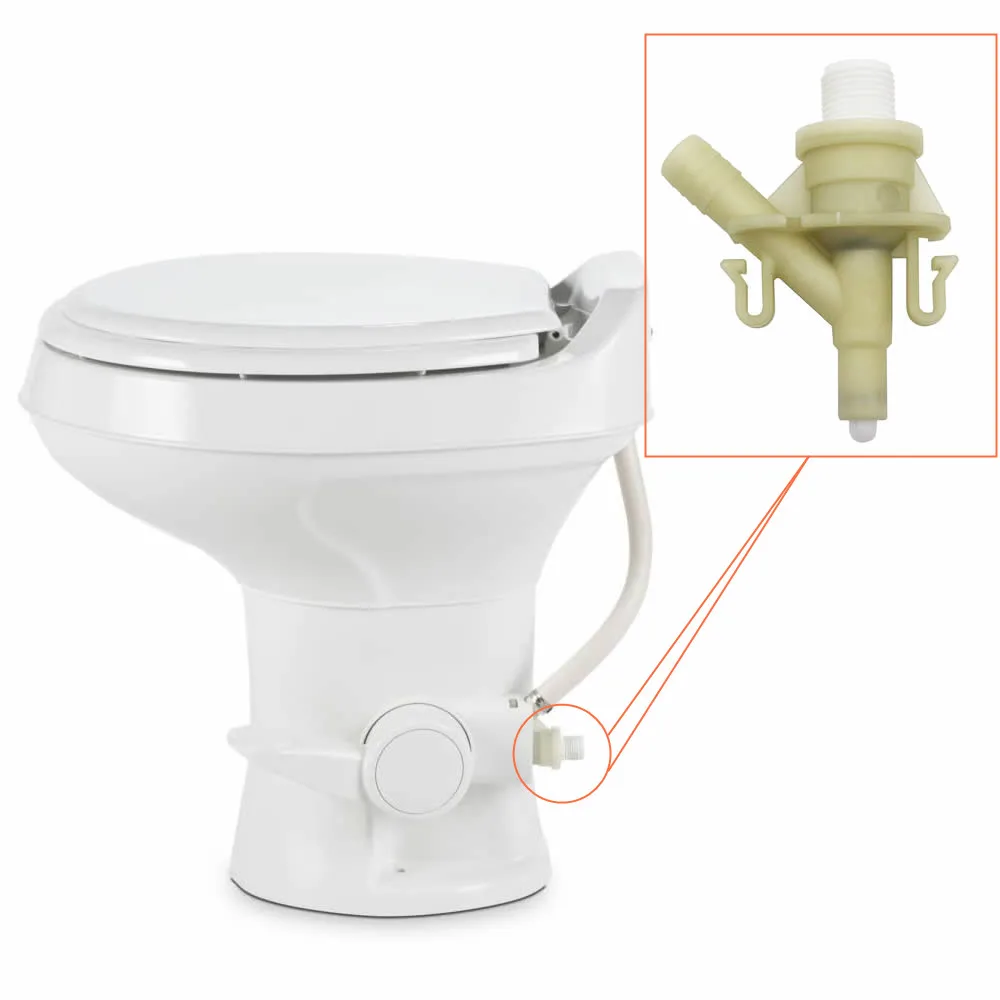

385311641 Plastic Water Valve Kit Durable for 300 310 320 Series - for Sealand Marine Toilet Replacement

RV Parts & Accessories>>>Automobiles & Motorcycles

Origin CN(Origin)

Item Diameter 2inch

Item Height 4inch

Item Length 2inch

Material Type Plastic

Item Weight 48g

Special Features Valve

Item Width 2inch

Model Name WVK01

Ships From

China

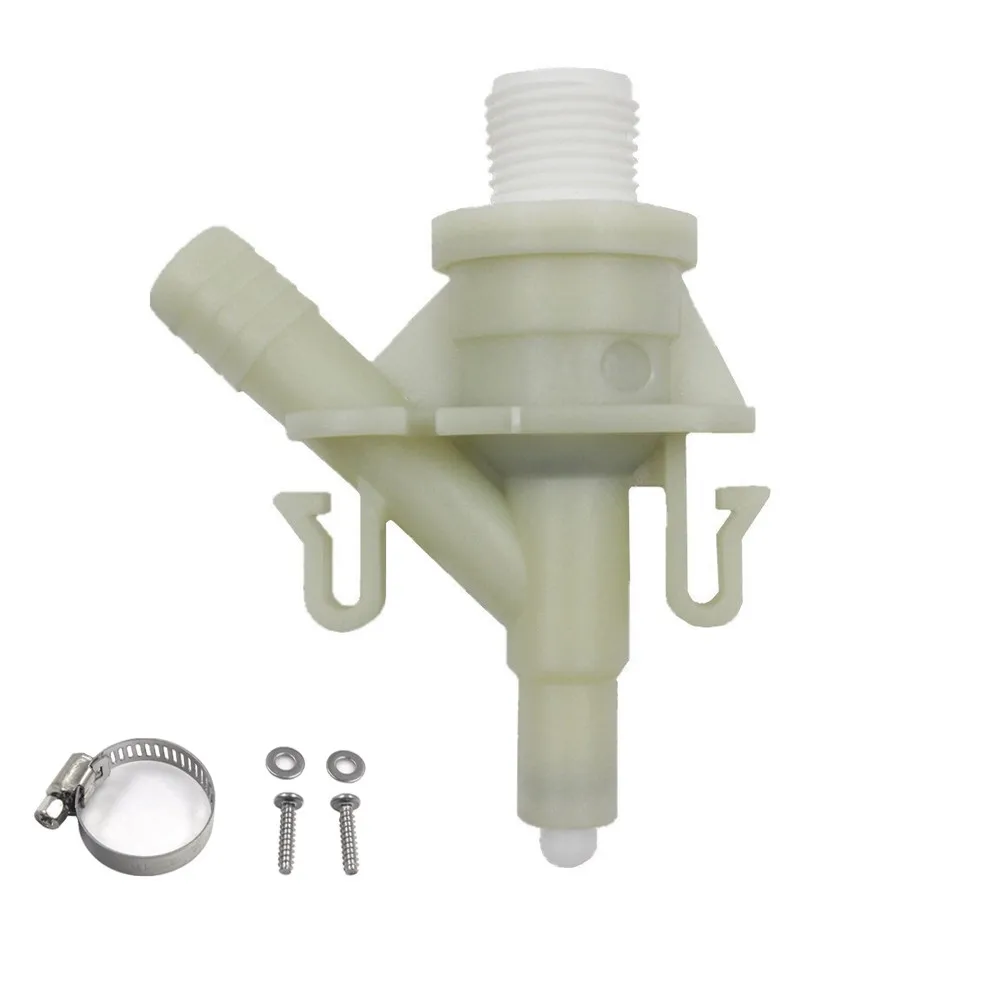

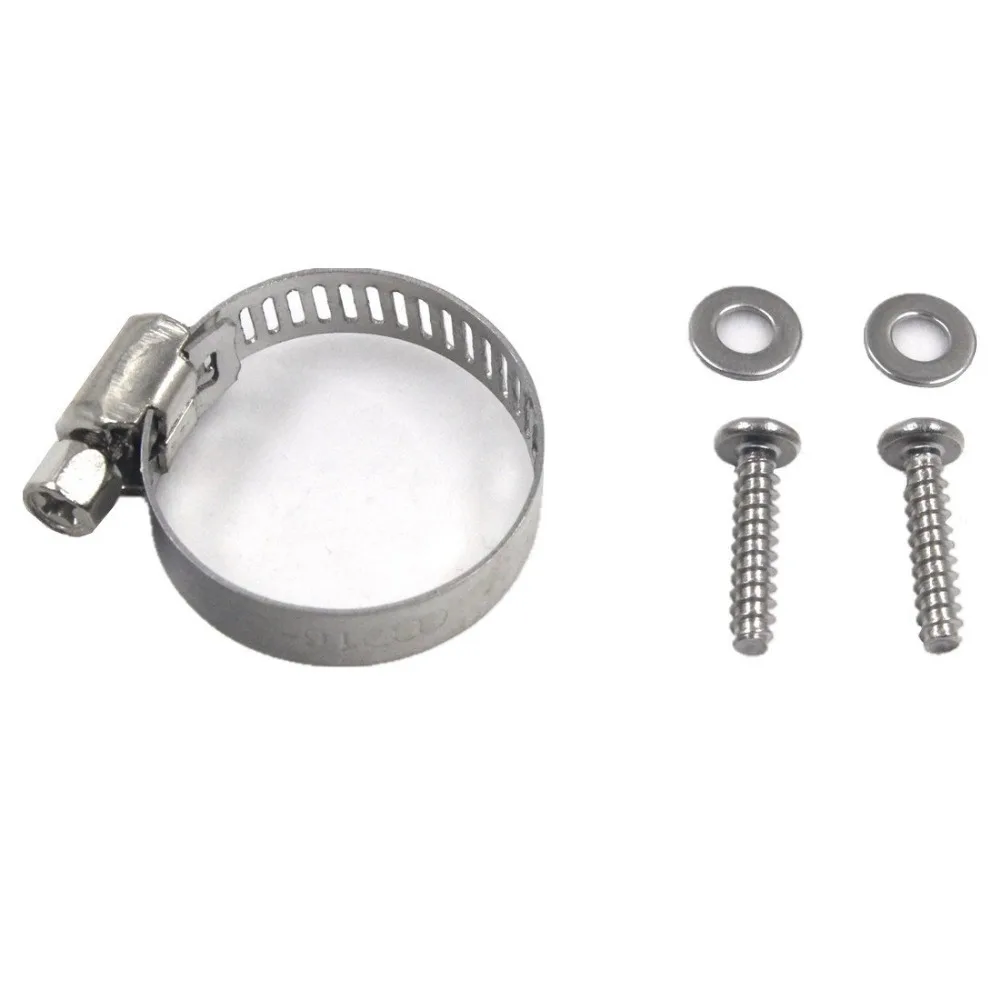

Water Valve Kit 385311641 for RV Camper Vacu-flush & Dometic 300 310 320 seriesDurable Plastic Water Valve kit 385311641 For water valve on 300 310 320 series pedal-flush Toilets Also can works on RV Camper Vacu-flushSteps to replace Dometic water valve kit:Step 1: Turn off the water supply.Step 2: Disconnect the water supply line from the water valve. Use wrench to lose.Step 3: Press the flush pedal to drain water from the toilet bowl.Step 4: Disconnect water line to vacuum breaker clip.Step 5: Press top and possibly bottom latches at the same time to release, then pull water val out of housing.Step 6: Push new water vale into place until latches engage. If necessary, use fasteners to secure water valve.Step 7: Connect water line to vacuum breaker with the supplied clamp.Step 8: Connect water supply line to water valve.Step 9: Turn on water supply to toilet. Flush several times to check for leaks.
