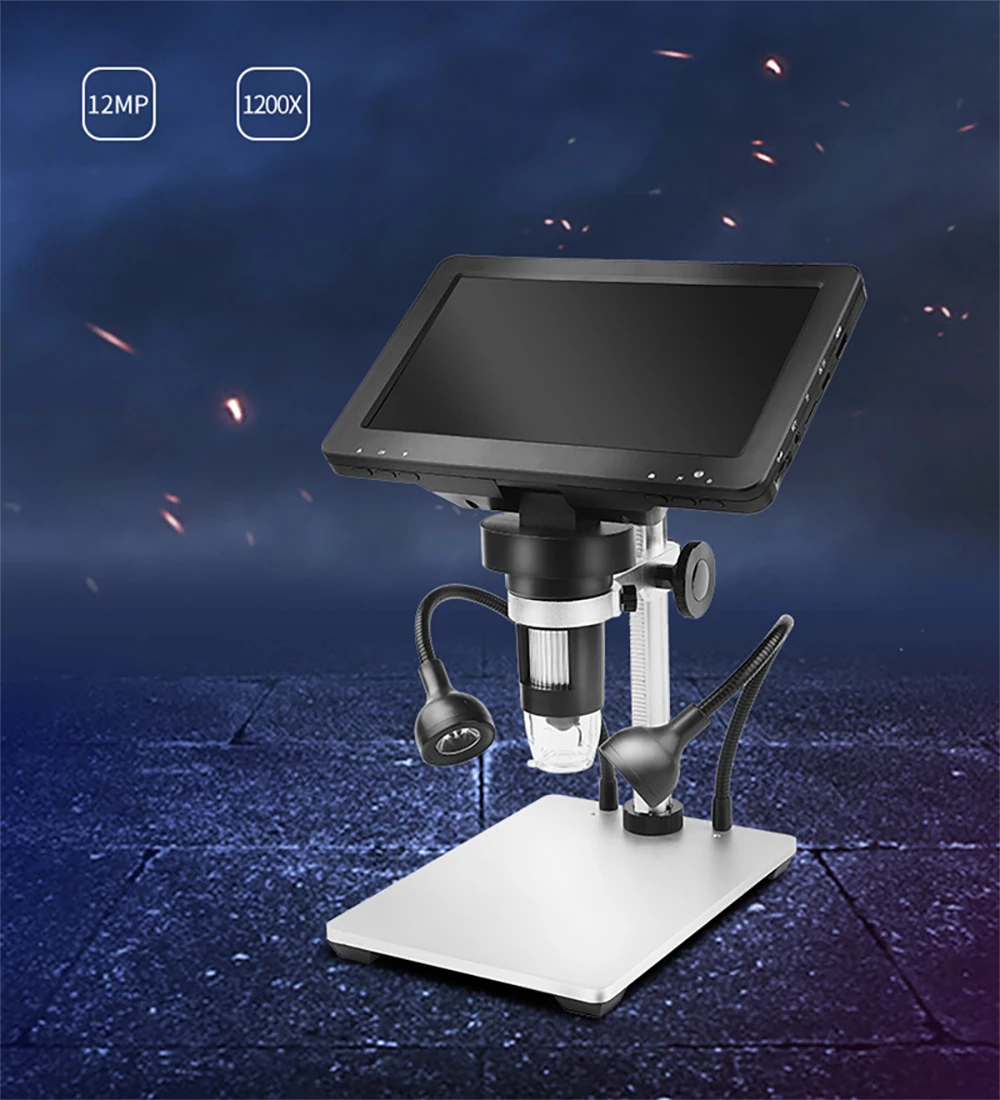

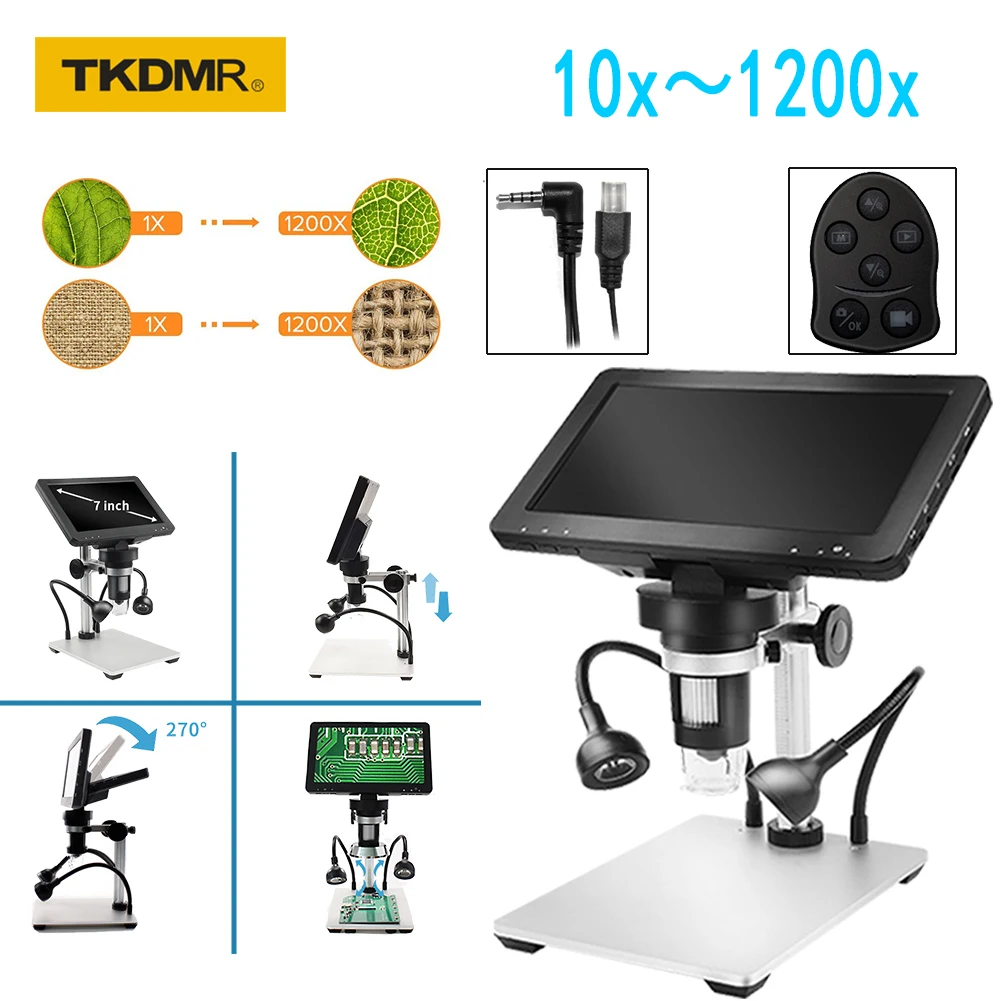

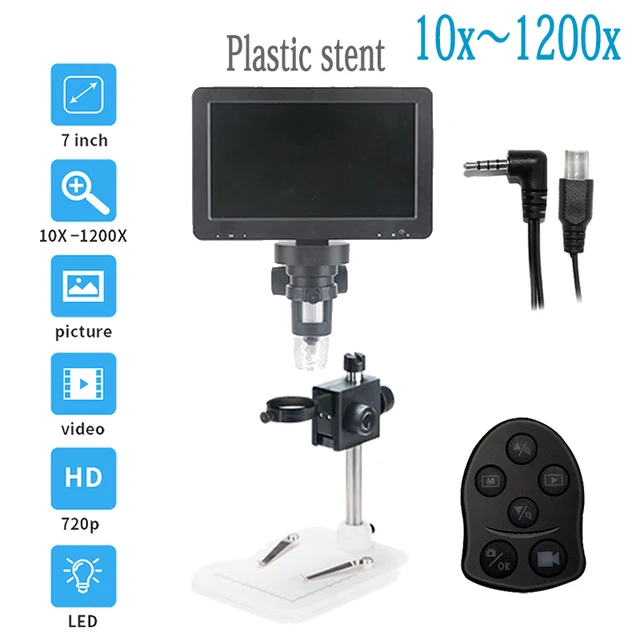

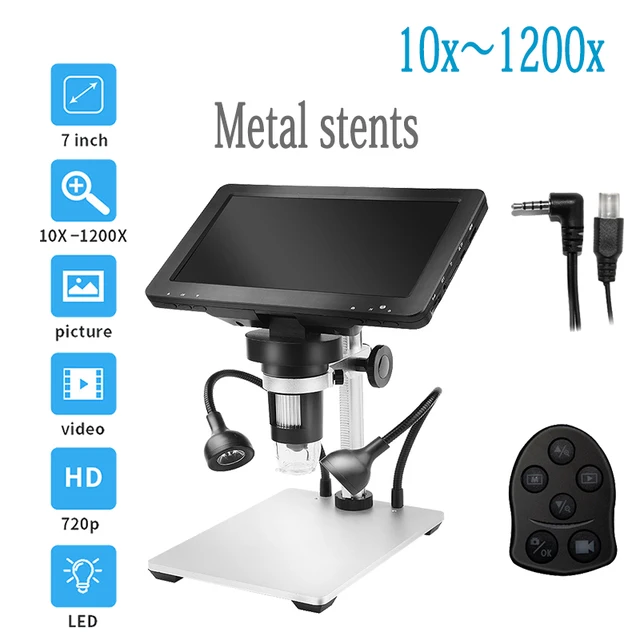

TKDMR 12MP 1200X USB Digital Microscope for Electronic 7 Inch Display 8 LED Magnifier Wire Control for PCB Motherboard Repairing

Optical Instruments>>>Tools

Brand Name TKDMR

Certification CE

Origin CN(Origin)

Magnification Ratio 500X - 1500X

Model Number DM9

Is Smart Device no

Material Metal

Features High Definition

Features Digital

Theory Video Microscope

Drawtube Monocular

Instrument magnification 10x-1200x

Scope of application Teaching the maintenance of jewelry antiques

Eepiece magnification 1000

type Electron microscope

The magnification of the objective lens 1000

Ships From

China

SPAIN

Russian Federation

Color

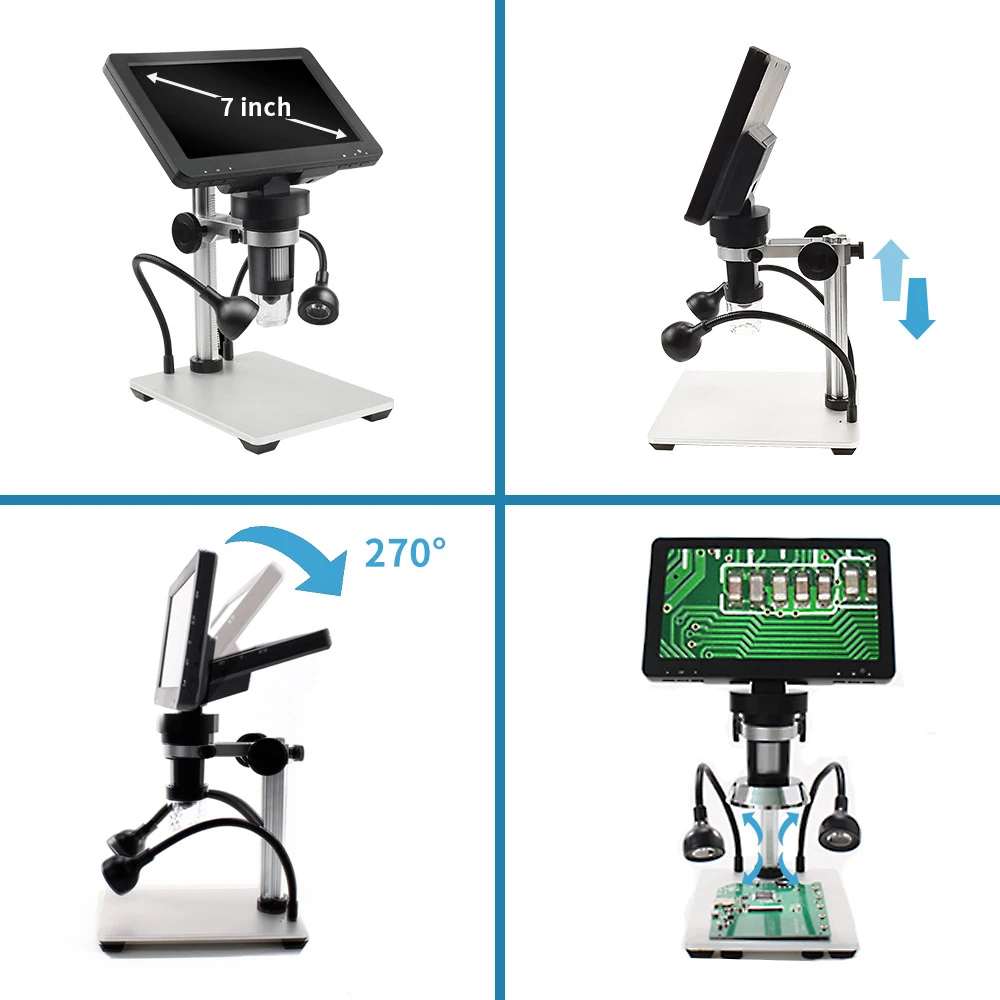

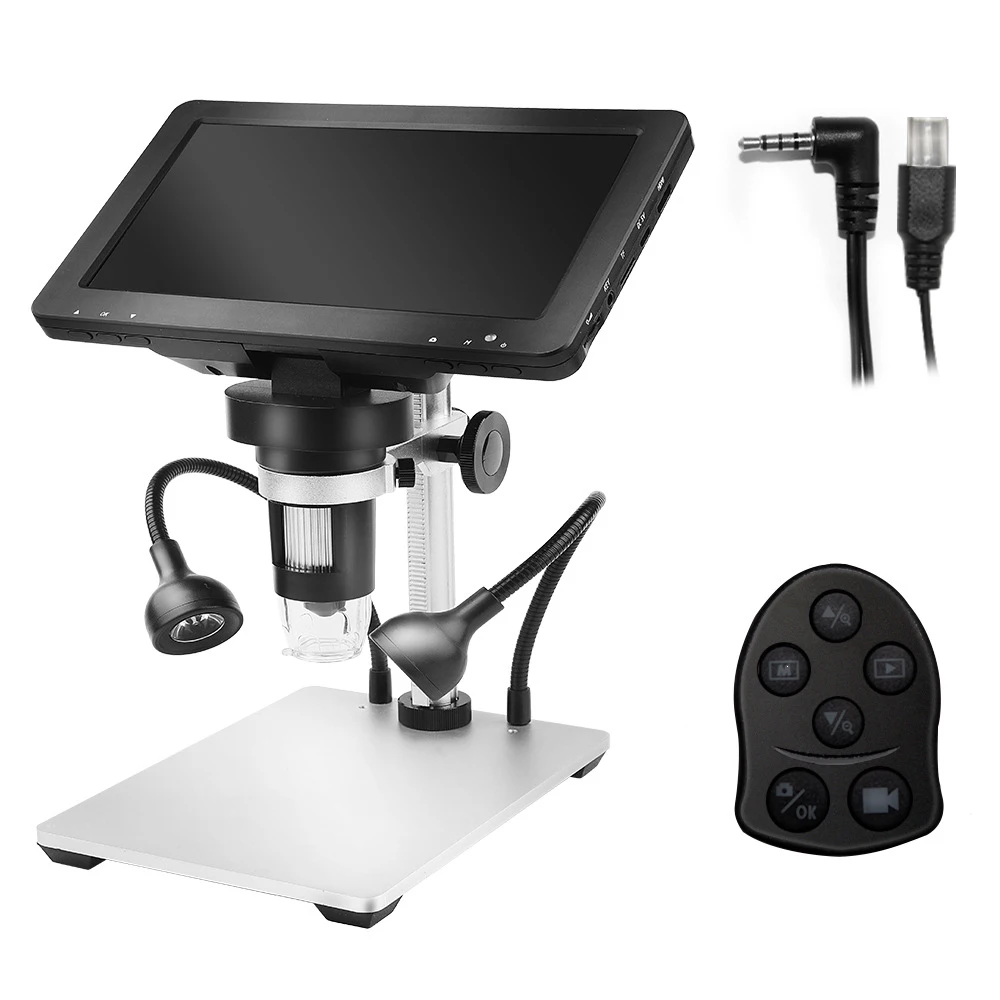

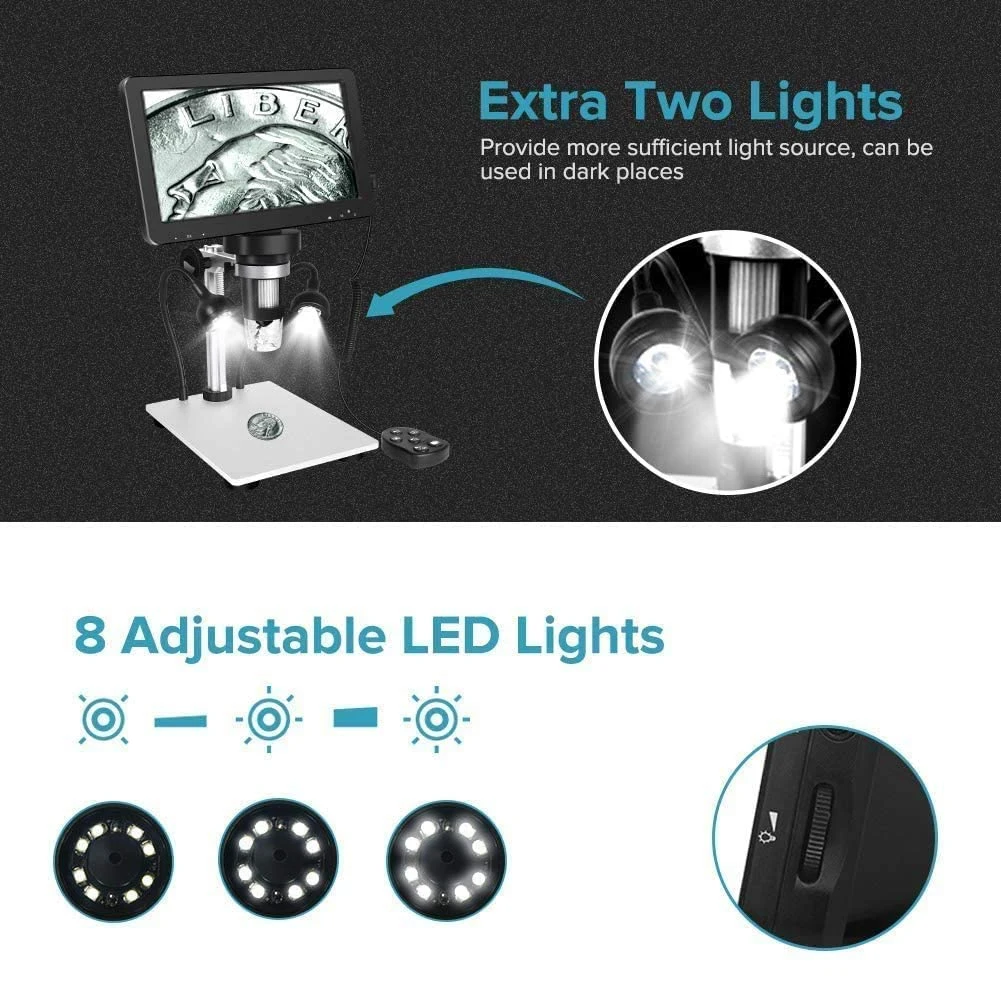

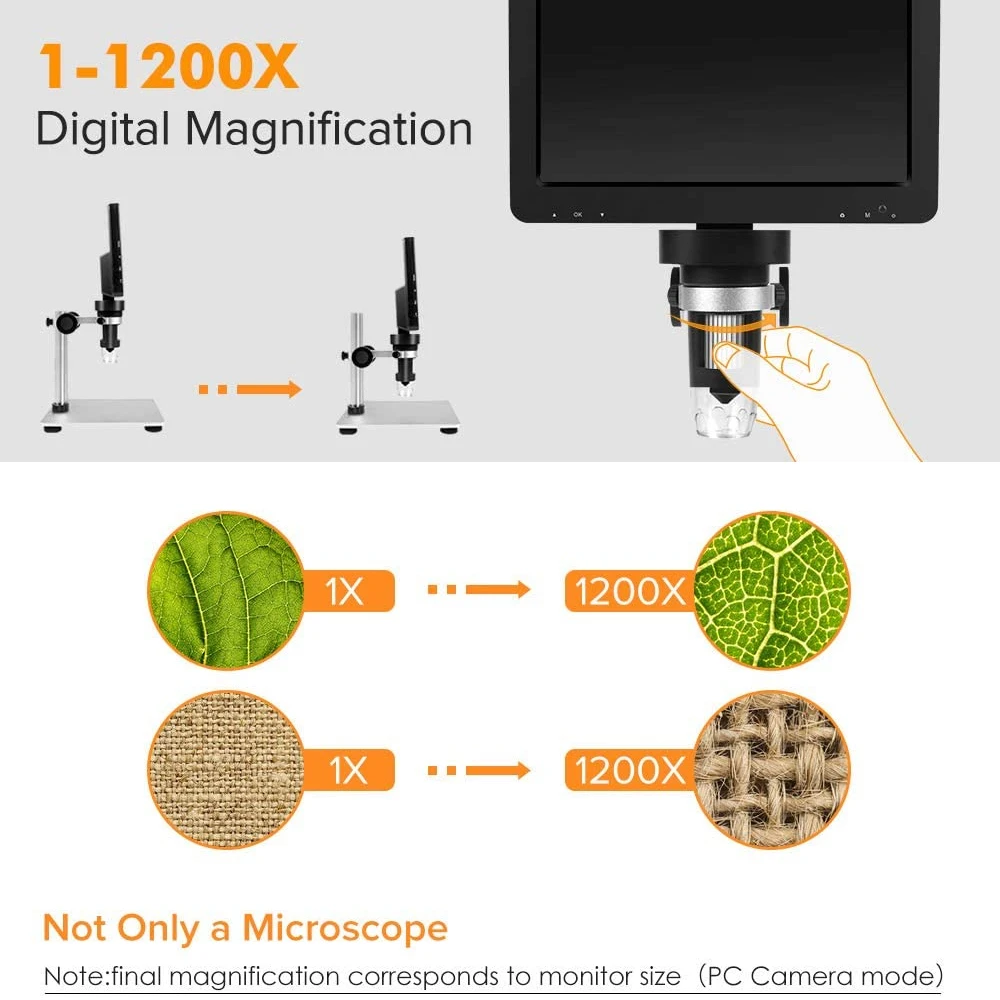

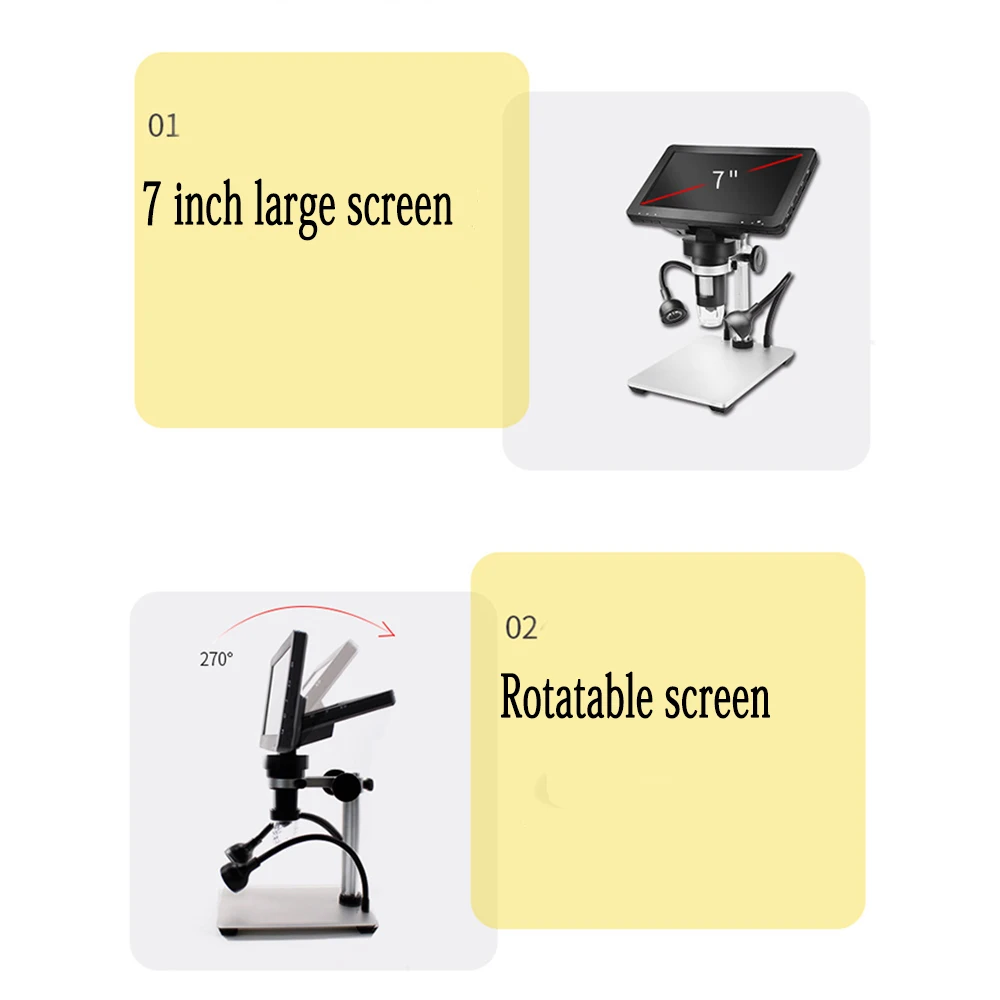

Product parameters:DM9 Maximum video pixel:1080fhd Lens optical size:1 / 4 " Camera resolution:12M, 10m, 8m, 5m, 3M Video resolution:1080fhd, 1080p, 720P Video format::AVI Focus mode:Manual Image format:jpg Magnification:1200X Digital zoom:support Light source:8 LED lights (brightness adjustable) Focusing range:10 ~ 40mm PC resolution and image transmission rate:1280 * 720 / 30fps White balance:automatic Exposure:automatic PC operating system:Windows XP, win7, win8.1, win10, Mac OS X 10.5 or higher Supporting languages:12 languages Lens structure:2G + IR Aperture:f4.5 Lens angle:16 degrees Interface and signal transmission mode:micro / USB1.1 Operating temperature:- 20 ° C to + 60 ° C Working humidity:30% ~ 85% RH Working current:700mA Power consumption:3.5W Package Included: DM9 DMP package content*1 Microscope body * 1 Bracket * 1 Manual * 1 Correction ruler * 1 reflector * 1 Remote control by wire * 1 USB data cable * 1 Installation CD (including driver software, measurement software, system components, user manual) * 1     1: 7 inch HD large screen 7 inch high-definition large screen, no matter taking photos or recording In terms of image analysis and detection, all kinds of Operation can be observed more clearly, convenient and light It can meet the visual needs. 2: Rotatable screen Rotatable screen, front and rear adjustment screen angle It can be adjusted up to 270 ° according to the actual operation If necessary, adjust the appropriate screen angle, Make work more convenient. 3: Super long working distance The working distance is up to 10cm, which is conducive to mobile phone maintenance PCB inspection and other staff for spot welding, etc It's more convenient to work. 4: Remote control by wire Wired function remote control, - key to call up the menu, cut Do not touch the host in the process of shooting, so that the object The observation is more stable, the shooting is more clear, and it is beneficial It can be used to observe, identify and detect all kinds of work. 5: External fill light The bracket is externally connected with a fill light, which can not only deal with many problems This kind of lighting problem in complex environment can also be solved The reflection problem of objects under the illumination of light, for you It is convenient to observe. 6: Free reflector

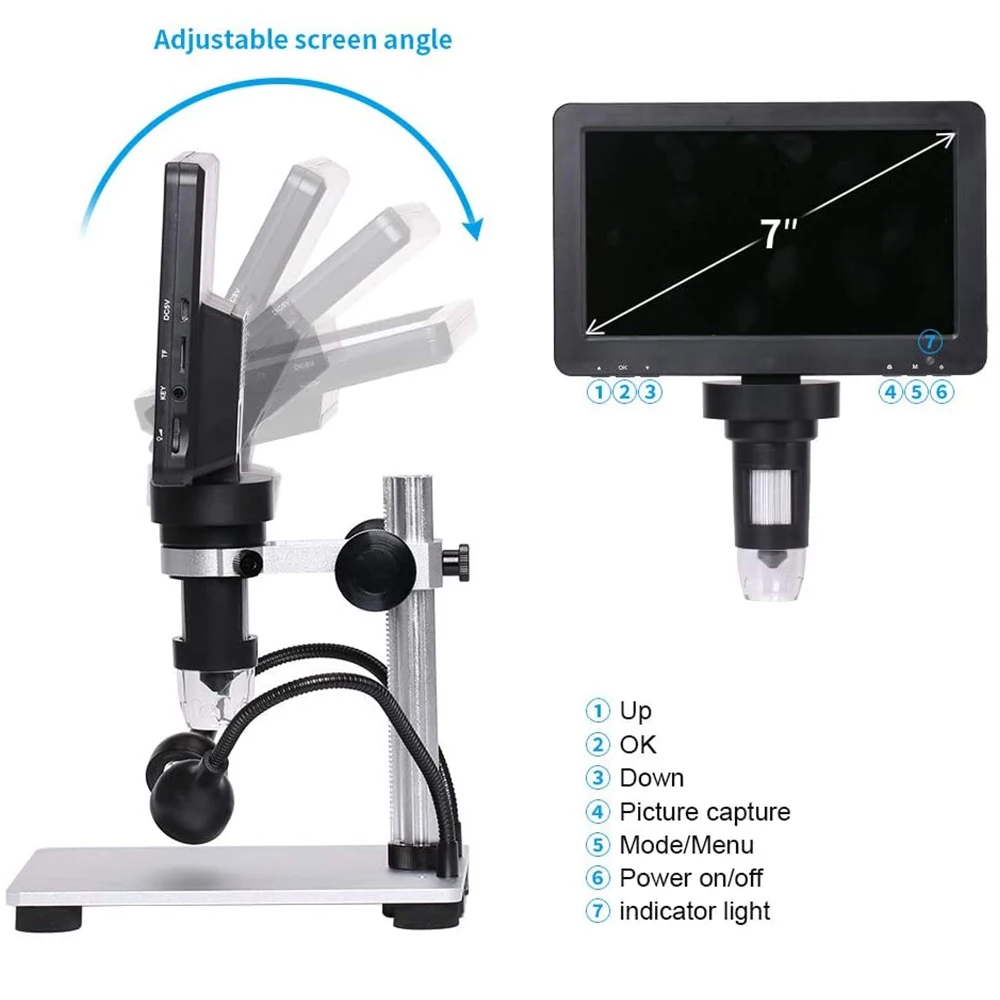

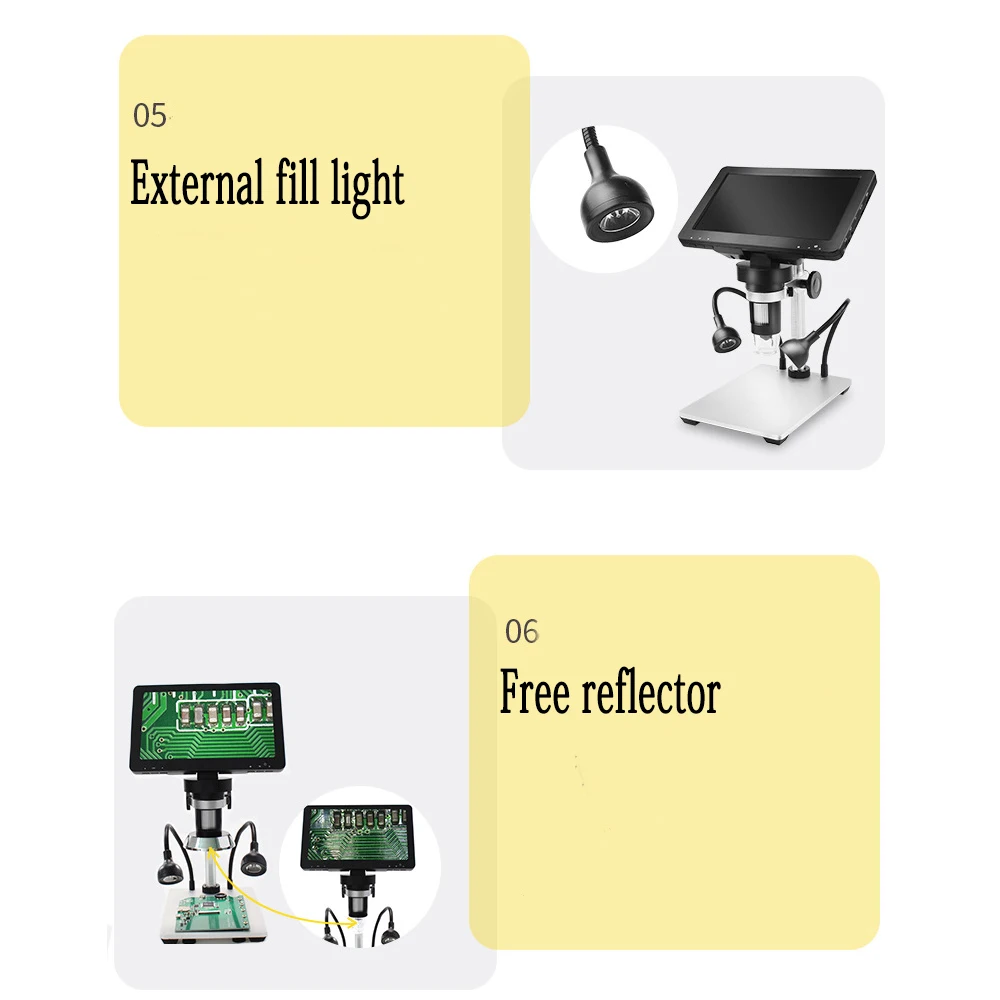

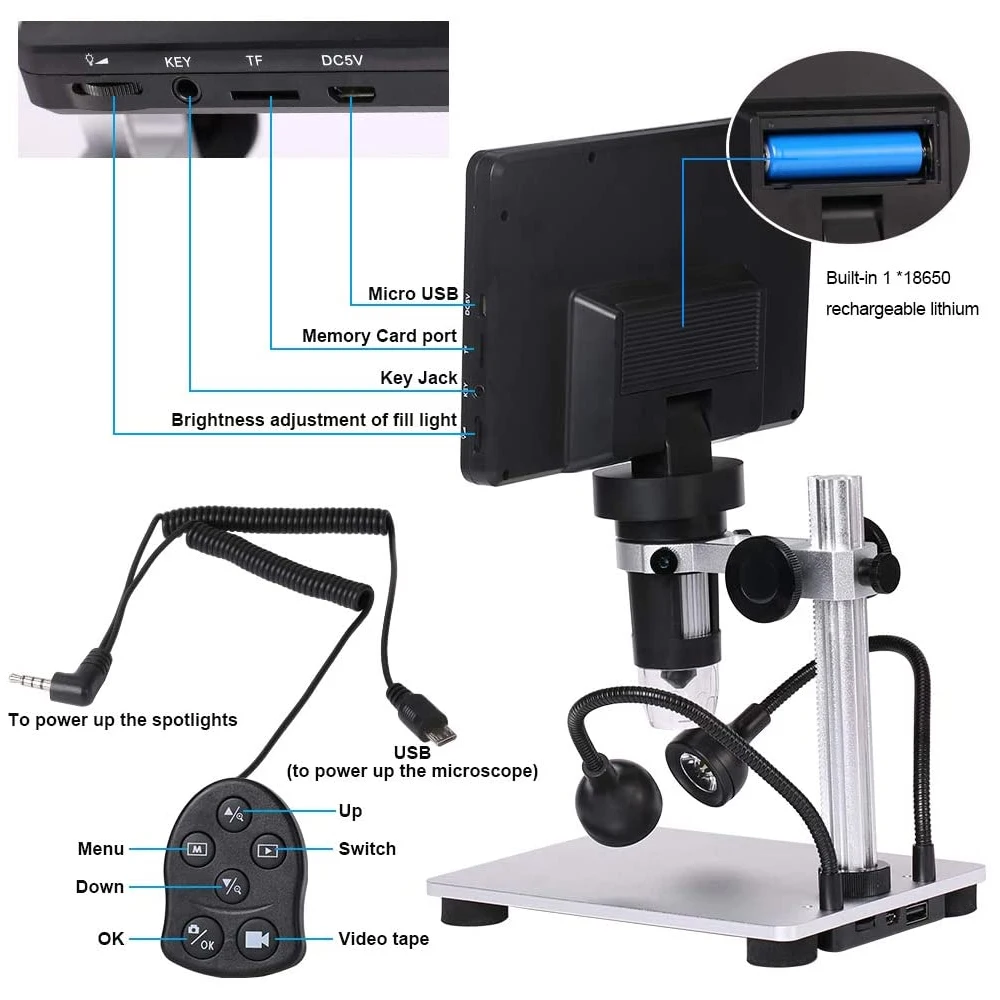

Free reflector to solve some problems Counter measures encountered by road board objects during observation and maintenance The problem of light. Usage: first, remove the mirror from the microscope product Head shield, install reflectors and turn on lights Observe objects. A:brightness adjustment of fill light: turn the brightness adjustment knob (Mark 14) to turn it on Adjust the temperature. B:key socket: through this socket, the equipment is connected with the wire control and external supplementary light. C:tf card socket: support minimum 8gbc10, maximum 32gbc10 (please select C10 specification). D:micro USB interface: 1. When the power of the device is low, connect the charger to charge the device It is not recommended to use the device (it will reduce the service life of the device battery). 2. Use USB with signal cable to connect computer terminal and enter PC memory mode/ Camera mode / charging mode. When the USB signal cable is pulled out, the device will turn off in 5 seconds Automatic shutdown. 1:up selection: when entering the menu or storing information, different options can be made through this key Switch between.. 2:0k key: after entering different modes in the power on state, press this key briefly to take photos Start recording and end recording. After entering the menu, you can confirm the selection by briefly pressing this keyChoose. 3:down selection: when entering the menu or storing information, different options can be made through this key Switch between. 4:Photo Key: after entering the photo mode in the power on state, press this key briefly to take photos 5:menu key: in the power on state, short press this key to call up and exit the menu; long press This key can be used to switch between the two modes of photographing and playback. 6:on / off key: in the off state, long press this key to turn on the device. Under power on state Long press this key to turn off the device.
