Wheels Tires & Parts>>>Automobiles & Motorcycles
Brand Name sopedar
Origin CN(Origin)
Material Mental & rubber
Model Number E01AP08ZD
Color
1/4pcs 13598773 TPMS Tire Pressure Monitoring Sensor 433 MHz For Cadillac CT6 XT5 SRX Chevrolet Malibu Opel Antara Bolt Mokka

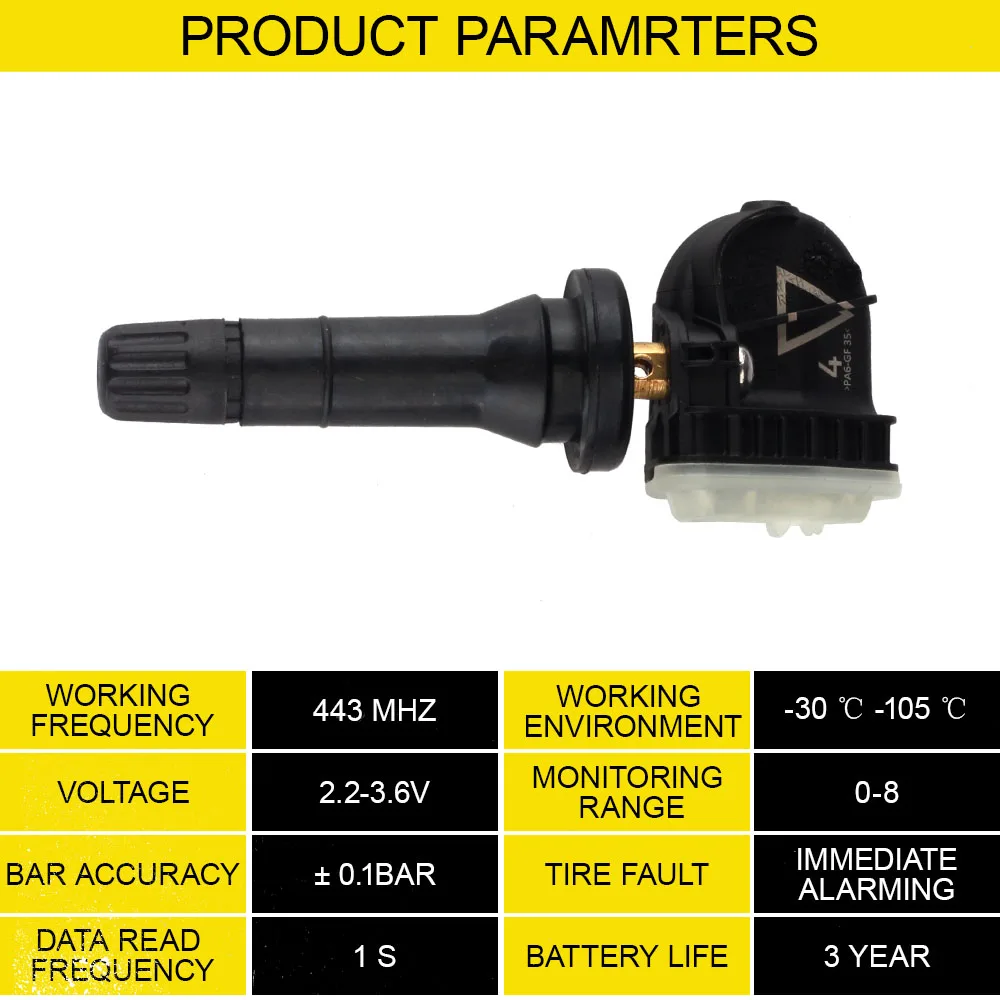

Product parameters:
Working frequency:433 Mhz
Working environment: -30 ℃ -105 ℃
Voltage: 2.2-3.6V
Monitoring range: 0-8
Bar Accuracy: ± 0.1Bar

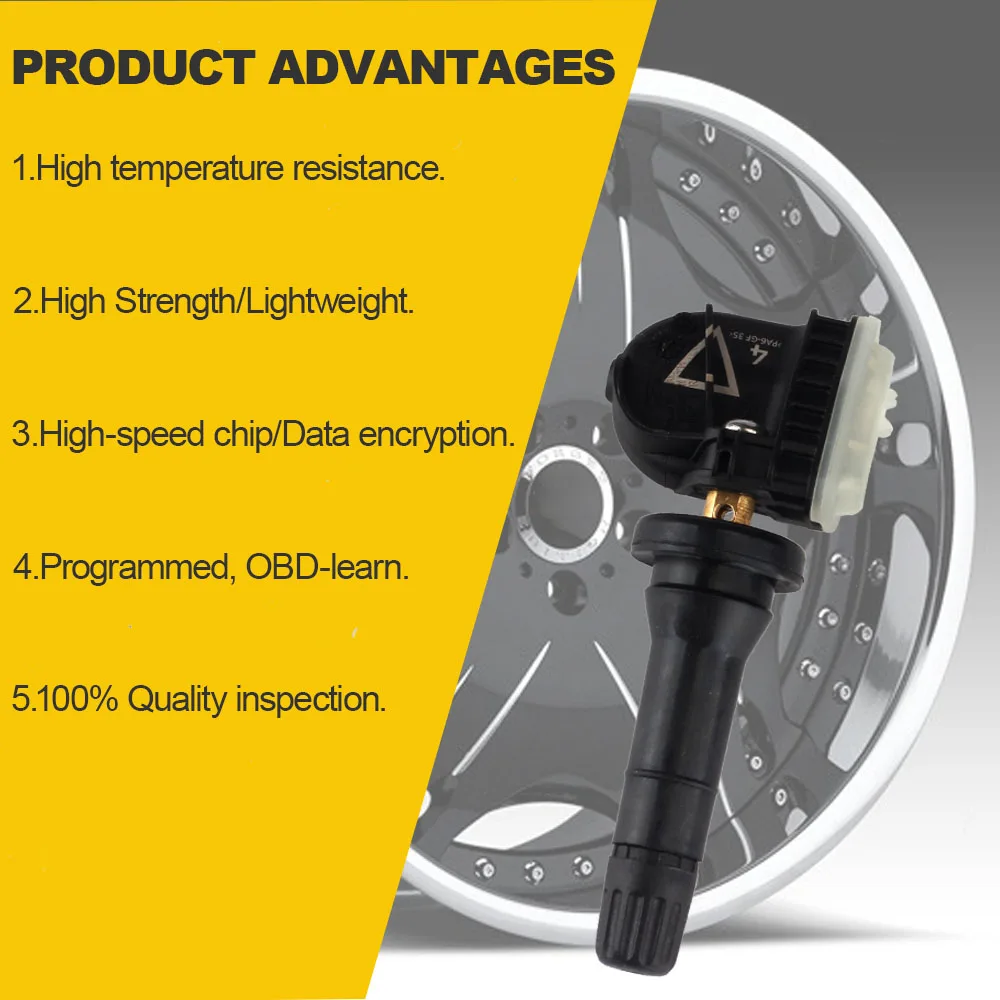

FEATURES：

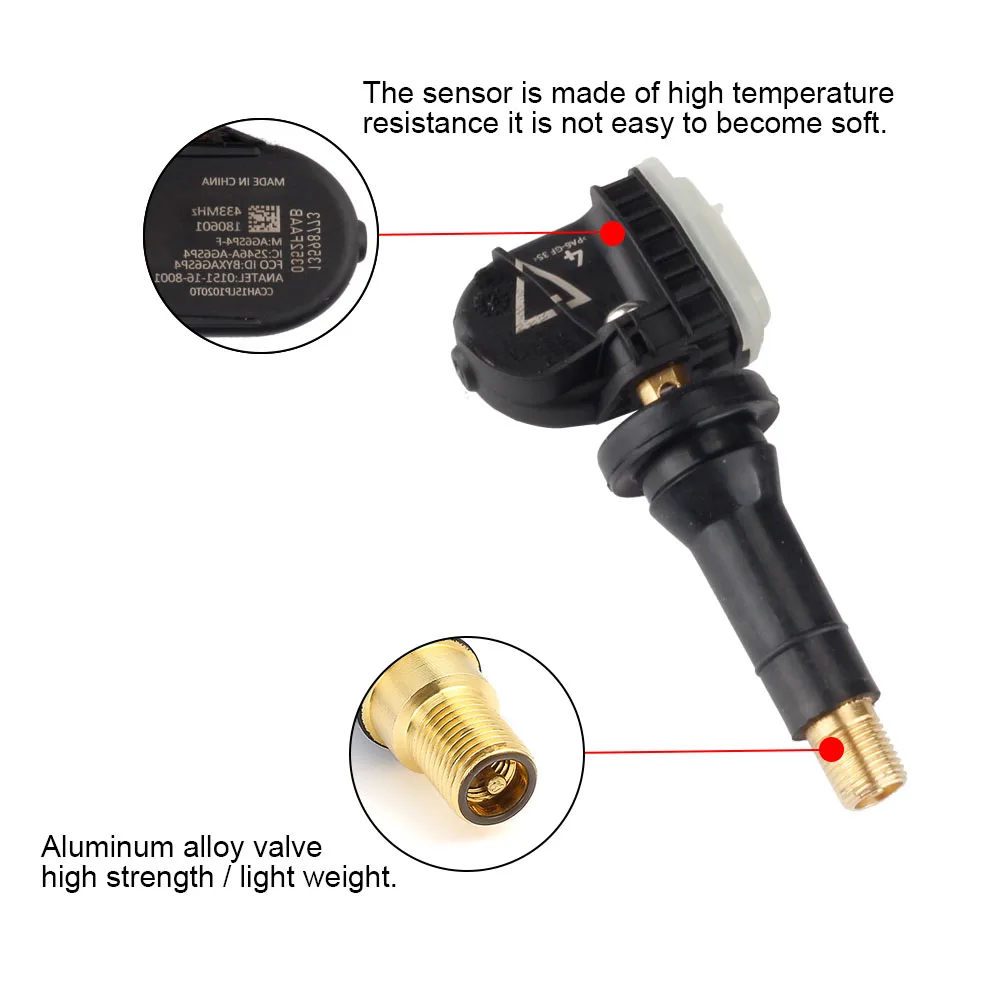

1. The sensor is made of high temperature resistant, not easy to become soft and deformed
2. Aluminum alloy valve, high strength / lightweight
3. High speed chip: data encryption, complete algorithm with the same function as the original factory, low power consumption, strong anti-interference
4: The product has been programmed without programming, OBD learn
5. Every product sold is subject to strict quality inspection
Installation process
1. Loosen the tire: remove the valve cover and inner core, and deflate the tire.
2. Remove the tire: clamp the tire on the tire changer and adjust the valve at 1 o'clock position relative to the tire separation head. Insert the tyre tool and lift the tyre bead onto the mounting head to fold the buckle.
3. Remove the sensor: use a screwdriver to remove the fastening screw and sensor from the valve stem, then loosen the nut and remove the valve.
4. Install the sensor and valve: slide the valve rod through the valve hole of the rim. Tighten the nut with the help of the locating pin to 4.0 nm. Install the sensor body on the rim and tighten the screws.
5. Install the tire: place the tire on the rim and make sure that the valve is 180 degrees away from the separation head. Install the tire on the rim.
No sensor programming Required
The Tire Pressure Sensor is 100% new and come pre-programmed specifically for your make/model/year of vehicle,need activate them by scal tool or "re-learning".
Simplified Relearn : OBDII required
Installation of TPMS is recommended to be performed only by trained professionals.
OE NO：
13506028 13594222 20925925
13506028 13598787 22853740
13581561 1805BA0131NA 25774007
13589601 20922901 25789964
Package:
1 / 4 pcs TPMS sensor
Weight: 23g （Pcs×1）
Color: Black
Compatibility:
For BUICK ALLURE 2009
For BUICK ENCLAVE 2009-2017
For BUICK LACROSSE 2009
For BUICK LUCERNE 2007-2011
For CADILLAC CTS 2008-2013
For CADILLAC DTS 2007-2011
For CADILLAC ESCALADE 2007-2013
For CADILLAC SRX 2007-2009
For CADILLAC STS 2009-2011
For CHEVROLET AVALANCHE 2007-2013
For CHEVROLET AVEO 2007-2011
For CHEVROLET AVEO5 2007-2011
For CHEVROLET CAPTIVA SPORT 2012-2015
For CHEVROLET COBALT 2008-2009
For CHEVROLET EXPRESS 1500 2010-2014
For CHEVROLET EXPRESS 2500 2010-2017
For CHEVROLET EXPRESS 3500 2010-2017
For CHEVROLET EXPRESS 4500 2010-2014
For CHEVROLET HHR 2008-2011
For CHEVROLET IMPALA 2007-2013
For CHEVROLET IMPALA LIMITED 2016
For CHEVROLET MALIBU 2008-2012
For CHEVROLET MONTE CARLO 2007
For CHEVROLET SILVERADO 1500 2007-2013
For CHEVROLET SILVERADO 2500 2007-2013
For CHEVROLET SILVERADO 3500 2007-2013
For CHEVROLET SUBURBAN 1500 2007-2013
For CHEVROLET SUBURBAN 2500 2007-2013
For CHEVROLET TAHOE 2007-2013
For CHEVROLET TRAVERSE 2009-2017
For GMC ACADIA 2009-2016
For GMC ACADIA LIMITED 2017
For GMC SAVANA 1500 2010-2014
For GMC SAVANA 2500 2010-2017
For GMC SAVANA 3500 2010-2017
For GMC SAVANA 4500 2010-2014
For GMC SIERRA 1500 2007-2014
For GMC SIERRA 2500 2007-2015
For GMC SIERRA 3500 2007-2014
For GMC YUKON 2007-2013
For GMC YUKON XL 1500 2007-2013
For GMC YUKON XL 2500 2007-2013
For HUMMER H2 2008-2009
For PONTIAC G3 2009-2010
For PONTIAC G3 WAVE 2009
For PONTIAC G5 2009-2010
For PONTIAC G6 2009-2010
For PONTIAC G8 2008-2009
For PONTIAC GRAND PRIX 2008
For PONTIAC WAVE 2008
For SATURN AURA 2008-2009
For SATURN OUTLOOK 2009-2010
For SATURN VUE 2007-2010
For SUZUKI FORENZA 2007-2008
For SUZUKI RENO 2007-2008
