RC Helicopters>>>Toys & Hobbies
Brand Name GEPRC
Origin CN(Origin)
Remote Distance 300 meters
Video Capture Resolution 1080p FHD
Aerial Photography Yes
Controller Mode MODE1
Controller Mode MODE2
Control Channels 8 Channels
Recommend Age 12+y
Remote Control Yes
Package Includes Original Box
Package Includes Operating Instructions
Package Includes Camera
Material Metal
Material plastic
Material Carbon Fiber
Controller Battery none
Indoor/Outdoor Use Indoor-Outdoor
Dimensions 2.5 inch
Warning Minors please use under the supervision of an adult
Motor Brushless Motor
Model Number SKIP-HD-2.5
Plugs Type XT30
Power Source Electric
Type HELICOPTER
Operator Skill Level Beginner
Operator Skill Level Intermediate
Operator Skill Level Expert
State of Assembly Almost Ready
Flight Time 5 minutes
Features App-Controlled
Color
PNP(No Receiver) 1
PNP(No Receiver) 2
Frsky XM 1
Frsky XM 2
Frsky RXSR 1
Frsky RXSR 2
Flysky FSV8S V2 1
Flysky FSV8S V2 2
Camera Option:
RunCam Split 3 Nano (Code 1)
Caddx baby turtle V2(Code 2)
Summary:

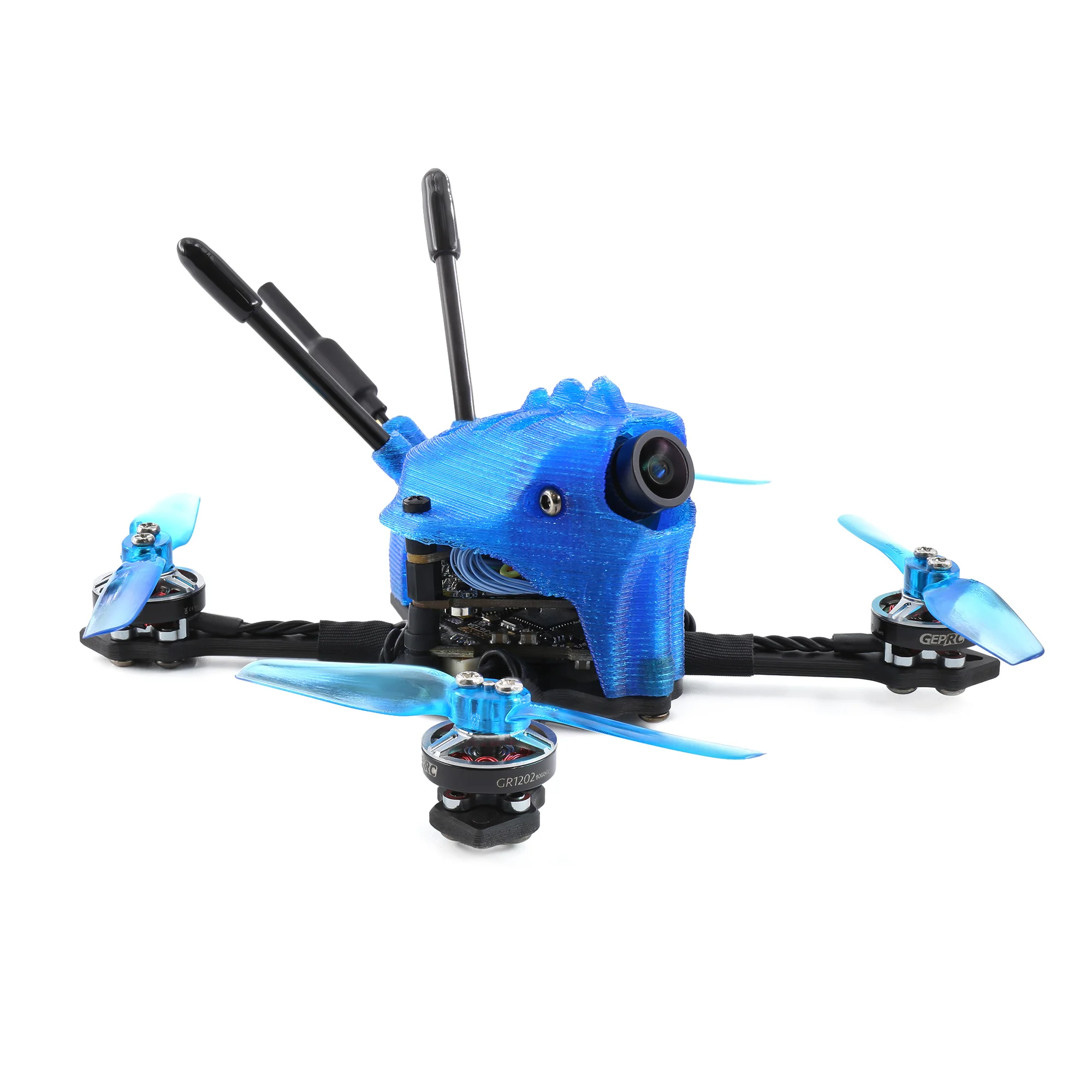

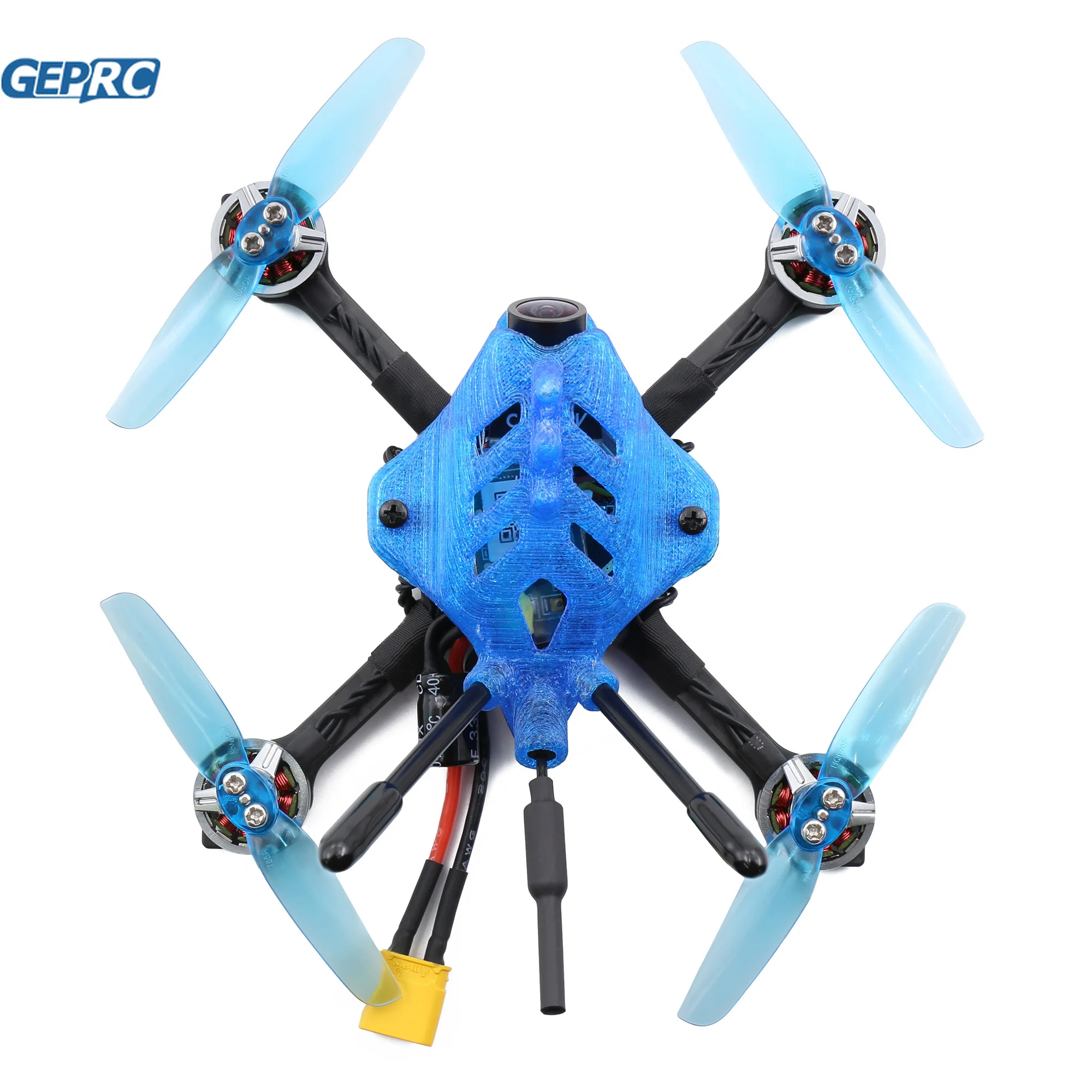

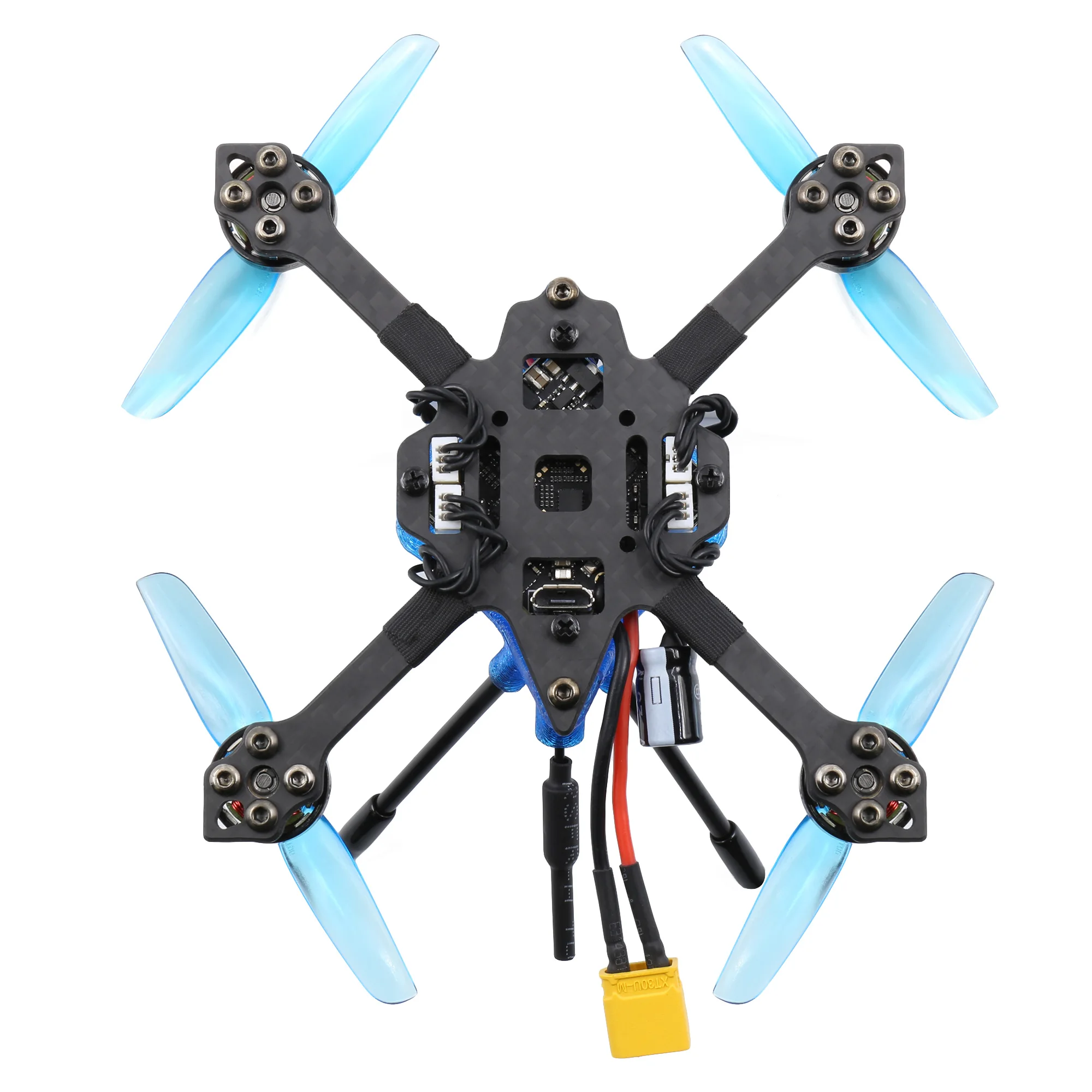

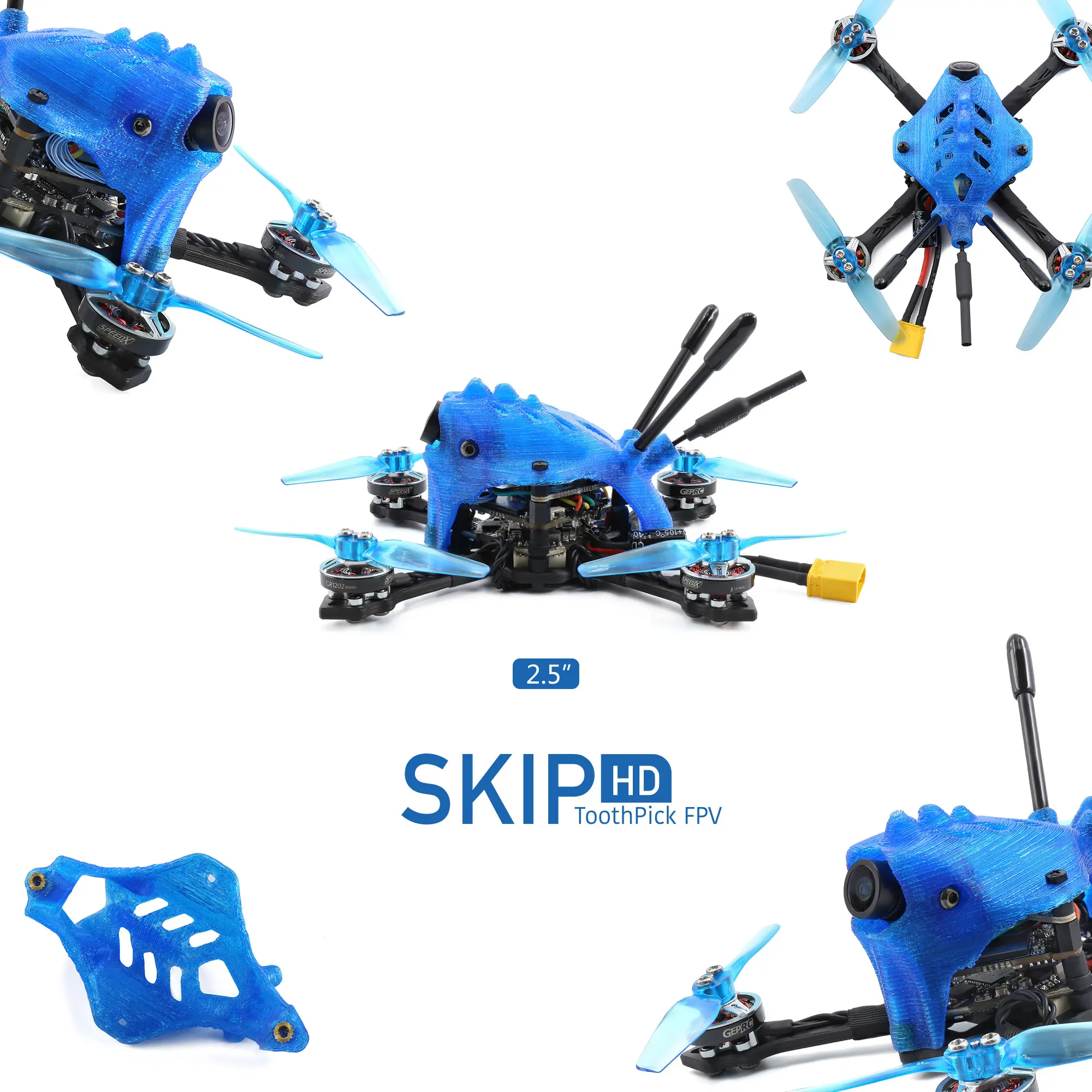

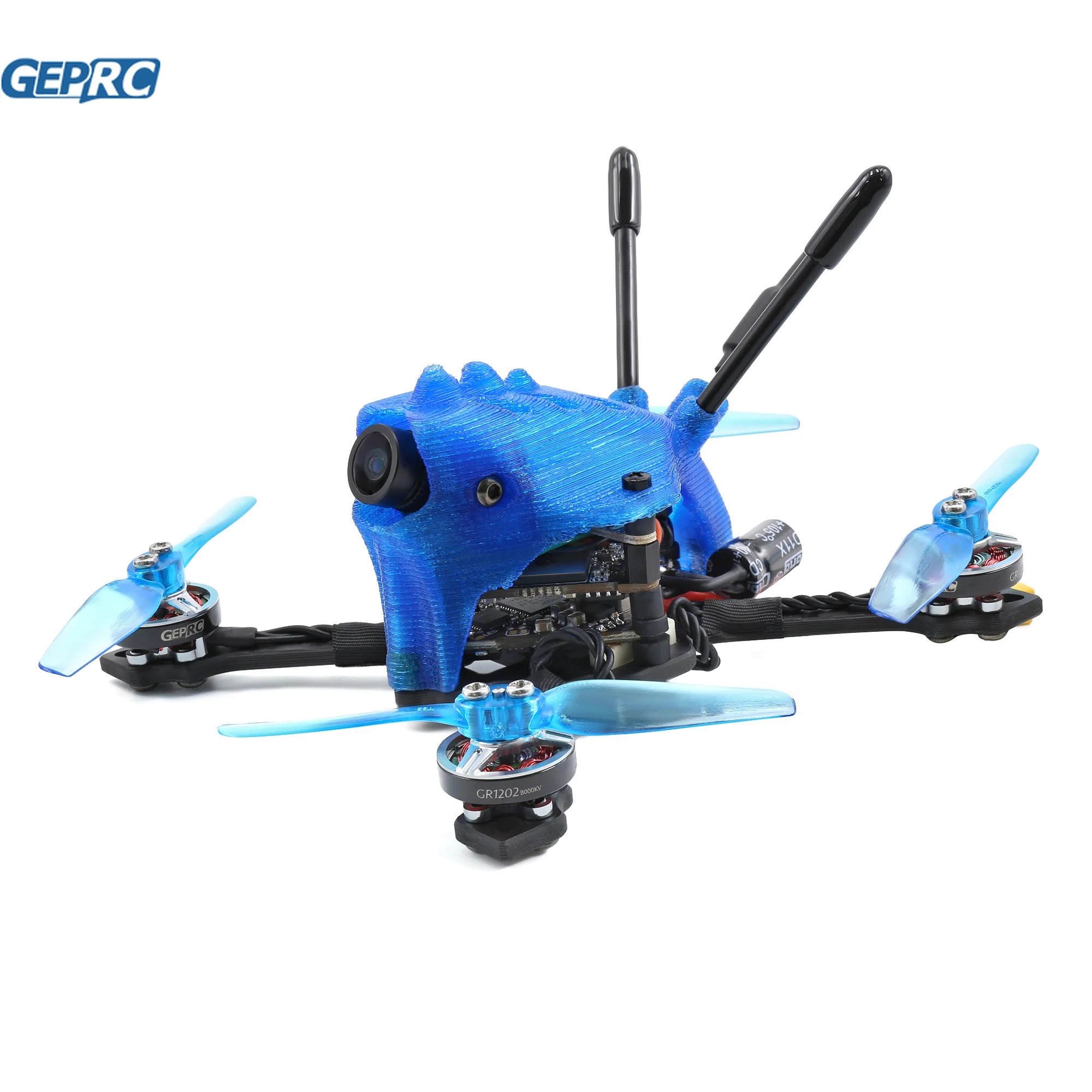

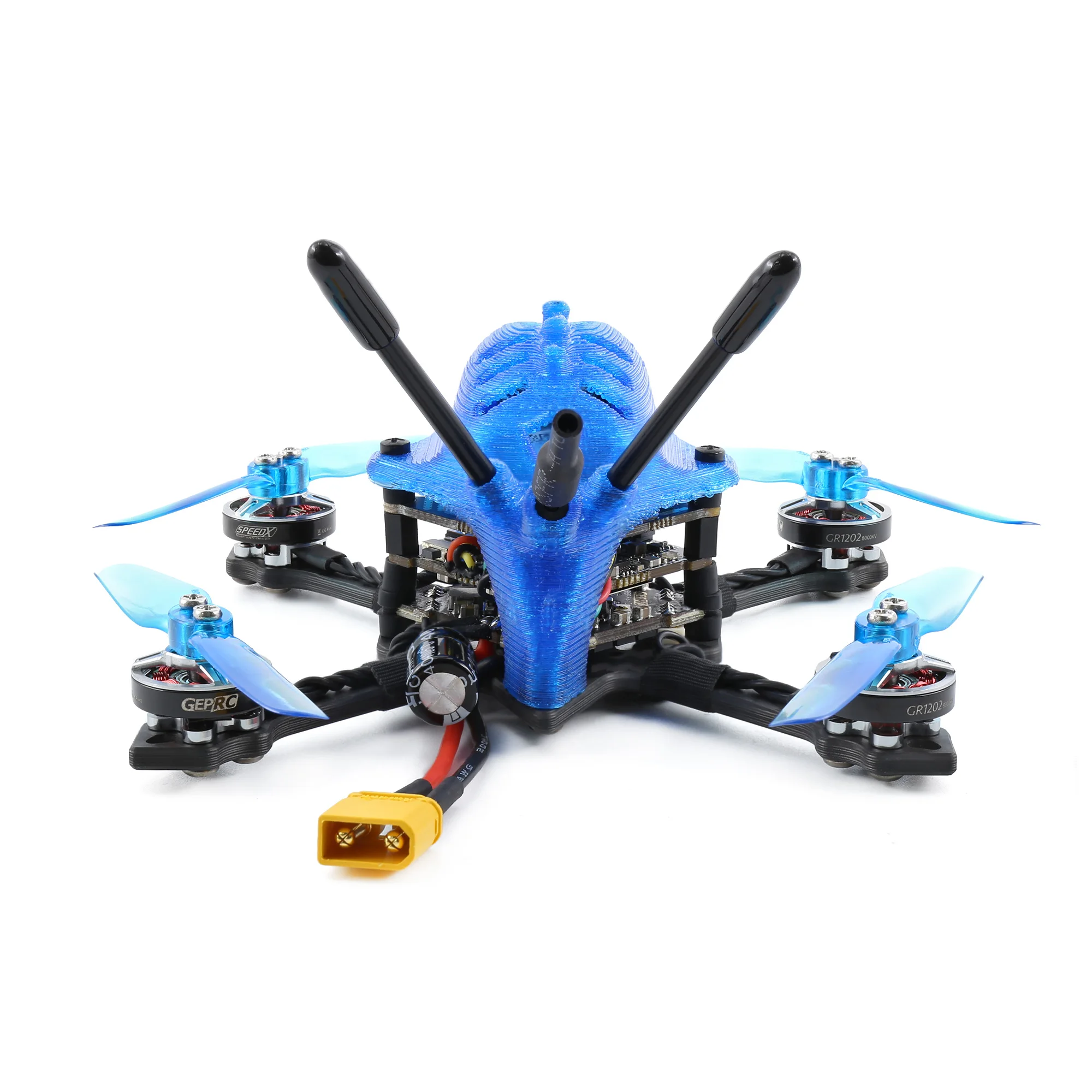

SKIP HD is a revolutionary product of the ToothPick Quadcopter. SKIP HD is capable of shooting up to 1080p 60fps and is available in multiple versions.
3″ Version: GR1105 5000KV 3-4S Battery (Powerful and stable)
2.5″ Version: GR1202 8000KV 3S Battery (Flexible)
Features:Ultra-light weight
HD1080@60fps
2.5″ and 3″ optional
Two HD recorders are available, RunCam Split 3 Nano / Caddx baby turtle V2
Reliable electronic equipment, reducing weight
High-definition TPU printing
Full 3K carbon plate
Specifications:
Name: SKIP HD 2.5″
FC & ESC:GEP-12A-F4
ESC:12A(BLheli_S)
Frame:GEP-SP2.5
Bottom plate thickness: 2.5mm

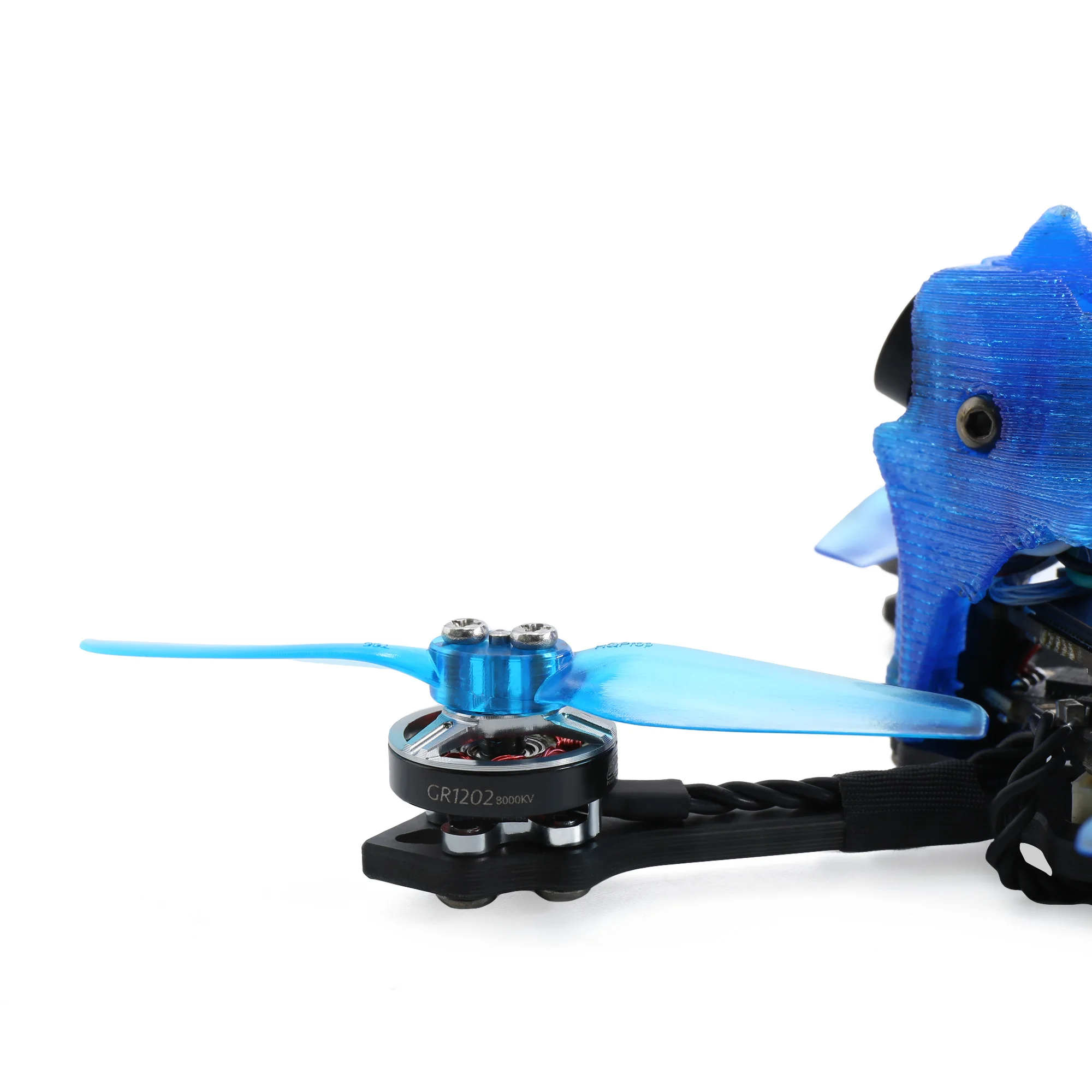

Motor: GEPRC GEP-GR1202 8000KV(3S 450mAh)
Wheelbase: 105mm
Propeller: 2.5inch
VTX:5.8g 200mW
Camera: RunCam Split 3 Nano / Caddx baby turtle V2
Weight: 63g (without battery)
Battery 450mAh 3S battery (No inclueded)
Flight time: Almost 5mins in a smooth flight
Specifications(RunCam Split 3 Nano):Field of View (FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps
TV Mode:NTSC (720*480)/PAL (720*576) Switchable
Runcam Splite 3 Nano:
Manual
Specifications(Caddx baby turtle V2):Image sensor:1/2.7Inch Cmos sensor
Recording: 1080P/60fps,1080P/60fps
Lens:108mm lens
FPV FOV/Recording FOV: 170
TV System: NTSC/PAL changeable with OSD
GEP-12A-F4 System:MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output:5V@2A
Mounting holes: 25.5mm*25.5mm
Input voltage 2-4S LIPO
FC Firmware target: MATEKF411
Continuous current: 12A
ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
ESC Firmware target: Blheli_S G_H_30
Current meter: 210
VTX 5.8G 200mWPower : PIT/25/100/200mW
Antenna interface : IPEX (UFL)
Telemetry: IRC Tramp
Integrated LC Filter
Include：
-1 x SKIP HD ToothPick Drone
