Pressure Measuring Instruments>>>Tools
Brand Name makerele
Certification CE
Origin CN(Origin)
Dial Diameter 1.9 Inches & Under
Display Type ANALOG
Max Measuring Range 49 PSI & Under
Model Number Installation engineering
This product Parameters can be customized，please Leaving a message.

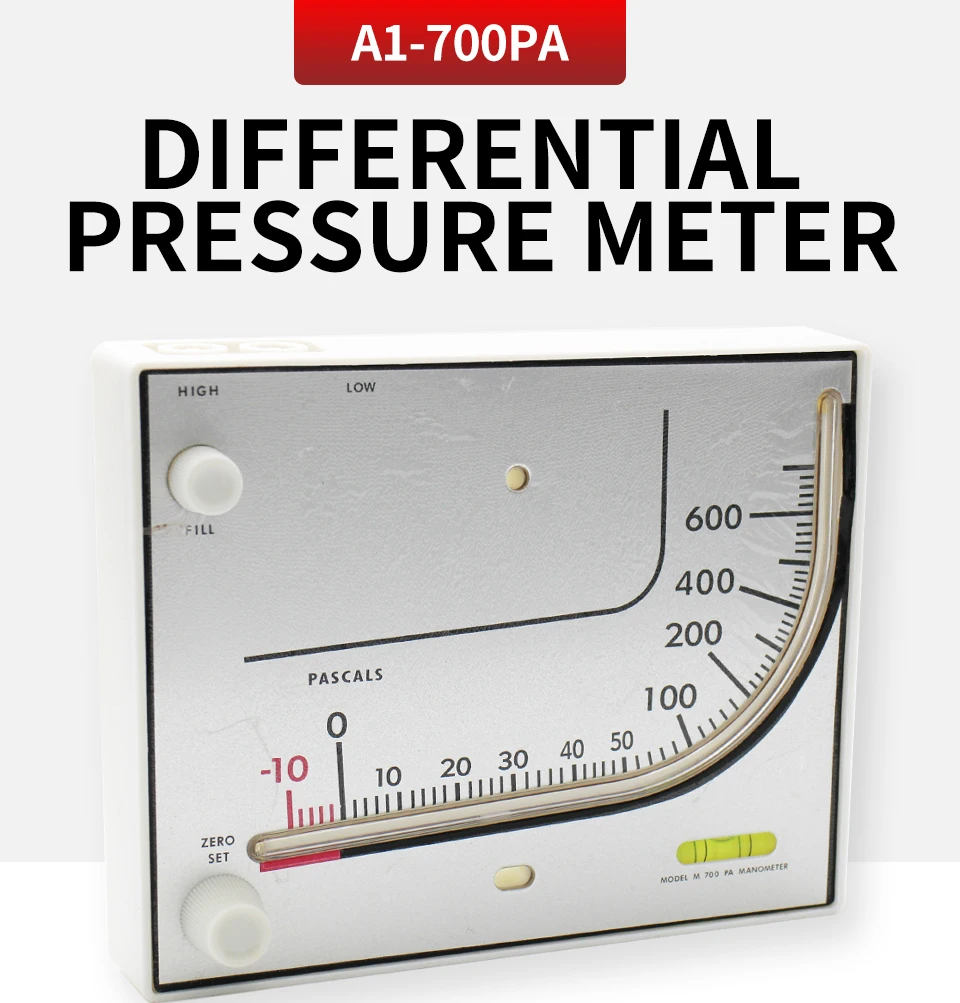

A1Type plastic injection mould pressure gauge adopts inclinedVertical structure and low volatile oil. At the same time to provide a larger range,
It can make the resolution and the reading accuracy higher in the low range reading.A1Positive pressure, negative pressure and differential pressure can be measured.
structure
A1The pressure gauge is economical and the structure is compact, which is made of a solid white molded polystyrene shell, an indicator tube, a fluid sleeve, and a molding ABSZero adjustment knob, piston, and leak proof"O"Shaped sealing ring.A1The overflow tank can be used to relieve the medium pressure. There are printed scale on the surface of aluminum, and there are three kinds of metering units available.
Specifications
Accuracy:3% full scaleMaximum operating temperature:140 ~ F(60 degree C)Maximum internal working pressure: 10 psi (70 kPa

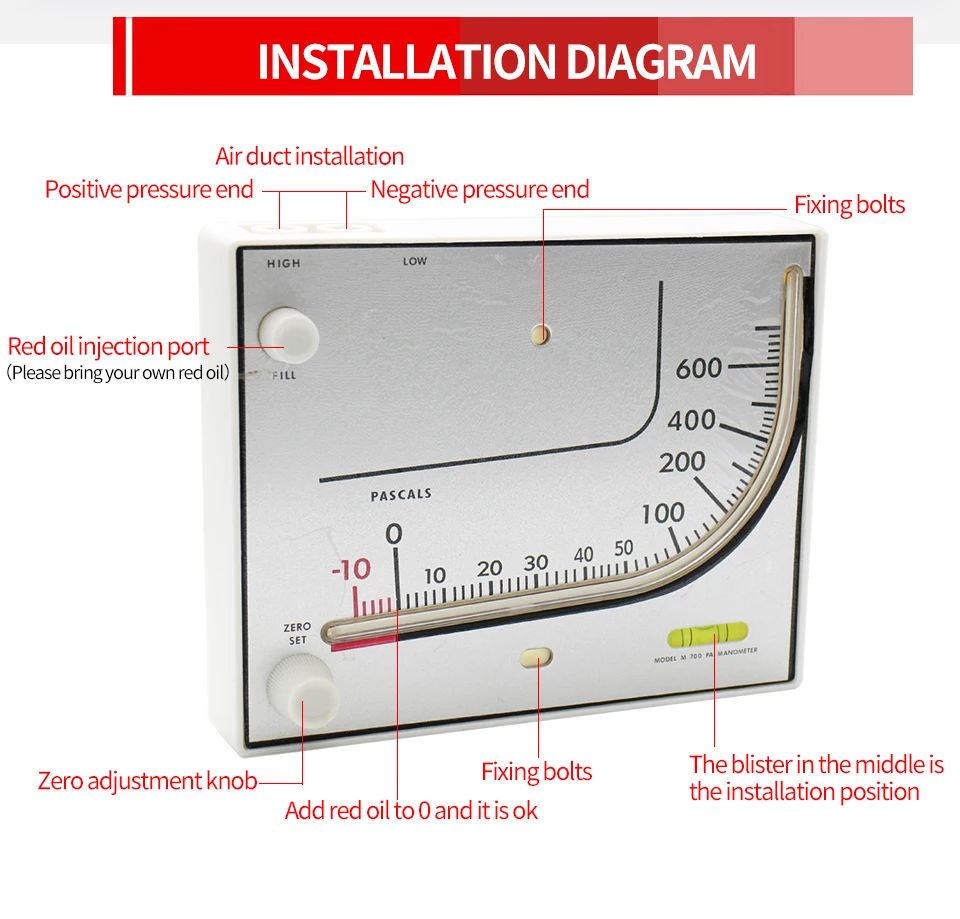

install
A1The pressure gauge can be installed on any vertical surface with two screws. Built in level can help adjust the horizontal position when installing. As long as the liquid storage tank, liquid scale is adjusted to zero, then the pressure pipe, pressure gauge and ready for use.

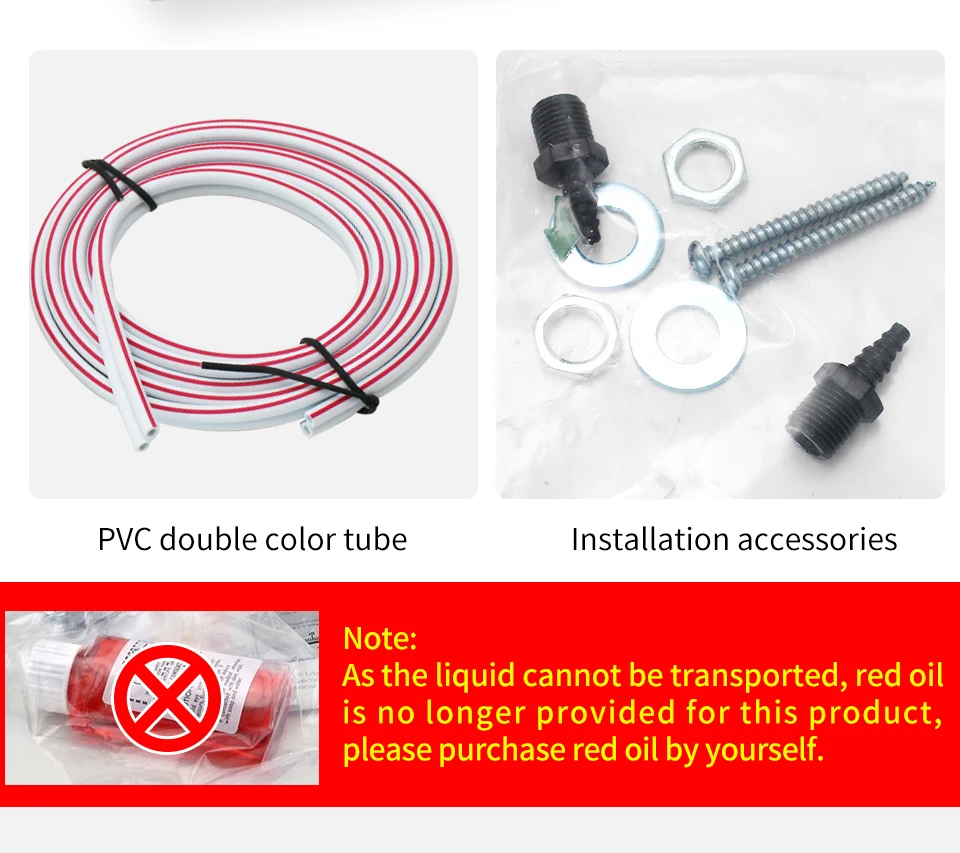

enclosure
EachA1Pressure gauge is equipped with two can be with 1/8"Pipe joints, pipe or metal tube to match the two mounting screws,3/4An ounce bottle of red instructions, instructions, and8footlongFlexible plastic pressure pipe.
