Origin CN(Origin)
Type Dada Transfer Cable
Certification CE
Package Yes
Products Status STOCK
Model Number BHJ-D06
Color Black,White
Gender Feale-Female
Type AV Cable
Connector A RCA
Connector B HDMI
Features AV to HDMI
Application 1 Monitor,TV,Projector,Display HDTV
Application 2 TV Box,DVD Player,Multimeadia
Materail ABS
Ships From
China
Cable length
0.2m
Color
Mini RCA AV Male to HDMI Female Converter Adapter Full HD 1080P Mini Composite CVBS to HDMI AV2HDMI Audio Converter RCA AV to HDMI HD Converter Composite CVBS Video Adapter Wii NES SNES
Introduction;

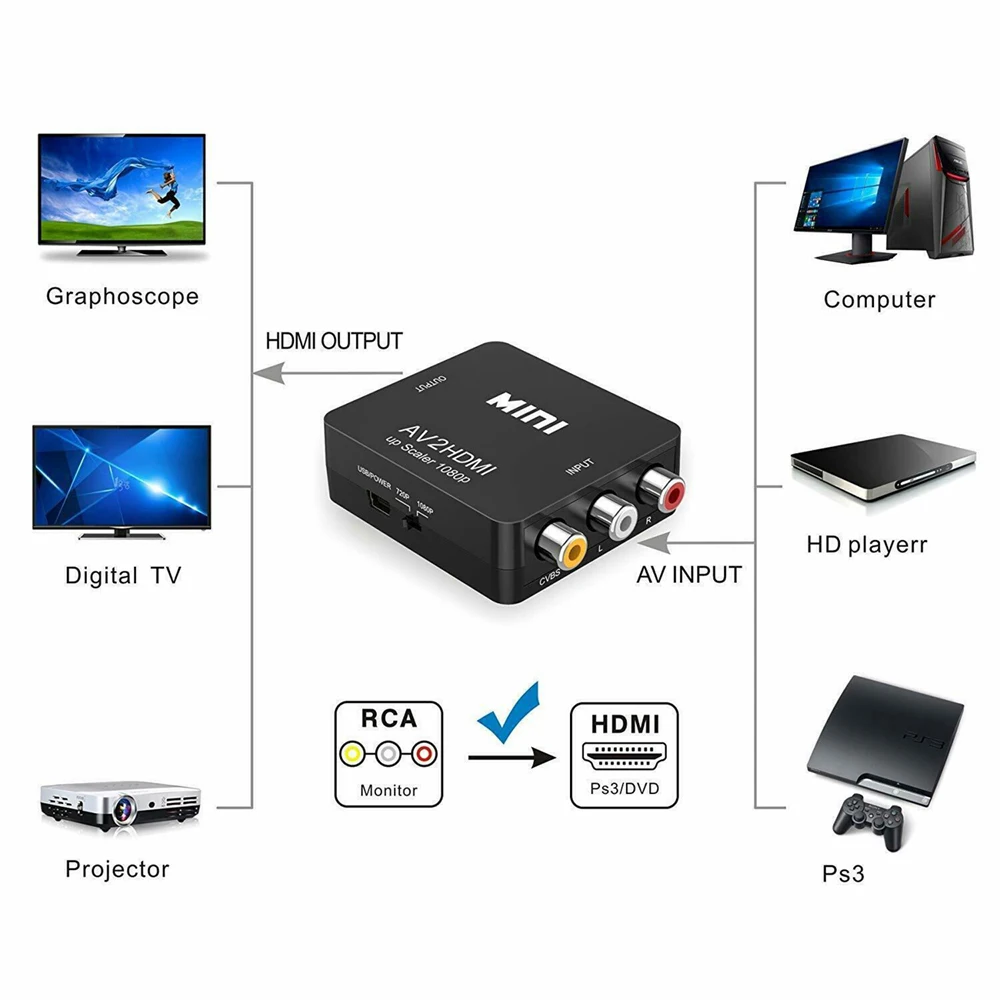

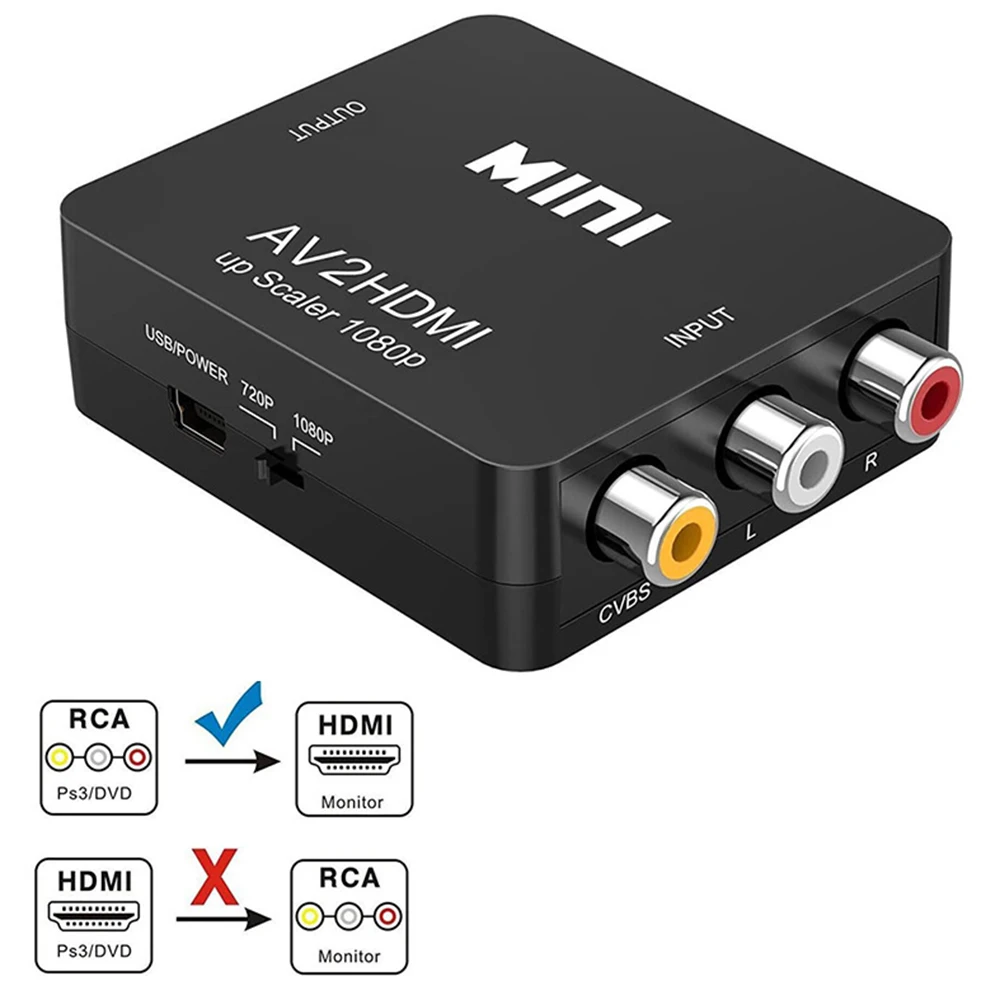

AV turn HDMI convert the RCA (AV, compound, CVBS) signal to a HDMI signal, so you can watch the video on a modern TV with a HDMI port. The A-D conversion in this module uses 10 bits maximum 162 MSPS sampling, black / white level expansion, color transition improvement, dynamic range expansion, blue stretching, automatic detection and automatic conversion of composite signals to 1080 p (60HZ) output. Make the video vivid and provide the clearest and most realistic HD visual effects.
Characteristics:
No need to install driver, portable, flexible, plug and play. Support PAL,NTSC3.58,NTSC4.43,SECAM,PAL / M,PAL / N standard TV format input. The output is synchronized with the audio of the video. You can display high bandwidth capability on 1920 x1080@60Hz Moniter / TV
Note:

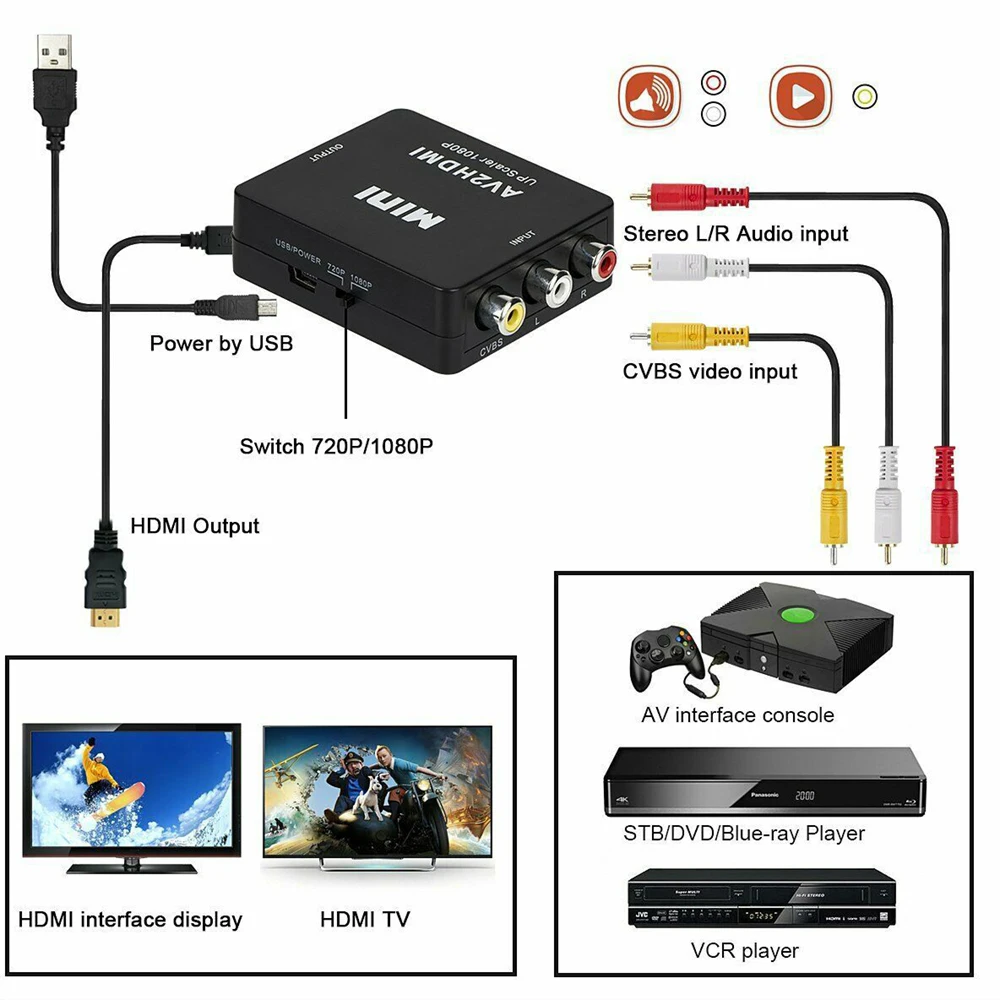

there may be a delay of less than three seconds. will not only convert audio. Important tip: To make the converter work properly, all cables must be connected and used (yellow: video, white: left audio, red: right audio). Audio format supported :2 channel analog audio, not 3 D. supported
Specifications:

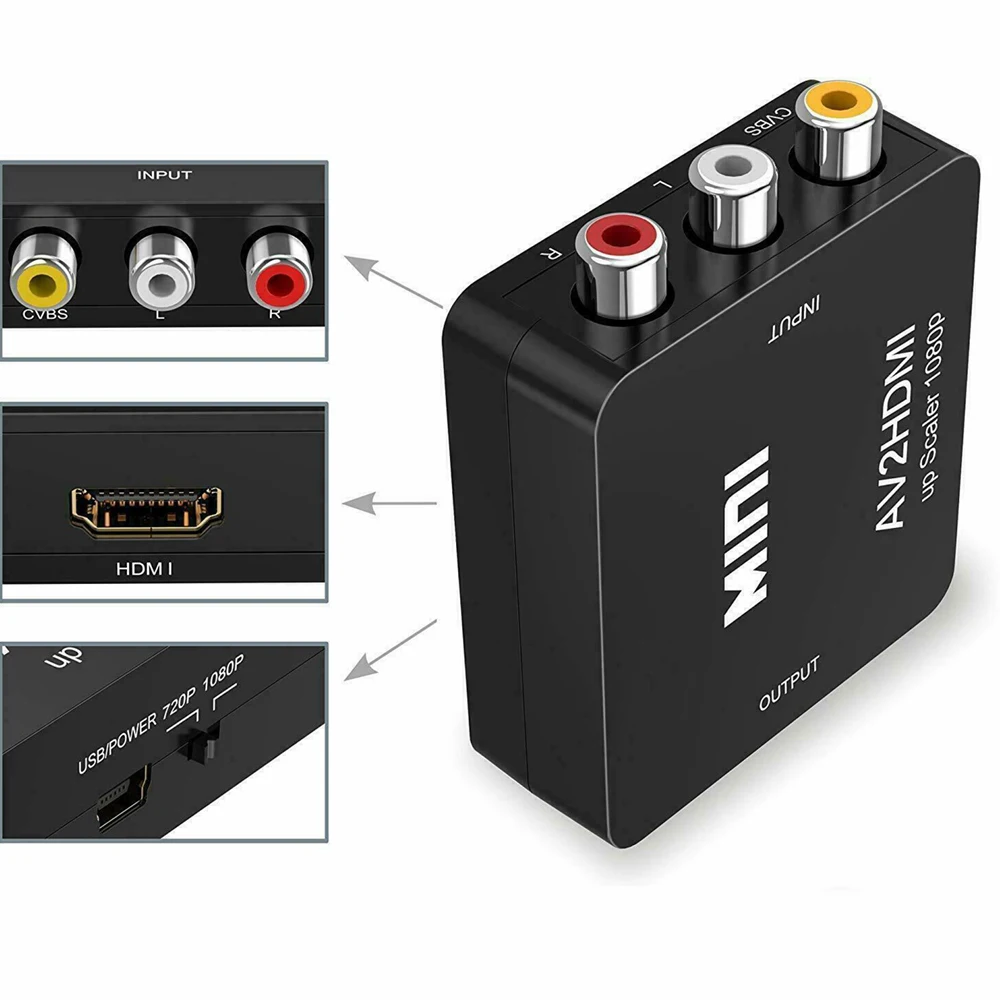

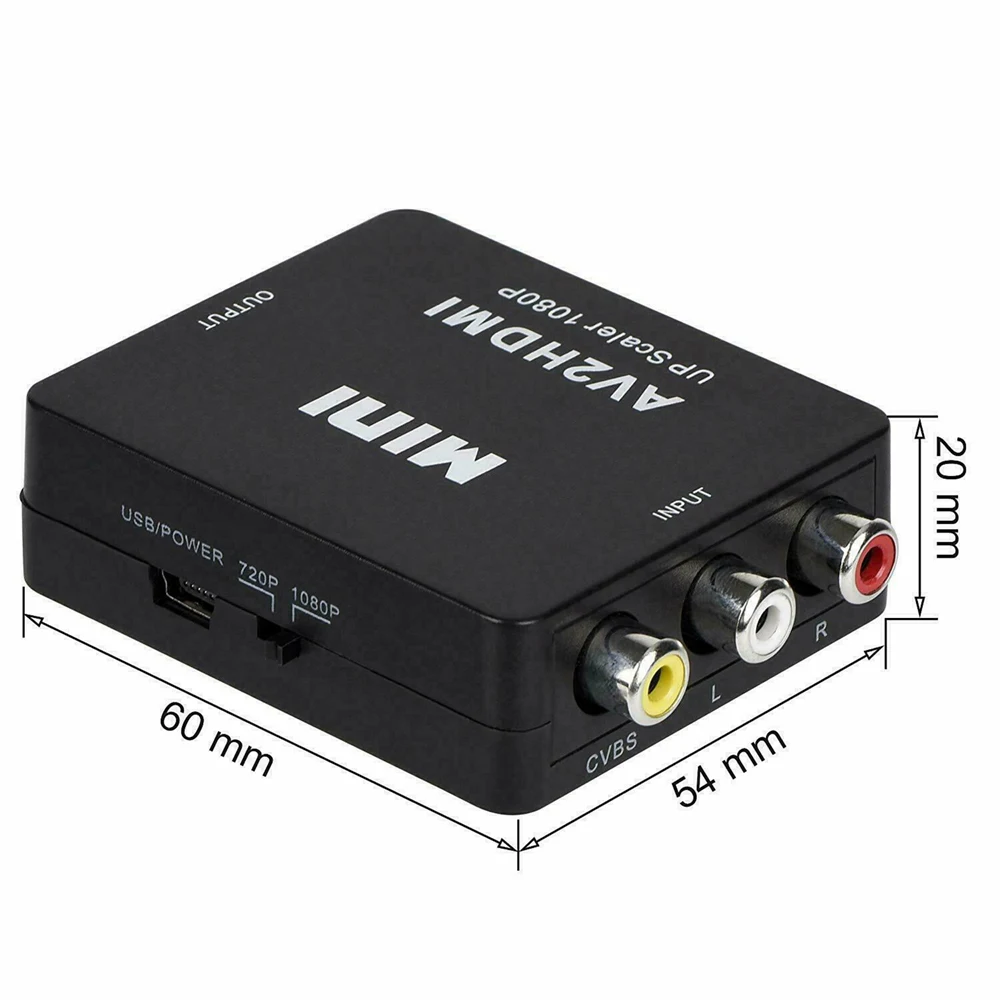

1. input port :1 xRCA( yellow, white, red), USB power supply2. output port :1 xHDMI( standard)3. compatible NTSC / PAL4. compound inputs: PAL,NTSC3.58,NTSC4.43, SECAM,PAL / M,PAL / N5. HDMI output: p /60Hz,720p /60Hz 10806. dimensions (mm):66(D) x 55(W) x 20(H)7. weight (g):40 g8. power: USB port
Package content :

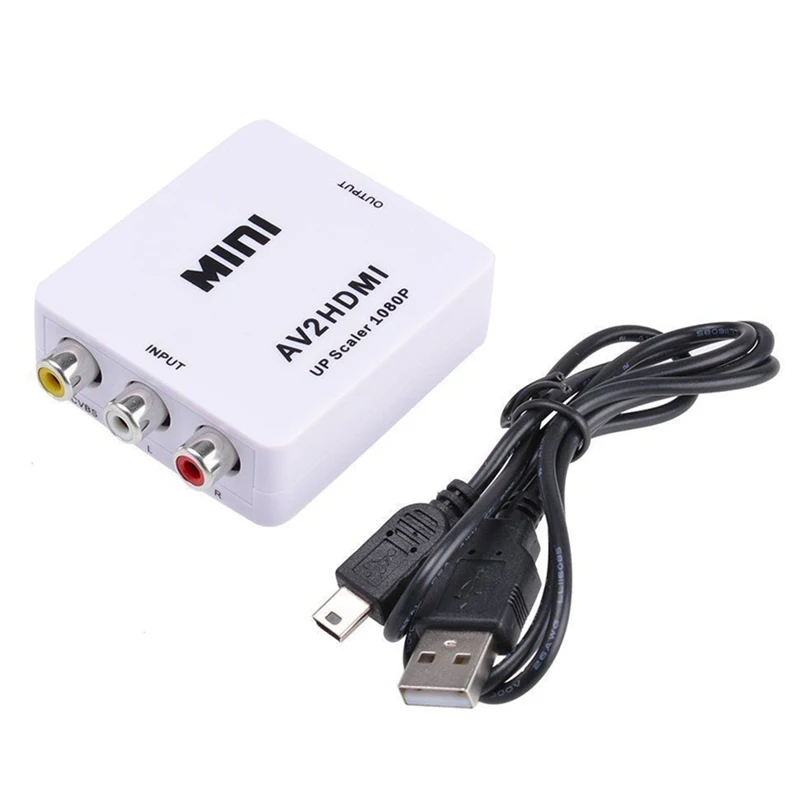

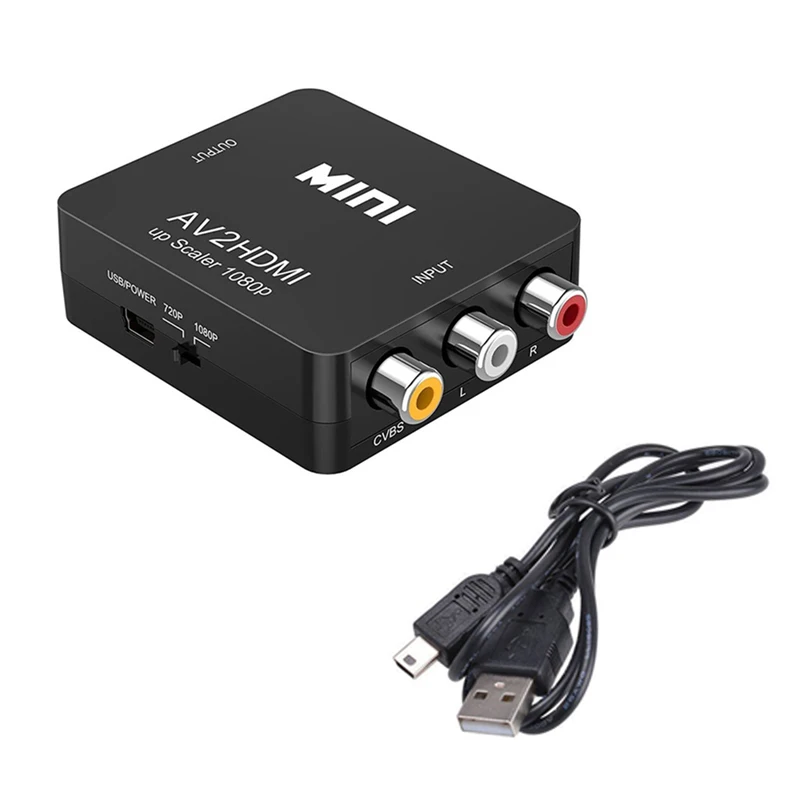

1 xAV HDMI converter 1 xUSB cable 1 x User manual
