Electrical Instruments>>>Tools
Brand Name HoldPeak
Certification None
DIY Supplies ELECTRICAL
Origin CN(Origin)
Measuring Capacitance Range 5.12nF/51.2nF/512nF/5.12uF/51.2uF/100uF
Model Number HP-570C-APP

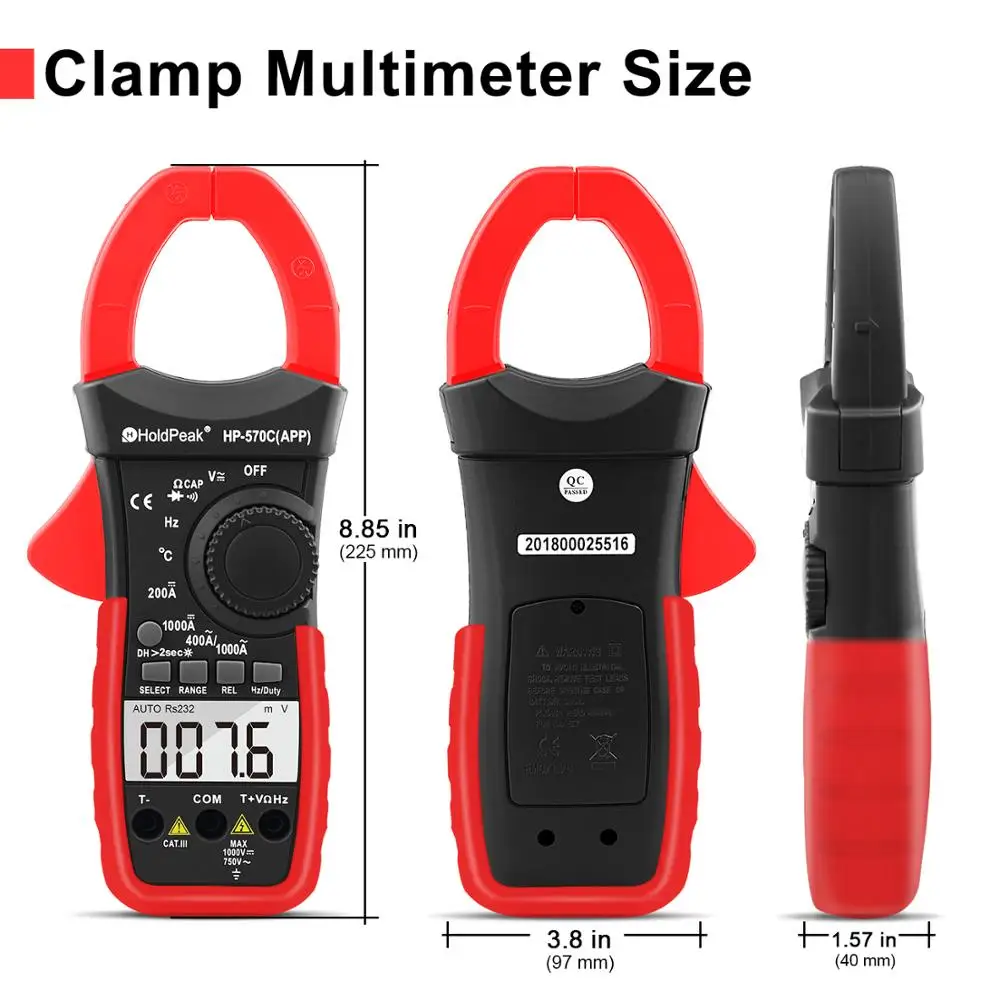

Dimensions 225*97*40mm
Measuring Voltage Range 400mV/4V/40V/400V/750V/1000V
Operating Temperature -20~1000'C
Measuring Resistance Range 400/4k/40k/400k/4M/40M
Measuring Inductance Range NO
Weight 450g
Measuring Current Range 200A/400A/0-800A/800-1000A
Display Type Digital Only
Measuring Frequnency Range 5.12Hz/51.2Hz/512Hz/5.12kHz/512kHz/5.12MHz
Display 4000
Diode Test YES
Continuity Buzzer YES
Date Hold/Back Light YES
Auto Power Off NO
Relative Value YES
Dual Display YES
Link to phone App YES
Battery Type 9V(6F220)*1
Ships From
China
United States
United Kingdom
GERMANY
Australia
Russian Federation
Thanks for choosing Holdpeak, you can click the following link to watch a more detailed video: https://youtu.be/MPEXQ-m8j0E

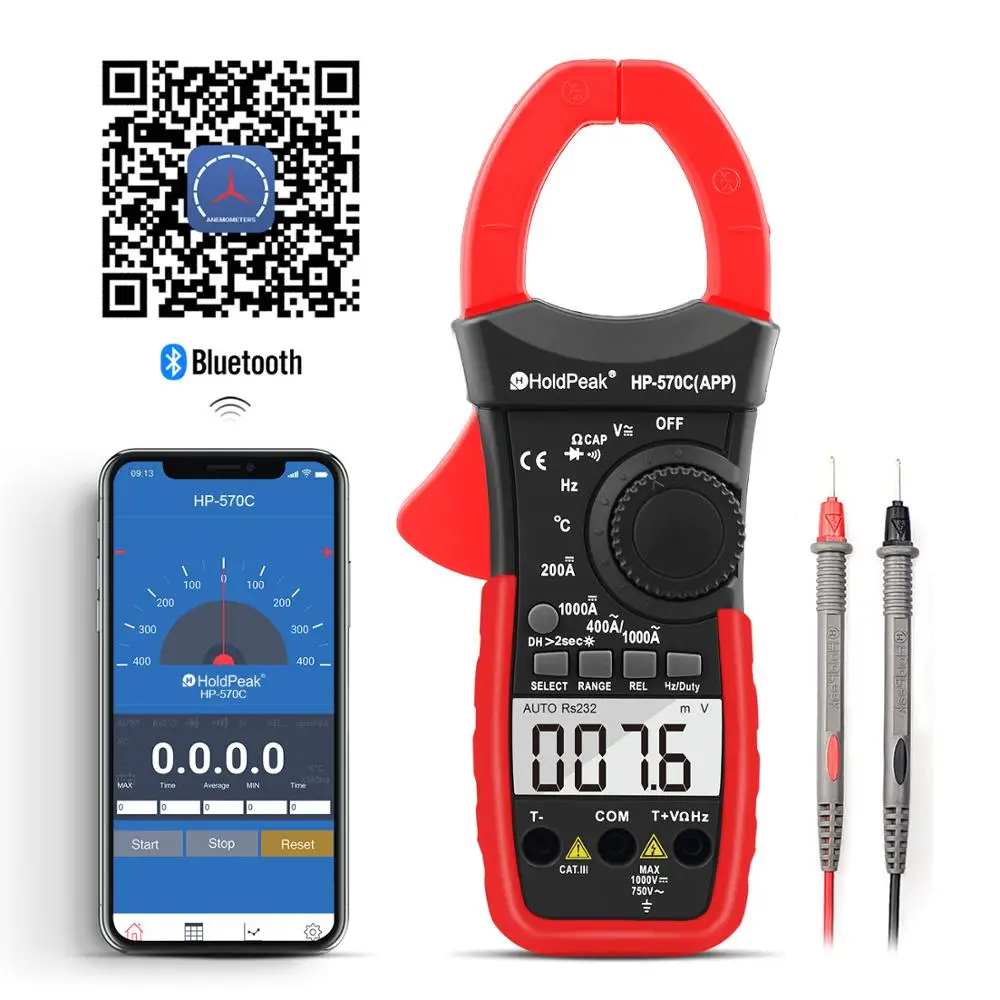

Bluetooth AC DC Clamp Mutlimeter Amp Meter with Temp Testing, Auto-ranging Measures Current, Voltage, Resistance, Capacitance, Continuity, Amperage, Volt, Ohm Clamp-on Ampmeter

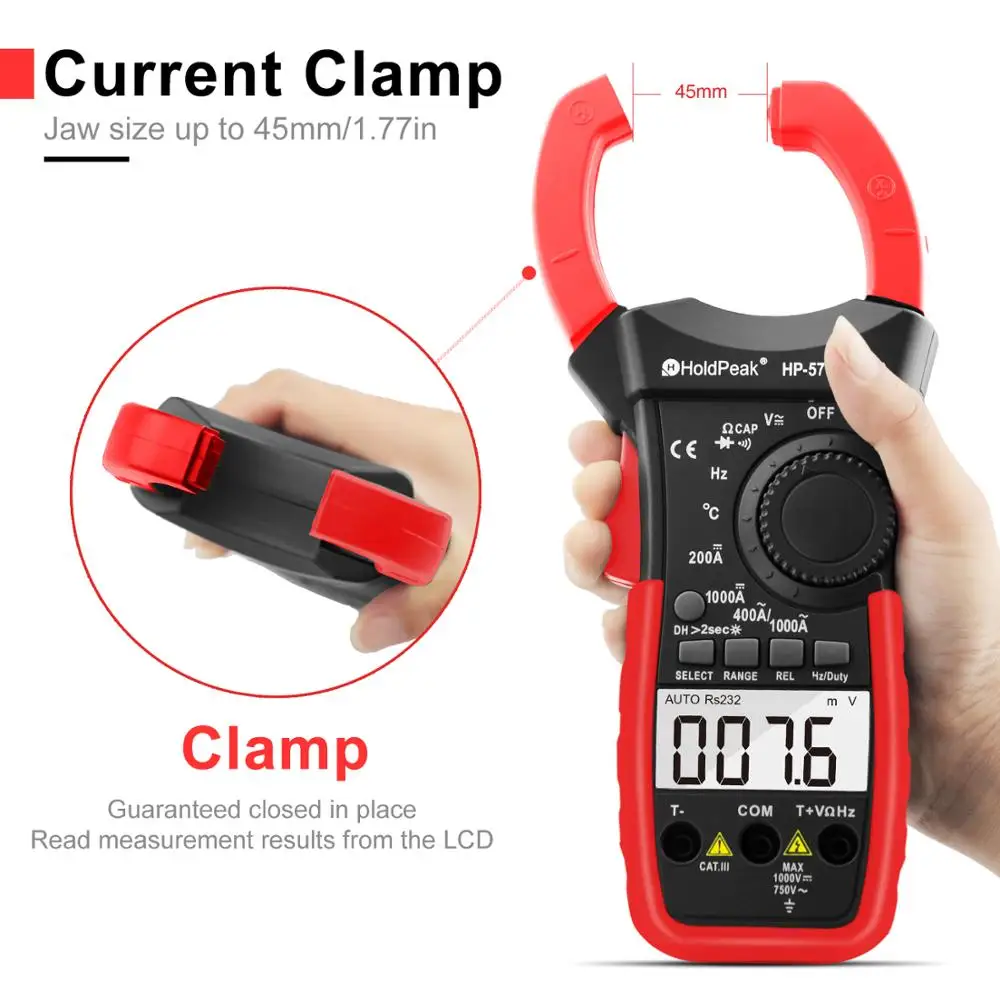

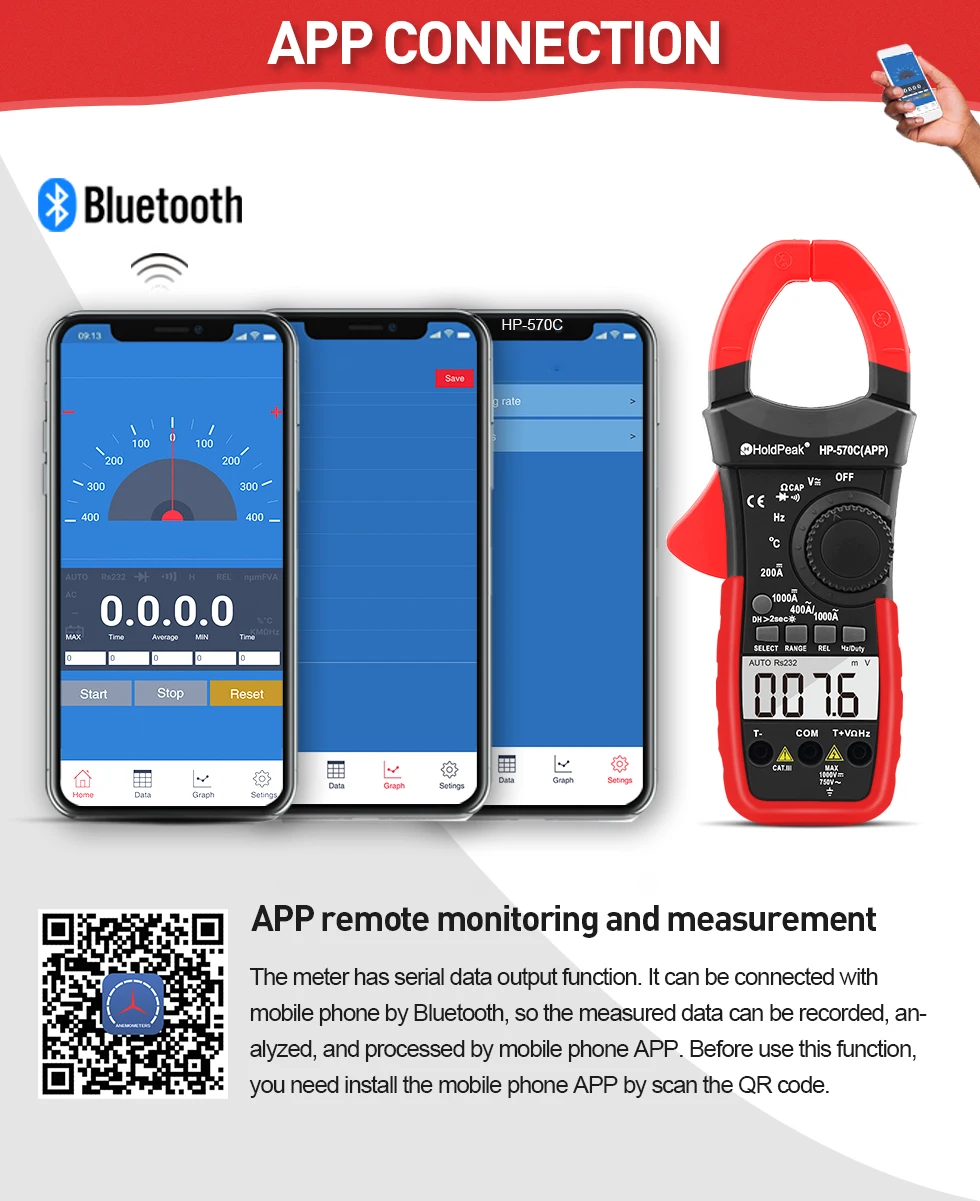

⚡【AC & DC Digital Clamp Multitester】 4000 Counts Auto-range AC/DC amps clamp multimeter measuring AC/DC current, AC/DC voltage, Resistance,capacitance, audible beep continuity, Temperature, diode and Frequency(Hz),Duty Cycle, Data Hold.⚡【Bluetooth APP Clamp Ammeter】 Auto pair with Android / IOS phone,support for real-time measurement reading in Max/Min/Average, with timing and curve graph. And save the measurements in TXT/Excel files for data logging⚡【AC/DC Inductive Clamp Amp Meter】Neat Bright Backlit LCD display, Big Jaw Caliber Size 1.77 inches. Make sure press “REL” to zero out the meter before clamping, or the meter will show bias numbers without any wire in the clamps due to the magnetic field.⚡【Accurate Voltage Amperage Meter】0.1A resolution for 0.1~400A AC DC amp, 1A for 400A~1000A to support accurate amp reading for low and high current. Ideal non-contact ampere multimeter to troubleshoot electrical problems in automotive, household, HVAC, vehicle boat motor diagnosis⚡【Clamp On Live Wire for AC DC Amp Test】To measure amp with ANY clamp meter, you MUST separate the hot and neutral conductors or they will cancel each other out and give a zero amp reading. The most convenient way without peeling the cord is clamp on an AC Line Splitter
