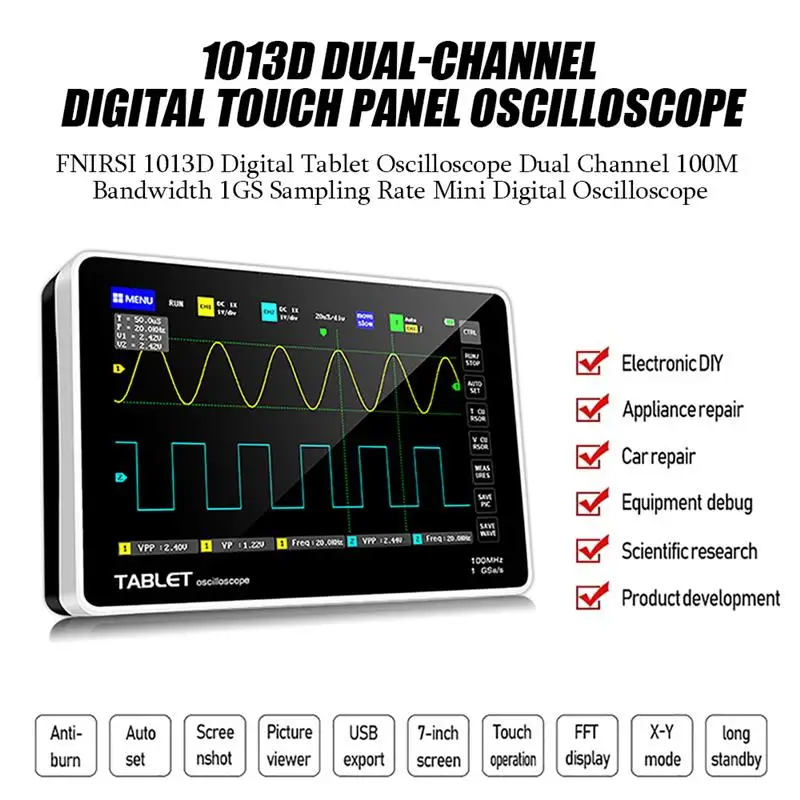

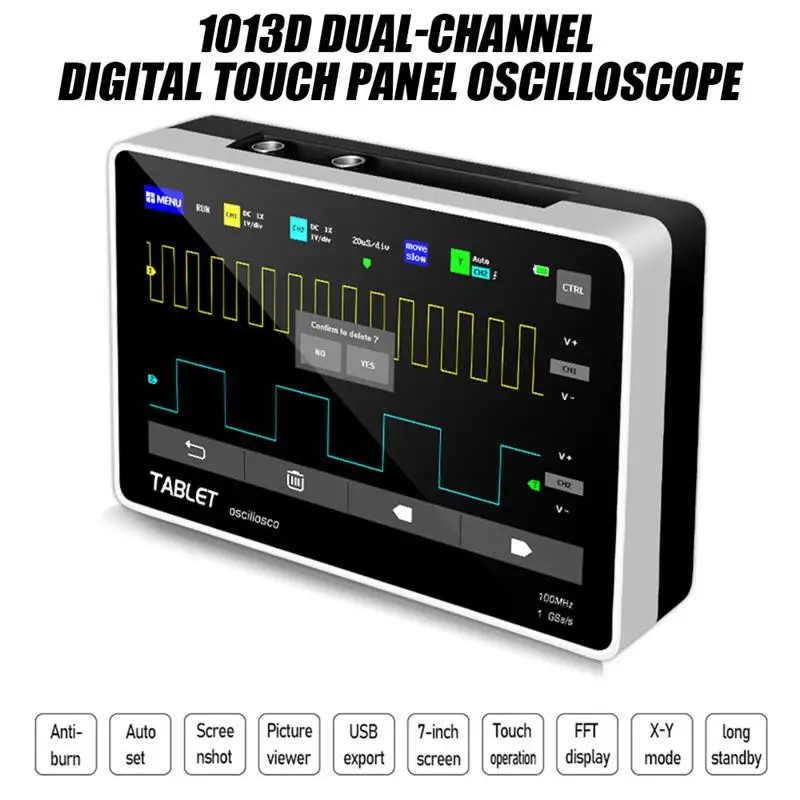

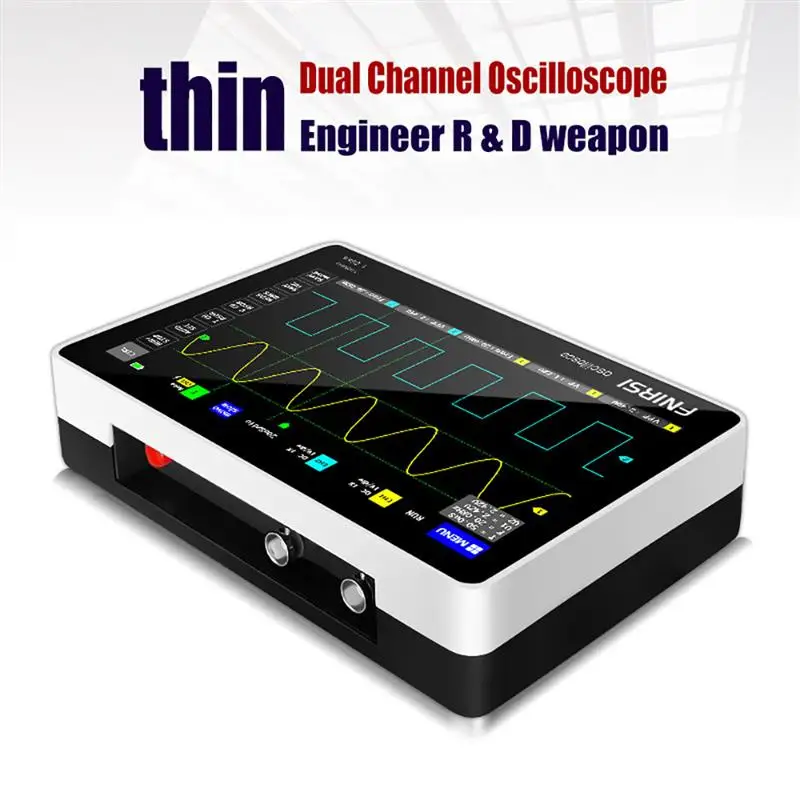

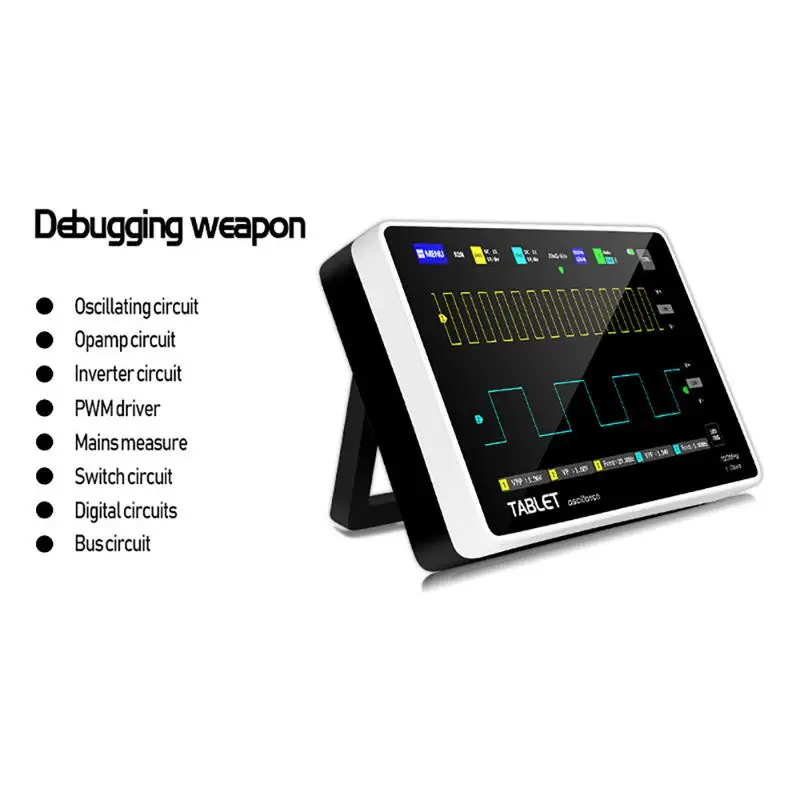

FNIRSI ADS 1013D Portable Digital Tablet Oscilloscope Dual Channel 100M Bandwidth 1GS Sampling Rate Touching Screen Oscilloscope

Electronic Measuring Instruments>>>Tools

Brand Name BSIDE

DIY Supplies ELECTRICAL

Certification CE

Certification None

Origin CN(Origin)

Display Size 7 Inches & Above

IS Battery Demountable Yes

Display resolution 800*480 Pixels

Digital Channels 2

Model Number FNIRSI-1013D

Max Waveform Capture Rate 30,000wfm/s

Real Time Sampling Rate 1GSa/S

Record Length other

Band Width 100-349MHz

Ships From

China

Czech Republic

United States

United Kingdom

SPAIN

Australia

France

Italy

Poland

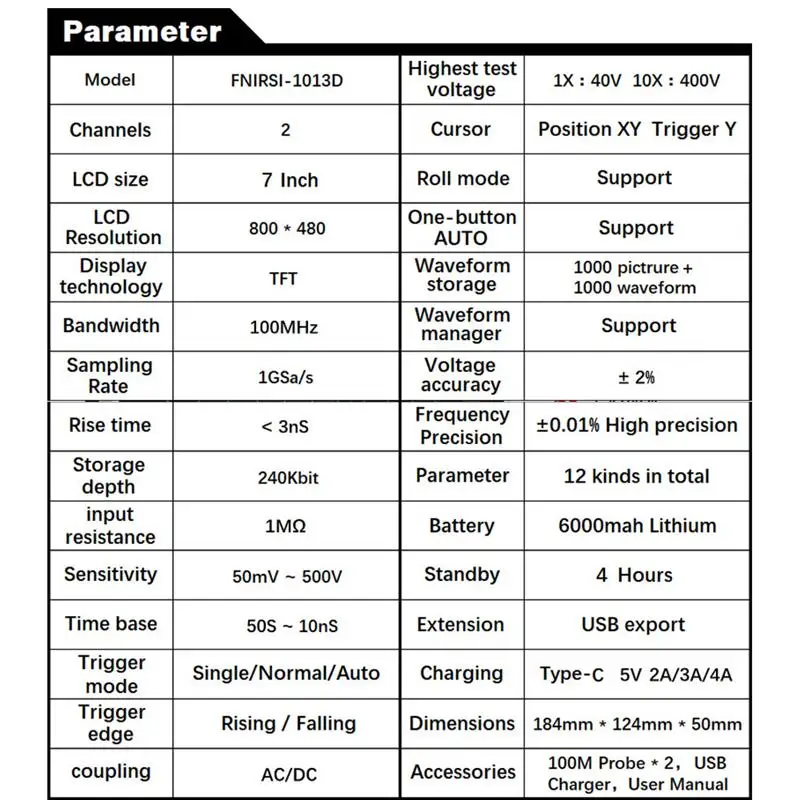

Description:Intelligent anti-burn, 1X Can withstand up to 400V withstand voltage.100MHz analog bandwidth @ 1GSa/s sampling rate(1X = 5MHz，10X = 100MHz).Fully fit 7 inch 800 x 480 resolution color TFT LCD with bright colors and high contrast.Capacitive touch screen, the same as the touch mode of modern mobile for iPad, is not a resistive touch screen with ancient nail operation.High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V，100X can measure 0 ~ 4000V.Specifications:Item name: Digital tablet oscilloscopeColor: BlackAnalog bandwidth: 100MHz * 2Number of channels: 2 channelsMaximum real time sampling rate: 1GSa/sVertical sensitivity: 50 MV/div ~ 500 V/divHorizontal time base range: 50S/div ~ 10nS/div

Maximum test voltage: 40 V (1X probe), 400 V (10X probe)

Storage depth: 240KbitInput resistance: 1MADC precision: 8bitsCoupling mode: AC/DCTrigger mode: Single, Normal, AutoTrigger edge: Rising edge/Falling edgeExternal trigger voltage 0-40 VDisplay: 7 inch - 800 x 480Operating: Capacitive touch screen + gestureExtension ports: USB picture exportPower supply: 6000 mAh lithium batterySize: 184mm x 124mm x 50mmTotal weight:650gNote: - There might be little error of size for manual measurement.- The color deviation might differ due to different monitor settings, please kindly understand.Packing list

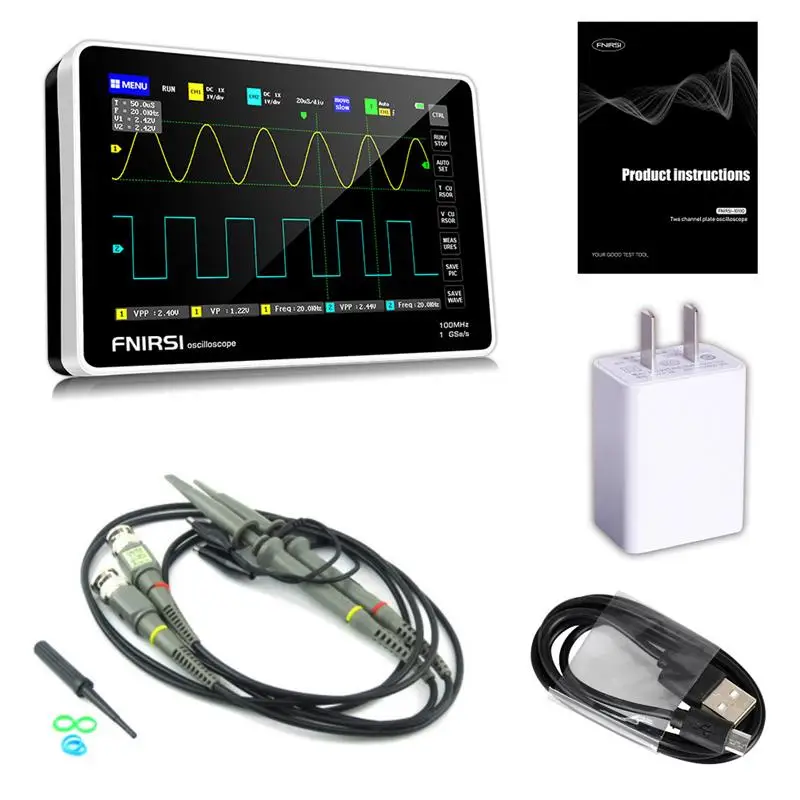

Package includes: 1 x FNIRSI-1013D oscilloscope host 2 x Matching 100MHz probe（1X and 10X） 1 x 5V2A Charger（Include USB data line） 1 x User manual (English)
