Switches>>>Lights & Lighting
Origin CN(Origin)
Certification CCC
Certification ce
Certification CQC
Certification ROHS
Certification RoHS
Certification CQC
Certification CE
Certification CCC
Current 10A
Features WIFI,RF controller and lighting-control-switch,
Material Plastic
Item Type Switches
Warranty 1 Year WIFI 433 MHz Lighting switch 1channel 85-240V mini switch
Is Smart Device Yes
Model Number 2201MW+WP09
Switch Type Remote Control
Remote Distance Up to 50m (theoretical distance)
Switch Working Voltage AC 85~240 V 50/60 HZ
Max current 10A
Quiescent Current less than 5mA
Switch Size 1.85*1.65*0.91 in(47*42*23 mm)
Switch Shell YES
WIFI Standard IEEE 802.11 b/g/n
RF Frequency 433MHz
Features WIFI&433MHz mini switch circuit breaker light controller module
Features2 App remote control
Features3 Timer,countdown function
Features4 Voice control

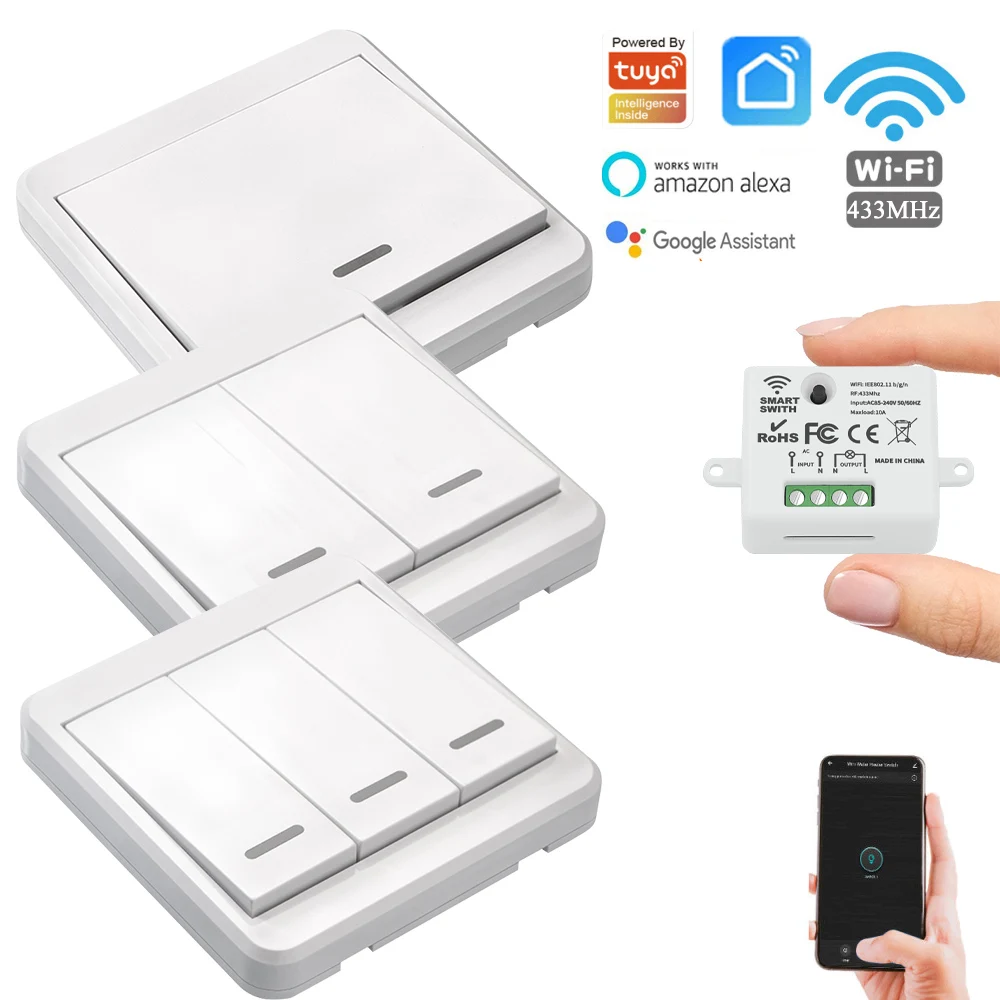

Work With Google Home,Amazon Alexa,Tuya,Smart Life
Wall Switch Size 3.39*3.39in(86*86 mm)
Wall Switch Battery 1pcs 27A12Vbattery(not include)
Wall Switch Range Up to 50m(theoretical distance)
Receiving Sensitivity more than 97dbm
Working Temperature -30~+80 Celsius
Modulation Mode ASK superheterodyne wireless reception
Application Scenario Led Light Lamp Switch, Home Security Alarm System
Color

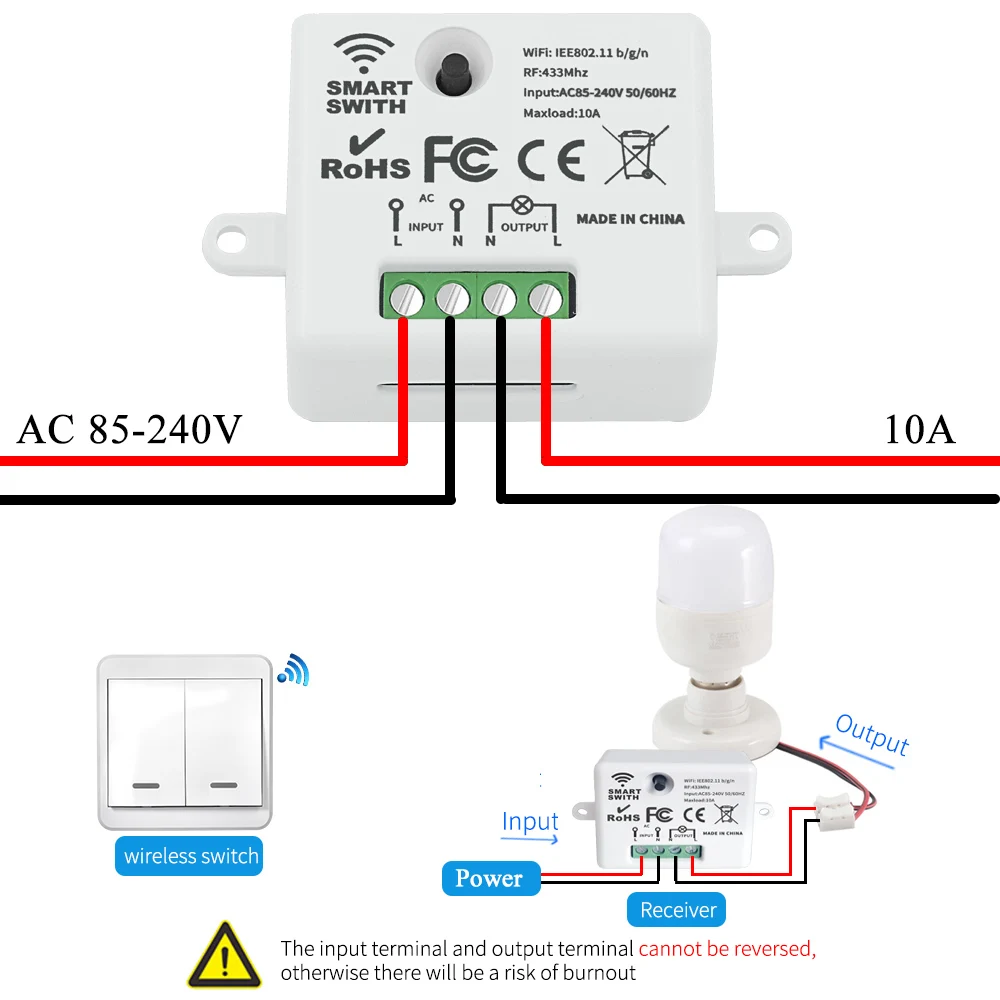

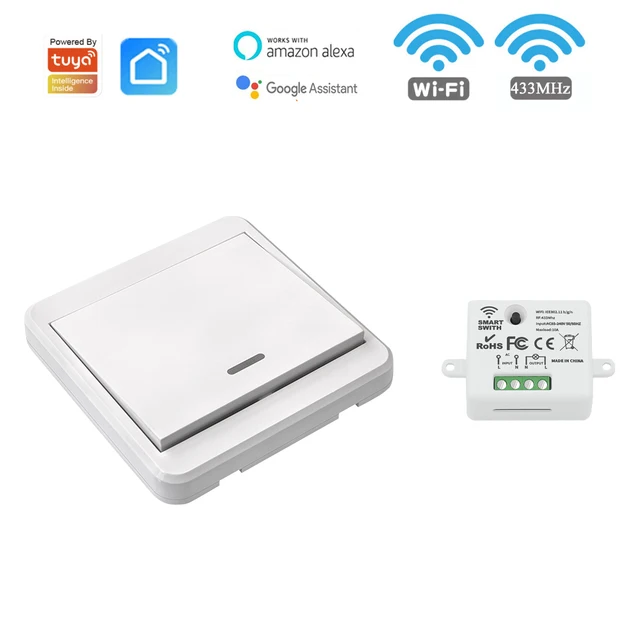

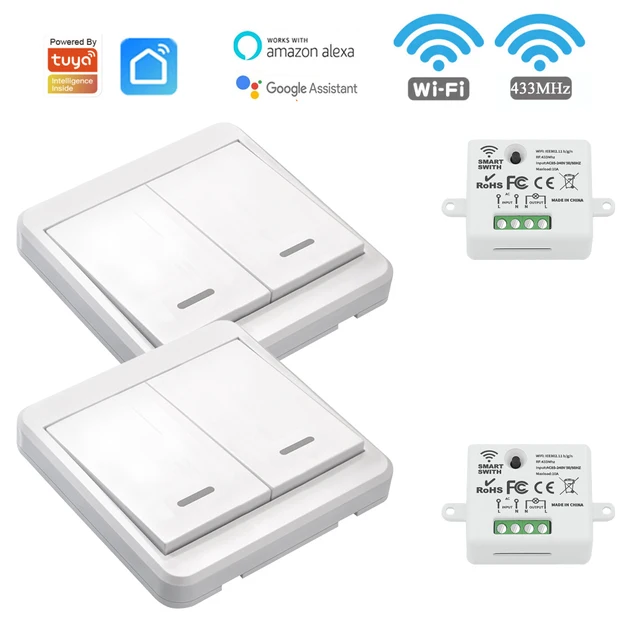

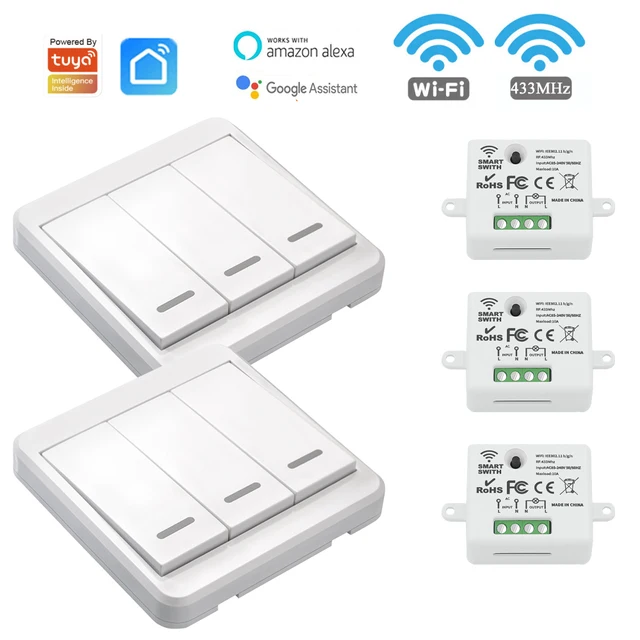

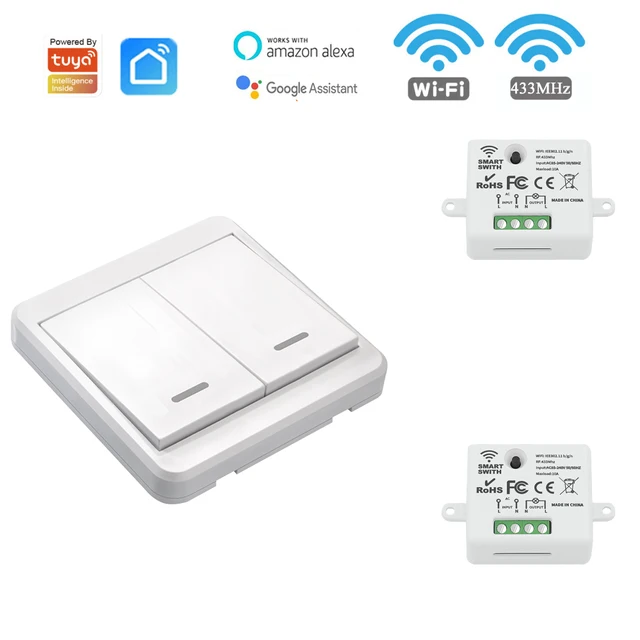

About this wifi+rf module and rf wall switch:1.Receiver relay module is wifi+rf,wall switch is rf only2.Four control ways:rf wireless control,phone app remote control,voice control and manual control3.Time schedule and countdown function4.Family share,for many peopleHow to connect:1.The voltage needs AC 80-250V.Land N line are required.2.L and N line cannot be reversed
Why choose this product:
1.Four ways to control this module,convenience
2.APP control it from anywhere at anywhere time

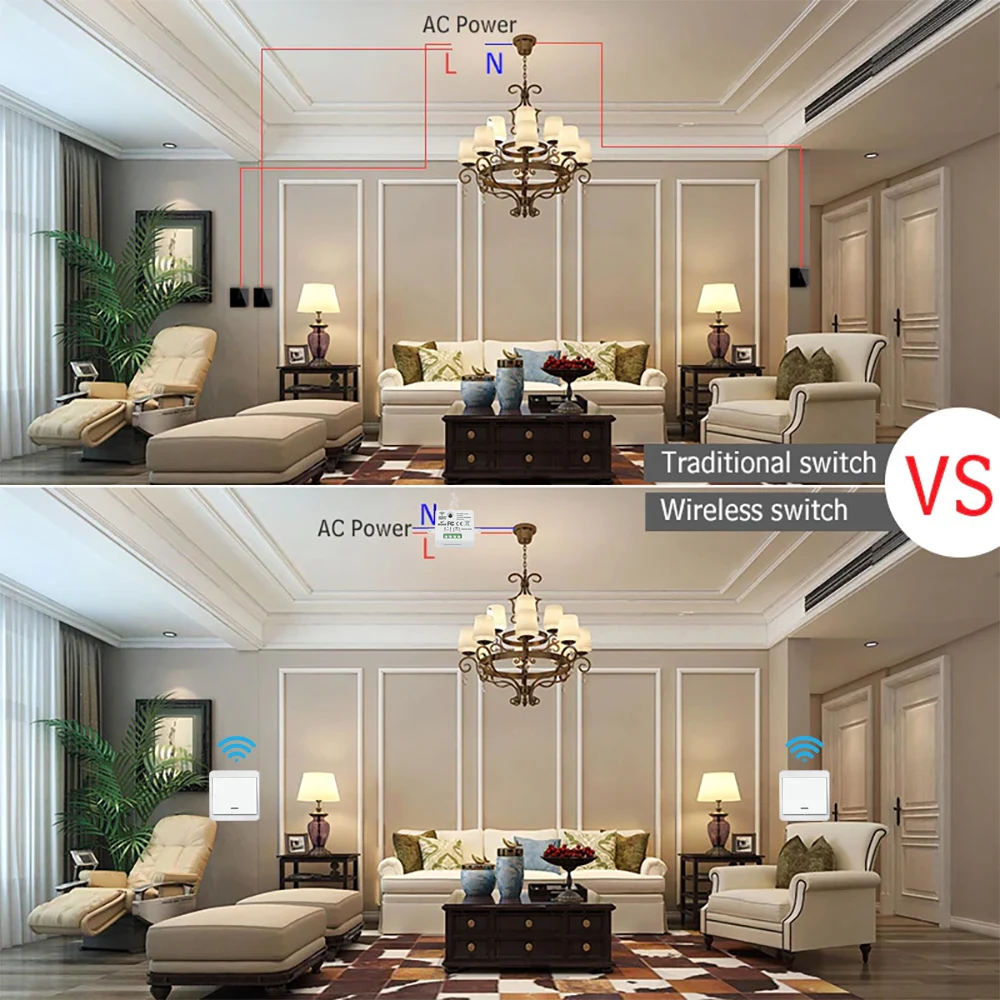

3.Rf wall switch wireless control,convenice than traditional switch control

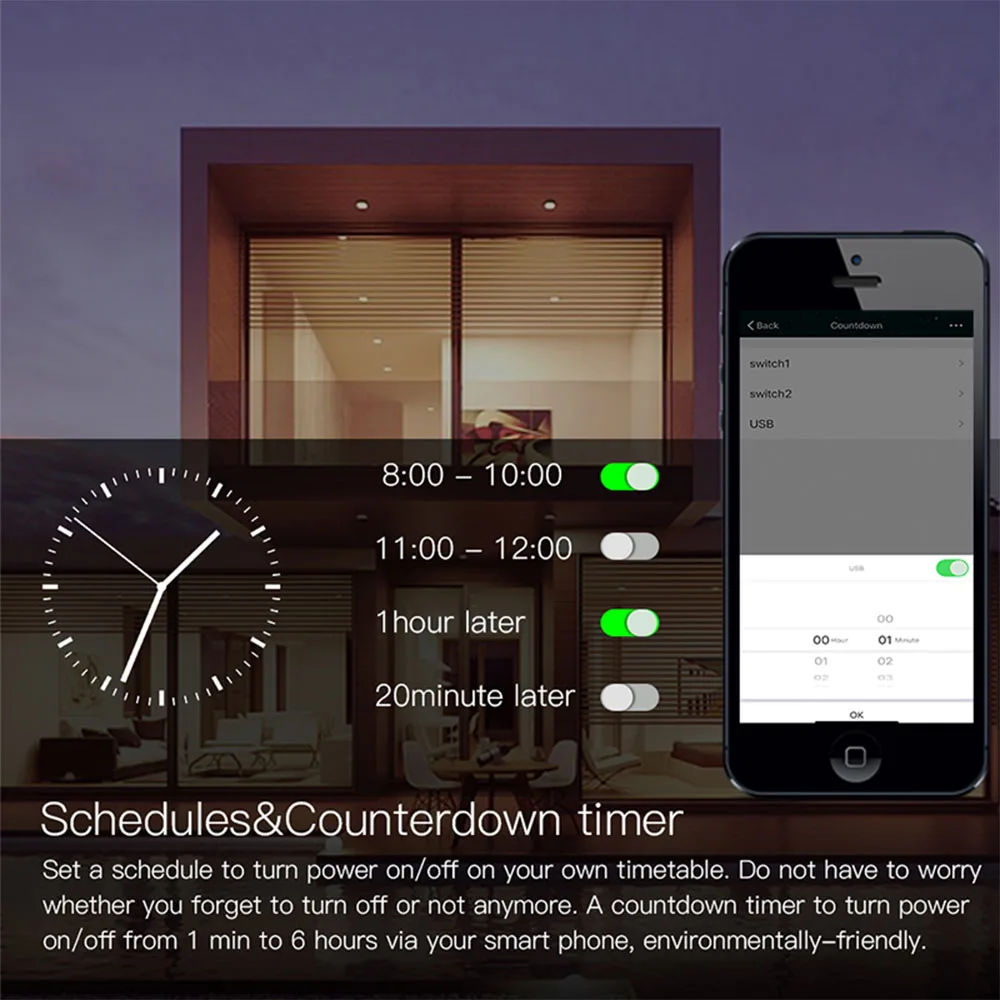

4.Set up schedule in your phone,smart your life
5.Work with Alexa,Google home.Voice control
6.Share this module with your family members,many people control it at the same time

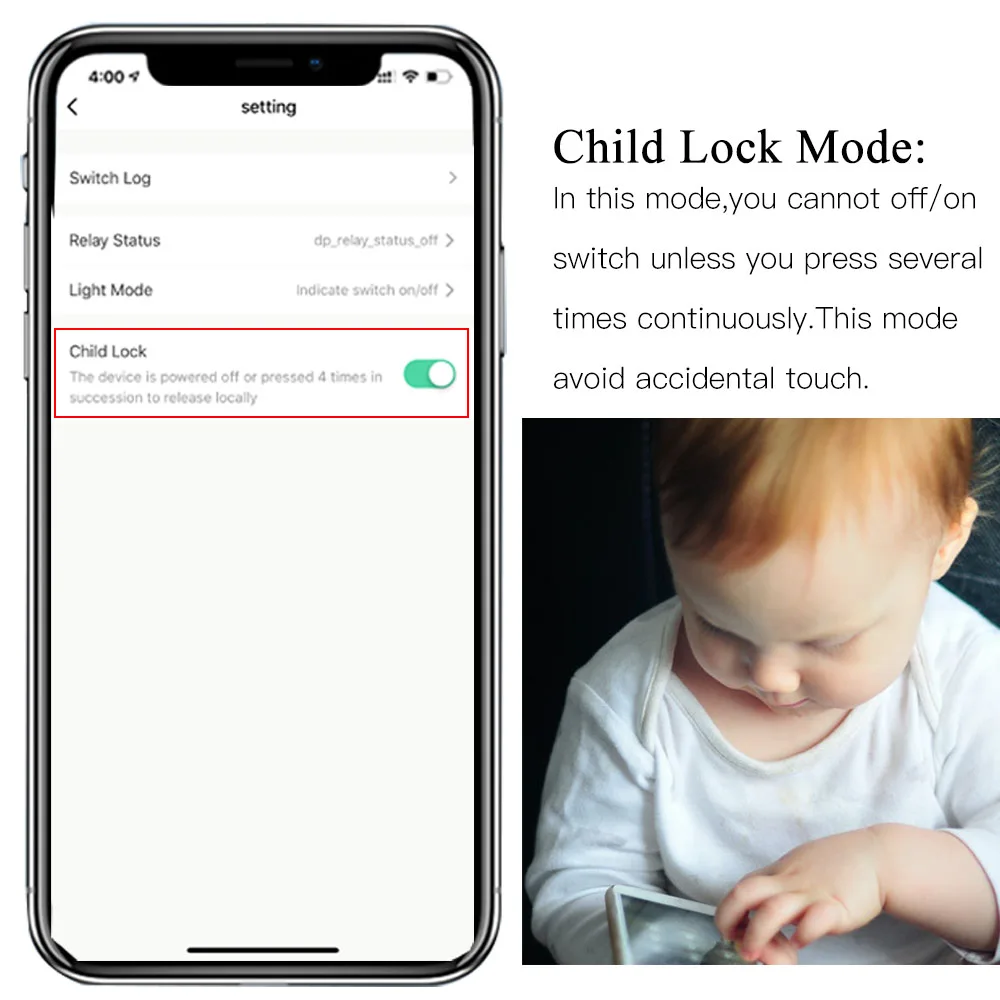

7.Avoid accidental touch by children
Wifi Control:How to connect with smart phone:Before connect with your phone,you need to make sure the wiring is ok and you have already download Tuya/Smart life app.1.Scan QR code to download smart life/tuya app2.Click add device3.Select wifi switch4.Confirm the switch is blinking5.Enter password and wait6.Wait for a second,succeed.

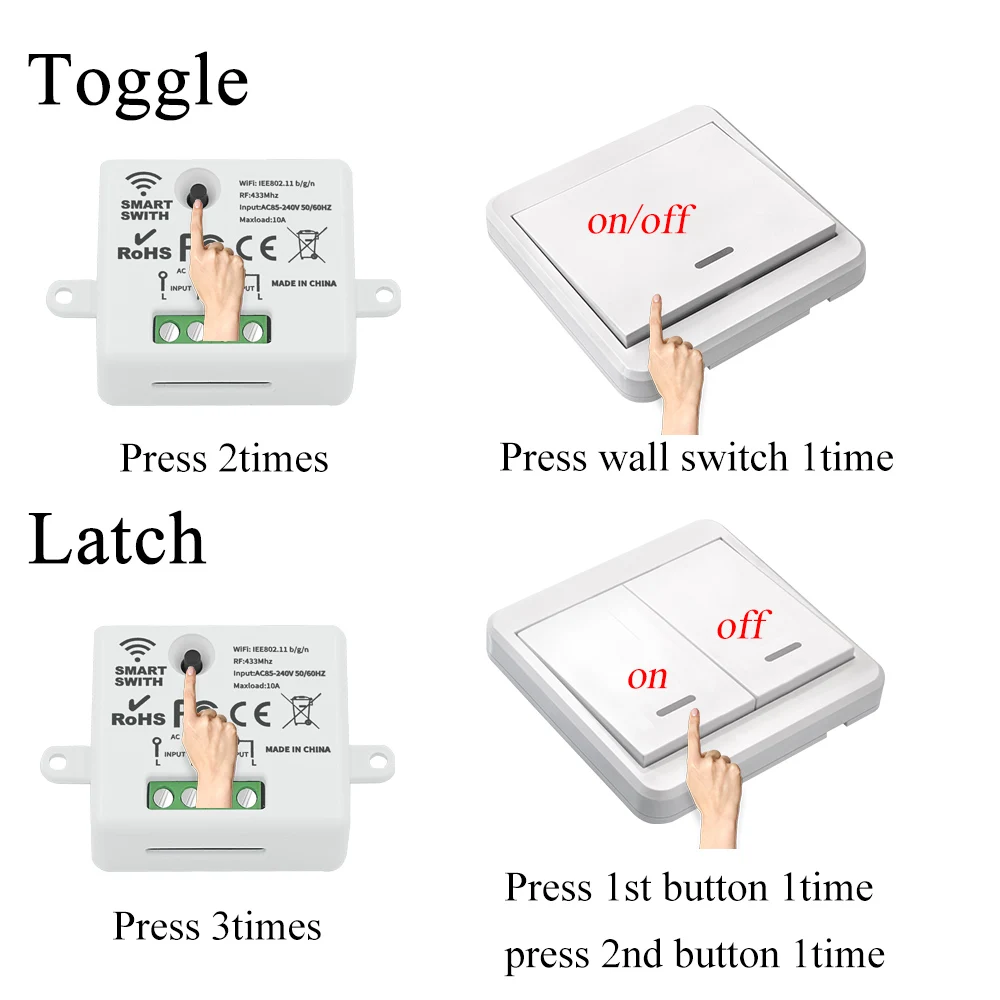

Rf control:two modes can meet your needs : toggle mode and latch modeToggle mode :press wall switch button once,the mini module will work,press same wall switch button again,the mini module will offLatch mode :press wall switch A button once,the mini module will work,press wall switch B button,the mini module will off(in this case,you need at least 2buttons)How to Set up with Wireless Wall Switch:1.press learning button 1time2.press wall switch button 1time,toggle mode succeed1.press learning button 2times3.press wall switch A button 1time,press wall switch B button 1time,latch mode succeed
How to clean rf signal(reset):press learning button 8times to clean the data.after that,all wall switch cannot control it anymore(phone can still control it)If you want to change modes,you need to clean data first.

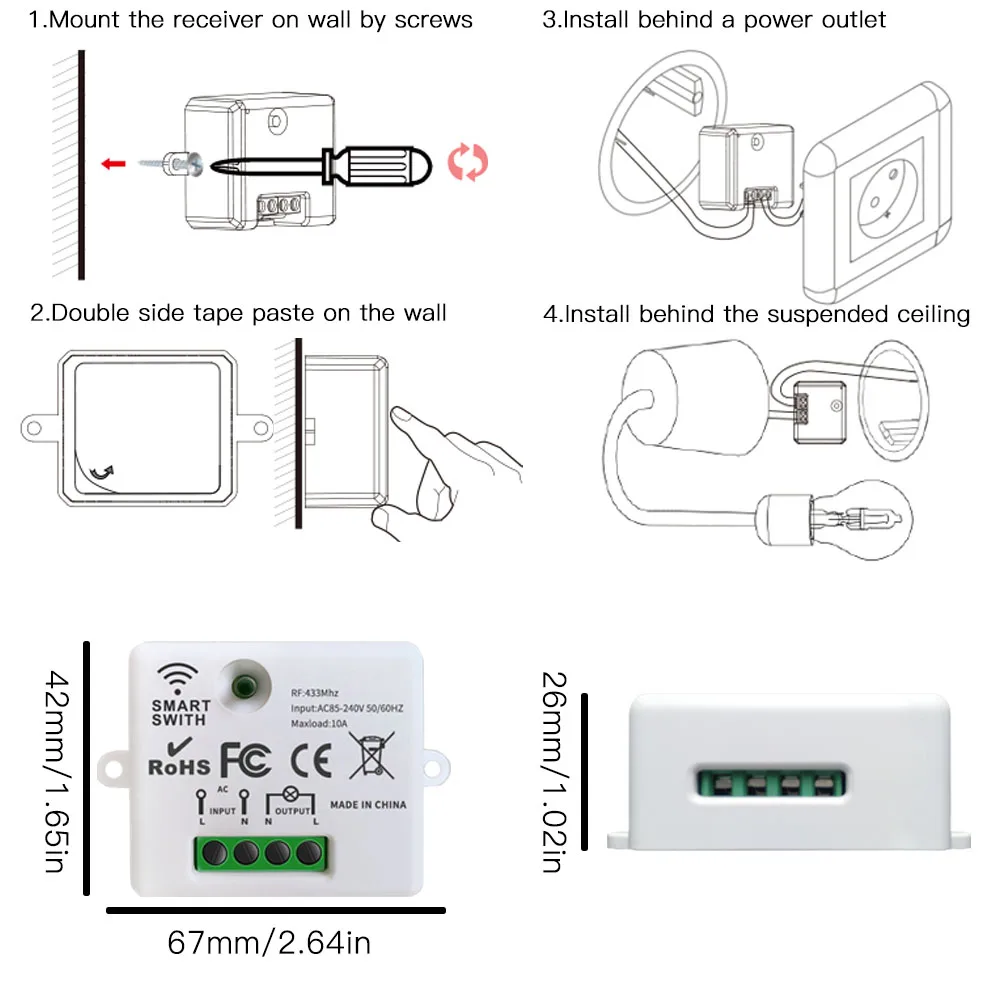

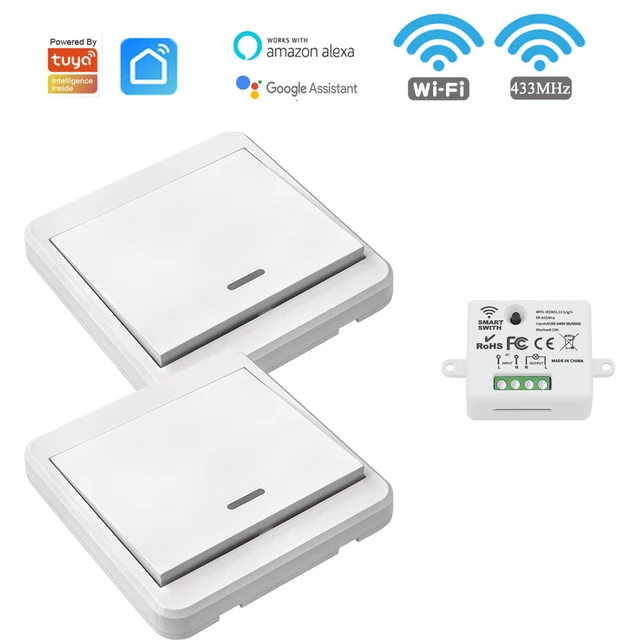

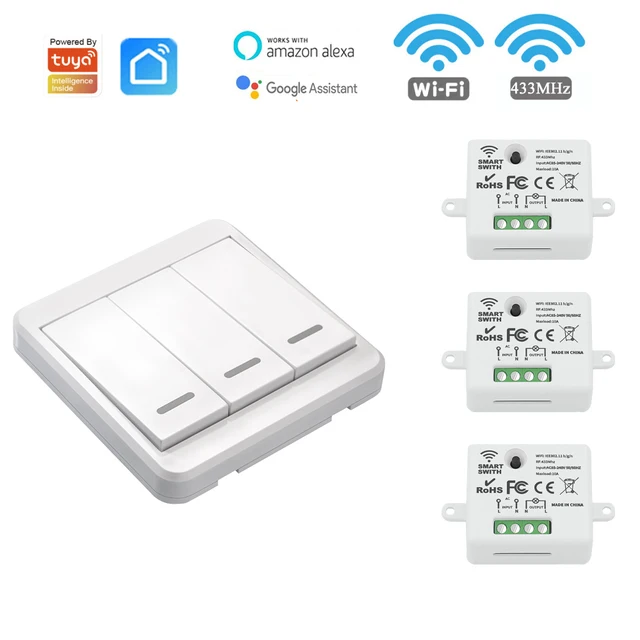

Product Parameter:Wifi+rf receiverWorking voltage :AC 85-250V 50/60HZMax current :10AMax power :less than 2200WCode :1527 learning or 2262 fixedWork with wall switch :Can be controlled by 10pcs wall switchesControl ways :APP control,Voice control,Rf control,Manual controlAppliance :LED,Lamp,Ceiling Light,Crystal Light,Wall lamp,floor lamp,etcRF wall switchBattery :1pcs 27A12V(Not include)Code :1527 learning codeFrequency :433MHzMaterial :PlasticFeature :Has indicate lightFeature2 :Has double side types and screwsProduct Detail:1.Mount switch on the wall by screws2.Double side tape pasted on the wall3.Install behind a power outlet/socket4.Instanll behind the suspended ceilling lamp

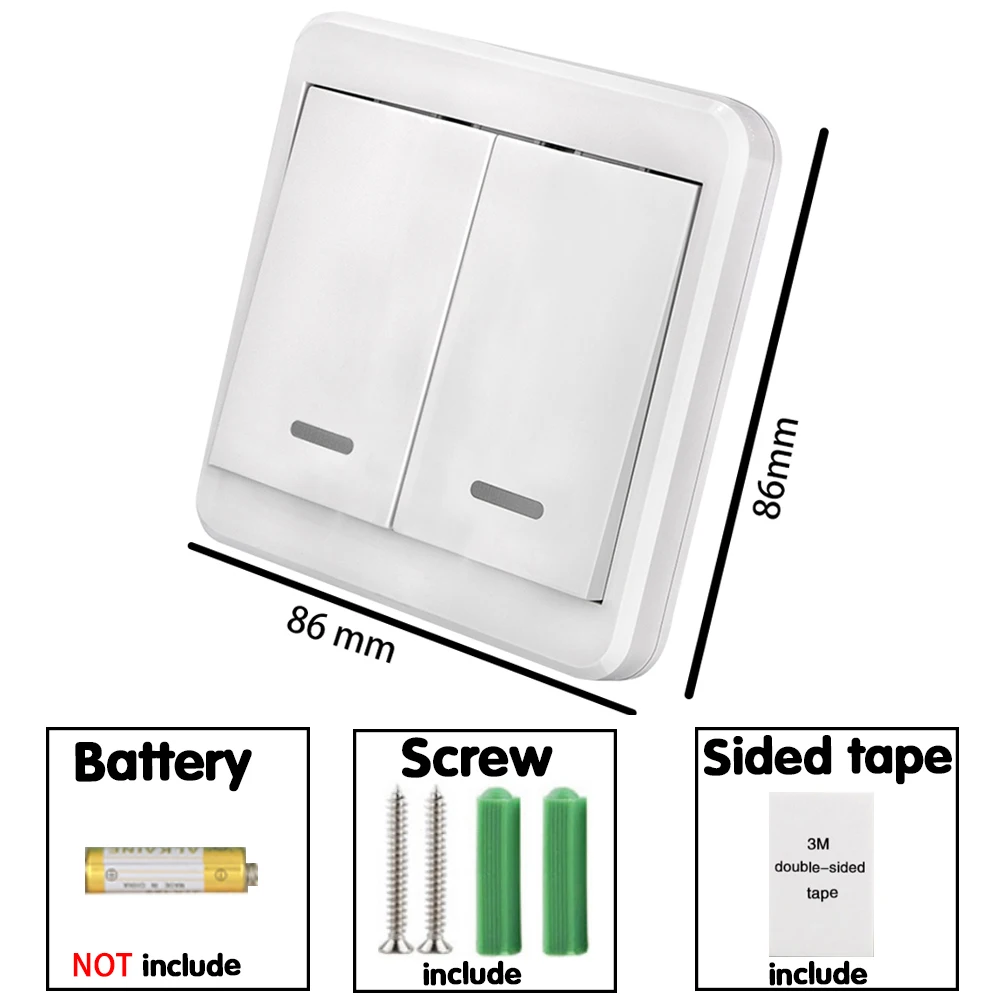

Wall switch has screws and double side tape
Package include:Wifi+rf switch: box,Product manual in englishWall switch: box,2pcs screws,and 2pcs double side typesQ and A:1.Can one module be controlled by multi cellphones?Yes.Of course.Our switch support family sharing.2.Can i use a switch on the light,and use my phone to cff the light?yes,of course.The switch and phone both can control this relay module.They can work well perfectly.3.When the power off and suddenly comes again,does the lamp/device light automaticly?You can set up this status in your phone.Depends on your needs4.My device has added successfully but stays offline,what should i do?The device need 1-2 min to connect with your router nad internet.If it stays offline in a long time,led blinks quickly,that means failed to connect with router.5.What kind of battery does this wall switch need?This wall switch needs 1pcs 27a12v battery.6.Do you have a wholesale price?Yes,please contact with us,We will give you the best price.7.Can i use many wall switch to control one module?Yes,one module can be controlled by almost 10pcs wall switchesIf there are many Wifi products in your family,the wifi speed will decrease.That is a feature about wifi.One wifi router can work with almost 20-30 devices.Please contact with us if you have any questions.Thank you.
