Surveillance Cameras>>>Security & Protection
Brand Name BOAVISION
Type IP Camera
Supported Operating Systems windows 10
Supported Operating Systems Windows 7
High Definition 5.0 Megapixels
Lens (mm) 2.7-13.5mm
Style Dome Camera
Certification CE
Connectivity IP/Network Wireless
Origin CN(Origin)
Installation Side
Wall Bracket Side
Power Consumption(W) Day:<3W. Night:<12W
Color White
Minimum Illumination(Lux) 0.05Lux /0 Lux(IR on)
Sensor CMOS
Megapixels 5MP
Sensor Brand SONY
Special Features Waterproof / Weatherproof
Storage None
Alarm Action FTP Photo
Alarm Action Email Photo
Alarm Action Local Alarm
Video Compression Format H.264
Video Compression Format H.265
Power Supply Normal
TF Card None
IR Distance(m) IR 60m
is_customized Yes
Power Supply(V) DC 12V
Model Number HX-HD20M28AS / HX-HD50M28AS/HX-4G50M28AS
Viewing Angle 75°
Technology Pan Tilt Zoom
Dimensions (L x W x D)(mm) 175*115*110mm
Supported Mobile Systems ios
Supported Mobile Systems Android
Network Interface Wi-Fi/802.11/b/g
Audio Output G.726/G.711
Item Name 1080P 5MP Mini PTZ WIFI Human Auto Tracking IP Camera
5MP Processor Sensor HI3516EV300+IMX335
Auto Tracking Humanoid Tracking
Effective pixels 2MP(1920x1080) / 5MP(2560x1920)
2.7-13.5mm Lens 5X Optical Zoom Lens
LEDs 6pcs Array LEDs + 2pcs White Supplement Light
Night Vision 60m IR Night Vision
Support Two Way Audio Talk Back(With Speaker)
Housing Material ABS Plastic +Metal Waterproof IP66
1 TF card slot Up to 128G(Don't included TF Card)
Support iPhone,Android APP CamHi/CamHipro
Sensor Size
5MP WIFI NO TF Card
5MP WIFI Add 32G TF
5MP WIFI Add 64G TF
5MP WIFI Add 128G TF
5MP 4G NO TF Card
5MP 4G Add 32G TF
5MP 4G Add 64G TF
5MP 4G Add 128G TF
Ships From
China
GERMANY
Russian Federation
SPAIN
Plug Type
EU plug
US plug
AU Plug
UK Plug
Focus
2.7-13.5mm

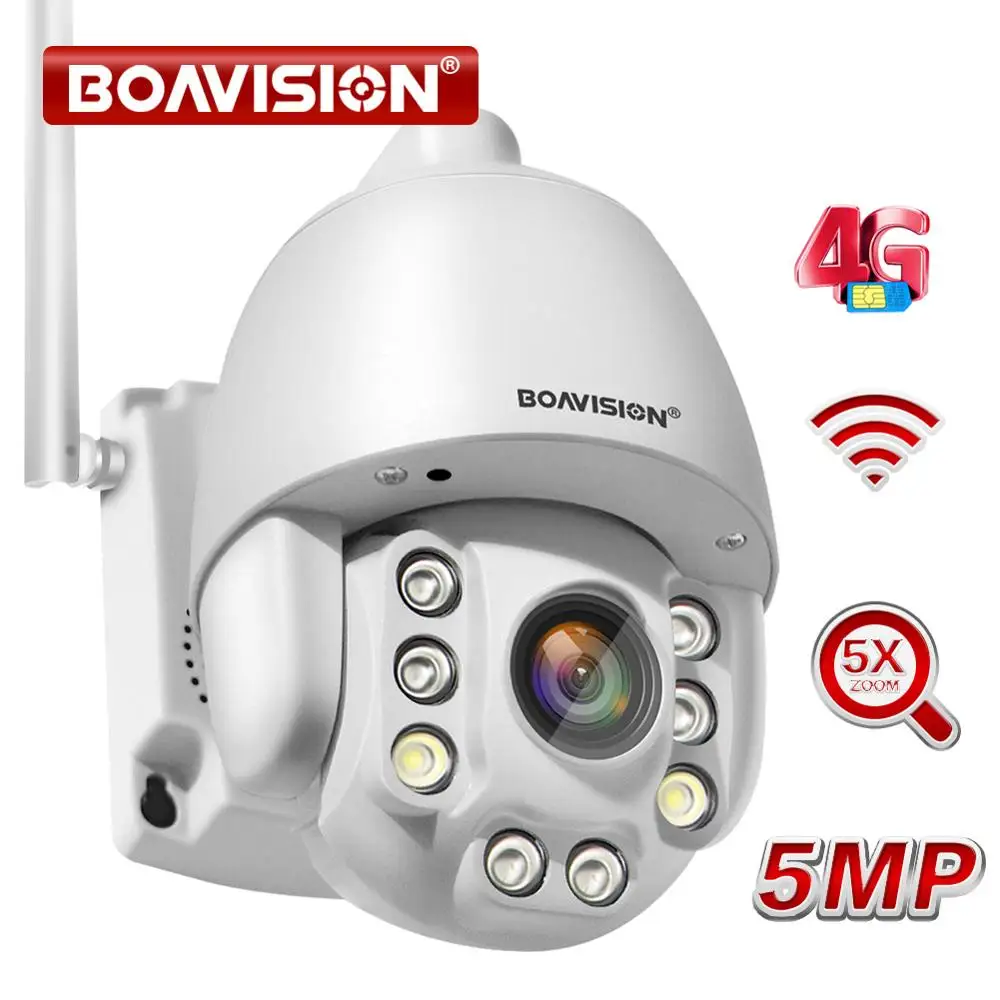

1080P / 5MP WIFI/4G 2.5 Inch AI Auto Tracking Super Mini PTZ Speed Dome WIFI IP Camera
5X Zoom Lens: Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
Specifications Selection
Support HD 1080P / 5MP High Quality Resolution WIFI/4G(Optional)
Full HD Resolution
HD 1080P(1920X1080)/5MP(2560x1920)

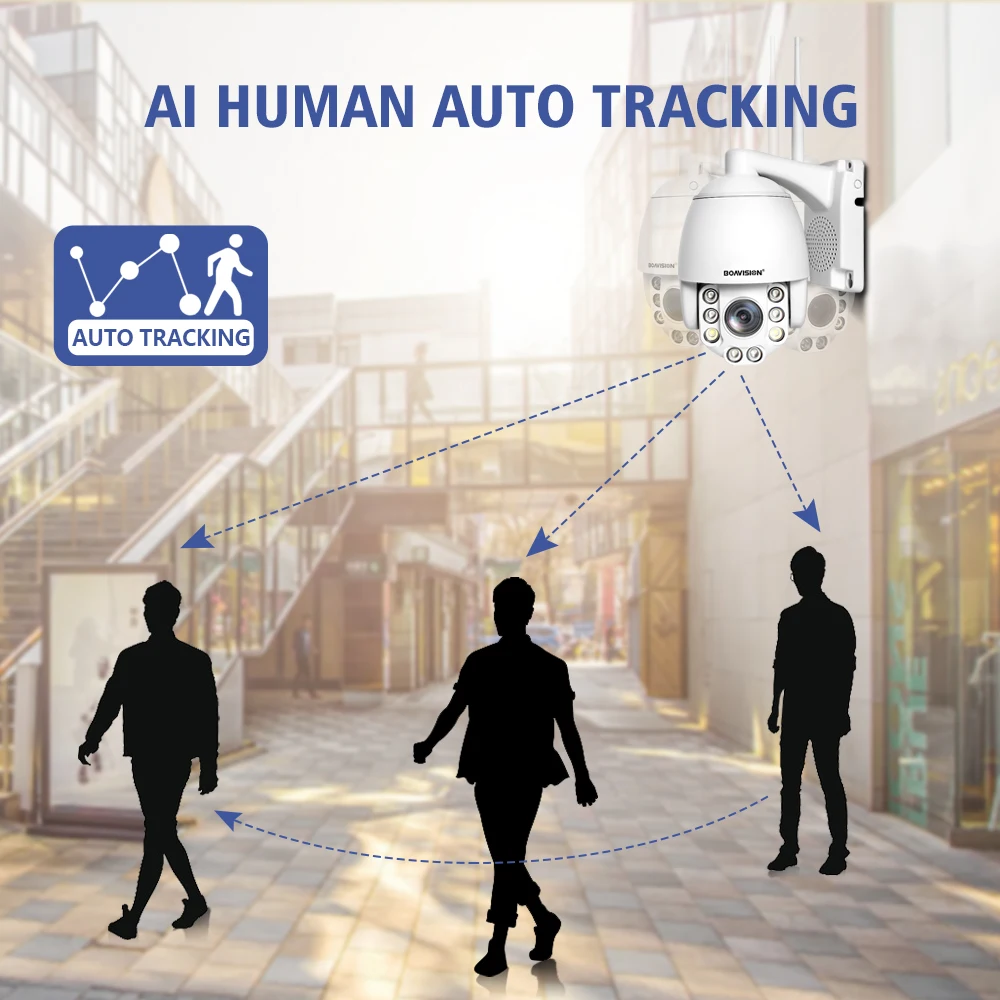

AI Human Auto Tracking
Human Detection algorithm reduces false motion detection alerts by filtering for human features. Smart Tracking allows the camera to track objects in motion. When enabled the camera will begin to automatically record and follow the object in motion.
Usage Scenarios
Can Be Used A Variety Of Environments
Support 8 Preset Points
Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
Support P2P Multi-Platforms Remote Monitoring
Support P2P, View & Anywhere & Anytime.Provide Android & IOS APP (CamHi/CamHipro) And Professional CMOS PC Client Software Windows/Mac
Two Way Audio Talk Back
Built-in Microphone, Loud Speaker, Support Two Way Audio Talk Back
Pan Tilt Rotation
Horizontal: 355 Deg & Vertical: 90 Deg
Waterproof IP66
ABS Plastic + Metal Housing Material, Outdoor Use
Alarm Linkage
Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos To The FTP Server,Alarm Write Pictures And Videos To The TF Card, Alarm Message Push
60m Night Vision
6Pcs Array IR LEds Or 2Pcs White Supplement Light.
Day And Night Vision
6Pcs Array IR Leds Or 2Pcs White Supplement Light.
5X Optical Zoom Auto Focus Lens
2.7-13.5mm 5X Optical Zoom Auto Focus Lens
Full Color Night Vision
High Definition Night Vision Effect
Support TF Card, Upto 64G (Not Included )
The TF Card Slot Is Designed On all To TF Card
2.5 Inch Super Mini Size
Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
Packing List
Features :
Support AI Human Feature Tracking
5X Zoom Auto Focus Lens(2.7-13.5mm5X Optical)
Support Wifi/4G (Depends on the models you choose,See Detail on Specification )
Support HD 5MP High quality resolution
6pcs Array Infrared LEDs+2pcs White light Floodlight. 60m IR Night Vision
Built-in Microphone&Speaker,Support Two Way Audio Talk Back
Microphone Effective Range 15 Meters
Loudspeaker Effective Range 60 Meters
Support TF card,up to 128G(TF Card Optional Choose)
Pan tilt rotation, horizontal:355° & vertical:90°Ø
Support P2P, view & anywhere & anytime
Elegant outline and easy installation
Provide android & ios APP (CamHi/CamHipro) and professional CMS PC client software
Support 8 preset points , zoom lens status can be saved during the preset
Support Auto Tracking AI Human Detection
Outdoor Use,Waterproof IP65
3 Models For Optional Choose :
HX-HD20M28AS:WIFI 1080P 2.7-13.5mm 5X Zoom Lens
HX-HD50M28AS:WIFI 5MP2.7-13.5mm 5X Zoom Lens
HX-4G50M28AS:4G 5MP 2.7-13.5mm 5X Zoom Lens
Specifications:
Product
HX-HD20M28AS
HX-HD50M28AS
HX-4G50M28AS
Operating system
Embedded Linux OS
Effective pixels
2MP(1920x1080)
5MP(2560x1920)
5MP(2560x1920)
CMOS Sensor
1/2.8"
Lens interface type
M12
Lens
2.7-13.5mm 5X zoom lens
View angle
68.5°-4.2°
Min.illumination
0.05 Lux / 0 Lux(IR on)
Day&Night mode
Auto IR-CUT
Night vision distance
6pcs Array Infrared LEDs+2pcs Floodlight LEDs. 60m IR Night Vision/30M Color Nightvision
Video compression Standard
H.264 Main Profile/H.264 Baseline
Video streaming
Dual streaming
Video resolution
First stream:2560x1920 or 2560x1440
Second stream:800x600 or 800x480
JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176)
Video code rate
32 to 8192Kbps. supports constant bitrate/variable bitrate
Video frame rate
15fps(PAL 50HZ/NTSC 60HZ)
Audio
Audio compression standard: G.726/G.711
Audio code rate: Rate adaptive
Audio Input: Support, built-in Microphone
Audio Output: Support Two Way Audio Talk Back(With Speaker)
Image settings
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
Image enhancement
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction
Audio function
Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker)
Motion detecting
Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage
Alarm send pictures to the specified mailbox,
alarm upload pictures and videos to the FTP server,
alarm write pictures and videos to Micro TF card, alarm message push
Privacy mask
Maximum support 4 users to simultaneously browse
OSD
Support camera name, date and time information superimposed
User management
Supports user and rights management
Simultaneous viewers
maximum support 12 users to simultaneously browse (each stream supports 4 users)
Network protocol
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,
FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
Connection protocol
o-n-v-i-f-compatible 2.1(backward compatible)
Network Support
2.4 GHz to 2.4835 GHz/IEEE802.11b.
802.11g. 802.11n Draft
GSM 900/1800 MHz
UTRA FDD Band I/VIII
E-UTRA FDD Band 1/3/7/8/20/28
E-UTRA TDD Band 38/40/41
Wireless Security
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS
Transmission rate
11b: 11Mbps,11g :54Mbps,11n :135Mbps
Rotation angle
Horizon:0° to 355°. Vertical: 0° to 90°
Horizontal speed
1° to 40°/S
Vertical speed
1° to 20°/S
Preset
Support 8 preset points , zoom lens status can be saved during the preset
Auto Tracking
AI Humanoid Dection Auto Tracking
Power interface
1 5.5mm power interface
Ethernet
1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface
TF card Slot
1 TF card slot. up to128GB(TF Card Optional Choose)
Reset button
Support(On the side of the TF Card Slot)
Power supply
DC 12V 2A
power
Day: 3W; Night: 12W
Operating temperature
-20 to +60 degree
Operating humidity
10% to 95%
Material
Outdoor Use,Waterproof IP65
Installation
Rack mounting
Size(mm)
175*115*110mm
Weight(kg)
0.9kg
Package Size(mm)
250*250*100mm
Package Weight(kg)
1.1kg
Packing List:
1*2.5 Inch AI Auto Tracking Dome Speed IP Camera Built-in Microphone&Speaker(TF Card Optional Choose)
1*DC 12V 2A Power Supply
1*CD & Quck Start Manual
1*Screws Bag
1*Antenna
